Curved on plan

Designed to follow a curved wall feature.

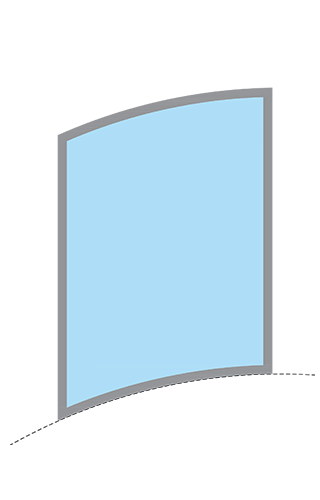

  • Fixed Panel

    Selectaglaze curved on plan secondary glazing - fixed light
    Consideration needs to be given for cleaning access.
    Unit Options Min Radius
    Heavy Duty 42 (FL) 750mm

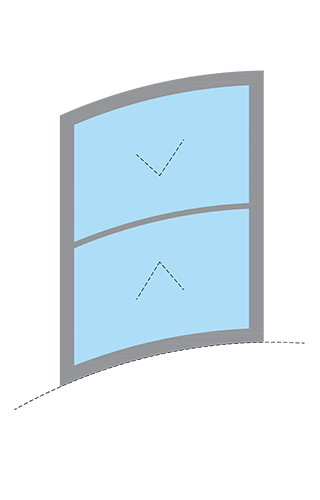

  • Vertical Slider

    Selectaglaze curved on plan secondary glazing - vertical sliding
    A shaped timber subframe is required to ensure a good seal and a minimum 75mm cavity is needed to assist with cleaning of the sashes. There is a width restriction dependent on the radius.
    Unit Options Min Radius
    Mid-range 25 (VS) 1200mm

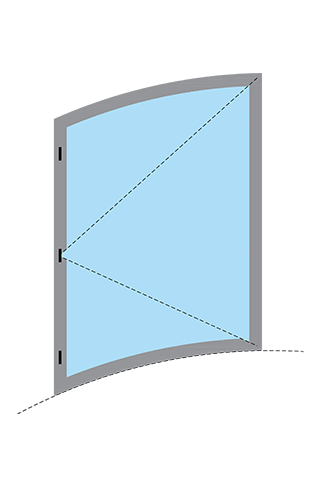

  • Hinged Casement

    Selectaglaze curved on plan secondary glazing - hinged casement
    A shaped timber subframe is required to ensure a good seal and the hinged unit can be set close to the outer window. There is a width restriction dependent on the radius.
    Unit Options Min Radius
    Heavy Duty 41 (HC) 1800mm

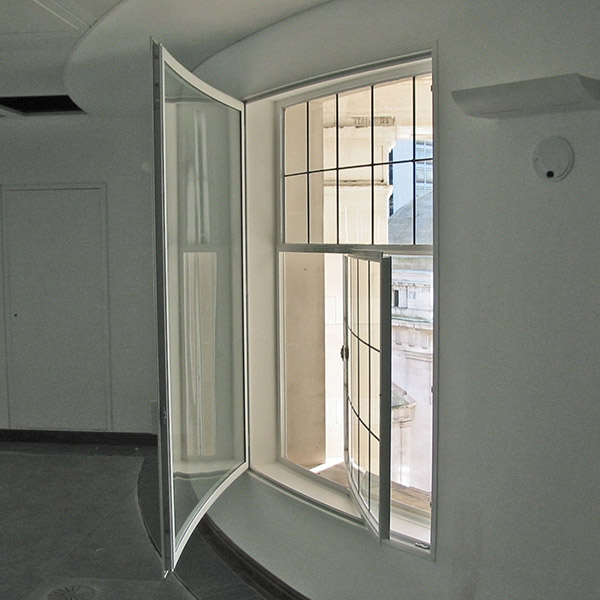

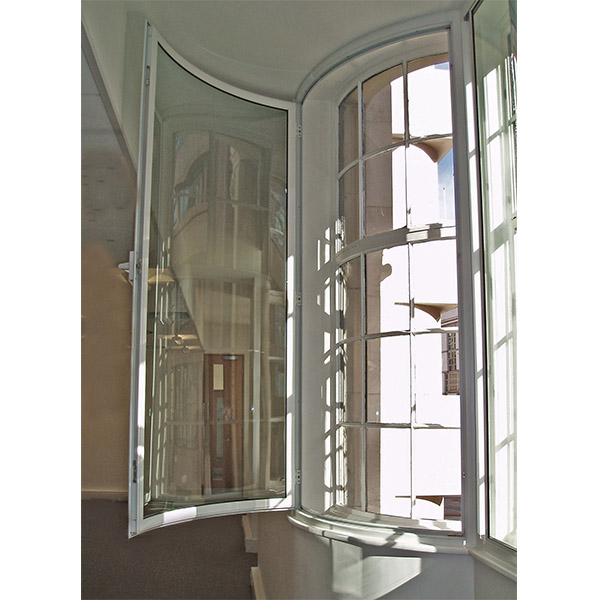

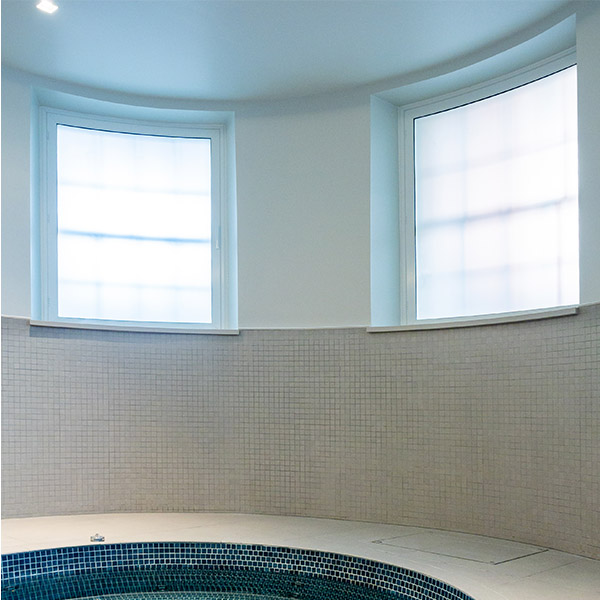

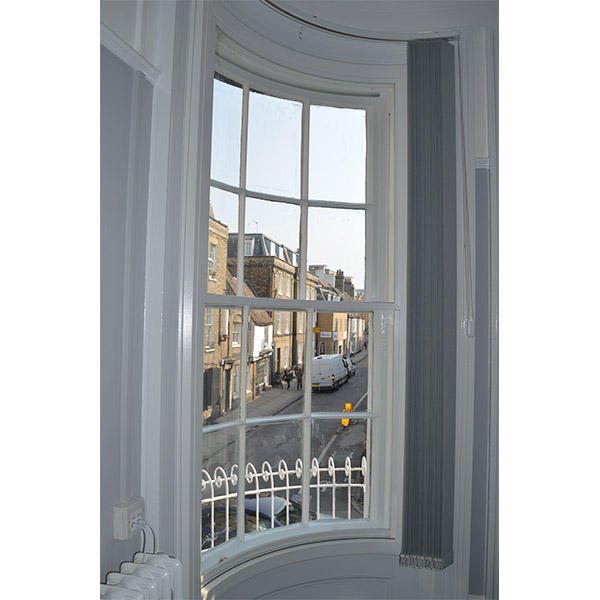

Curved on plan secondary glazing Baskerville House Curved on plan secondary glazing Kenmare House Curved on plan secondary glazing Kidderpore Hall Curved on plan secondary glazing Kings House
