St Patrick's Church, Bolton

Noise reduction internal secondary double glazing for St Patricks Church Bolton

St Patrick's Church

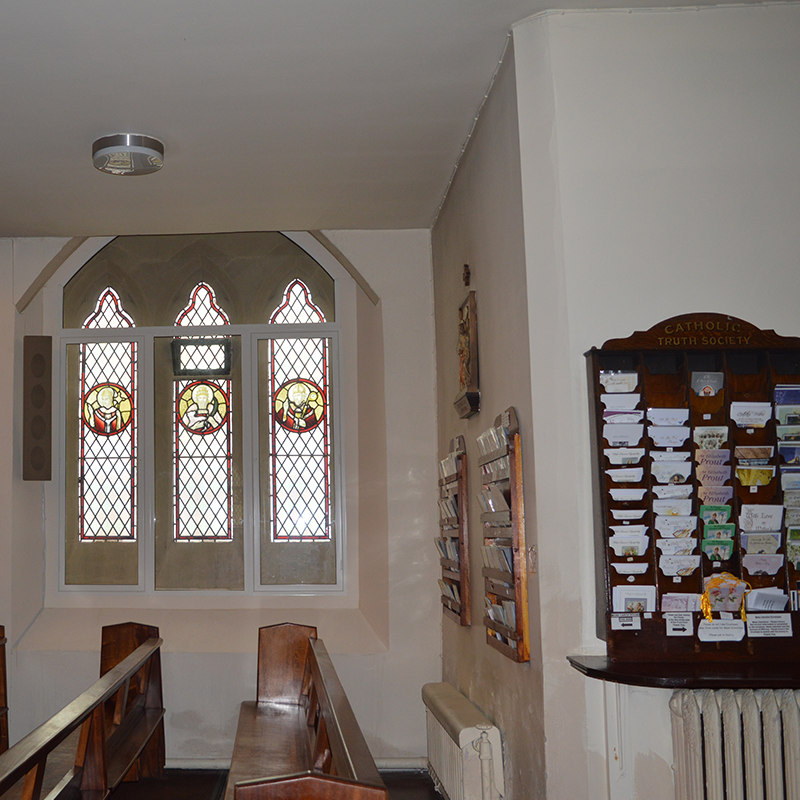

The congregation can once again, worship and contemplate without interruption in this cavernous Grade II Listed Church, following acoustic adaptations to block the noise from the new Bolton Trinity Interchange next door. With the new transport hub on the opposing corner of the road, the hum of stationary busses reached in the region of 70-80dB, which could be heard in the church causing a nuisance to the parishioners. A total of 7 windows were treated with acoustic internal secondary double glazing, with a good cavity to reduce the noise ingress. The tall clerestory gothic arches received Series 41 double side hung casements transom coupled to Series 46 fixed lights. A window at the back of the church near the entrance required S41 side hung casement’s mullion coupled side by side with a transom to couple a Series 46 fixed light above. However, the chancery window at 4.3m (h) x 3m (w) was made up with four different units: Series 80 3-pane horizontal slider transom coupled to three Series 41 mullion coupled curved casements above. When now inside the church, you would never know there is a bus interchange just outside; the acoustic secondary glazing treatment has worked miracles.

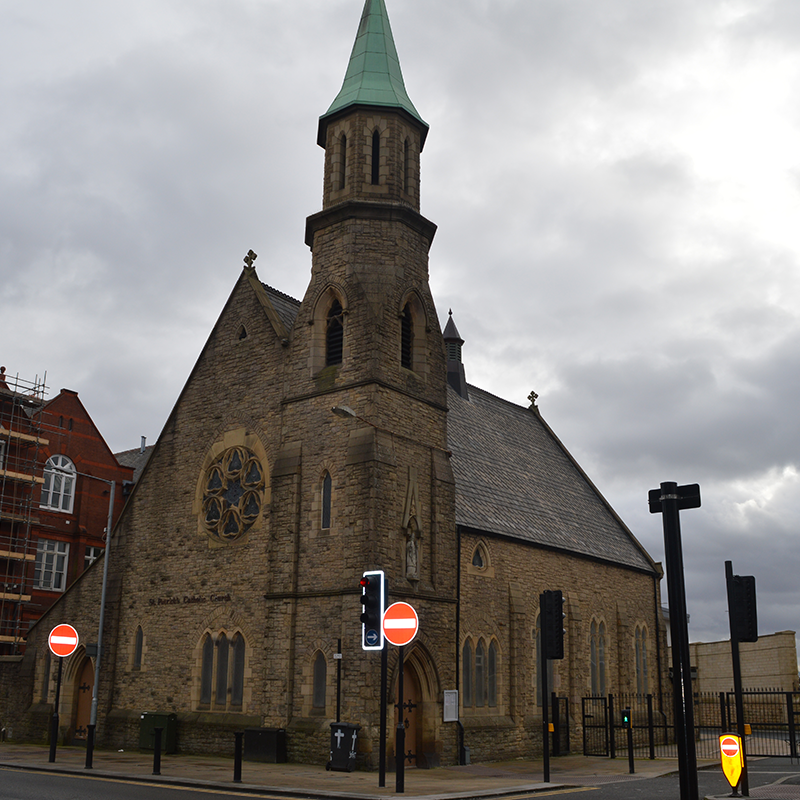

External view of St Patrick's Church in Bolton

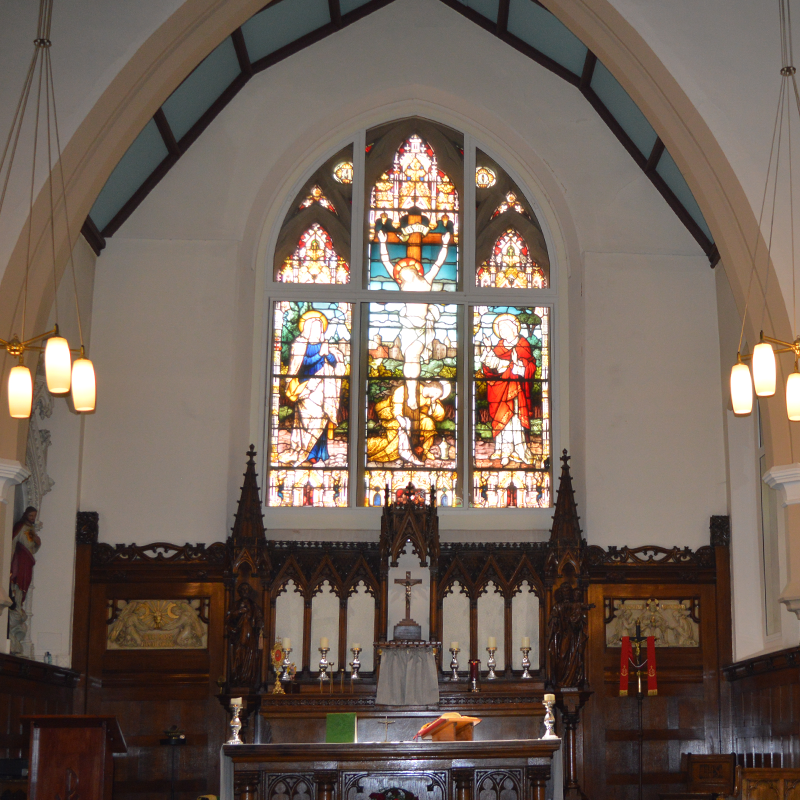

The Clerestory window at St Patricks church in Bolton, with the build up for four difefrent Selectaglaze secondary glazed units

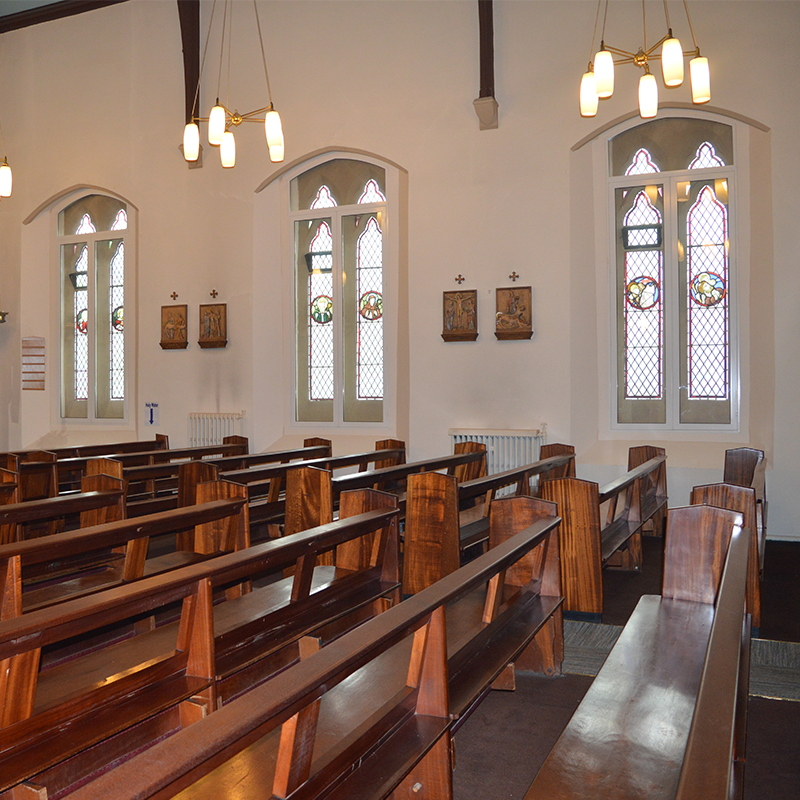

The gothic arched clerestory windows in St Patricks Church with Selectaglaze acoustic secondary glazing
Gothic arched window at St Patricks Church with Selectaglaze Series 41 side hug casements transom coupled to Series 46 curved fixed light secondary glazing for acoustic insulation
