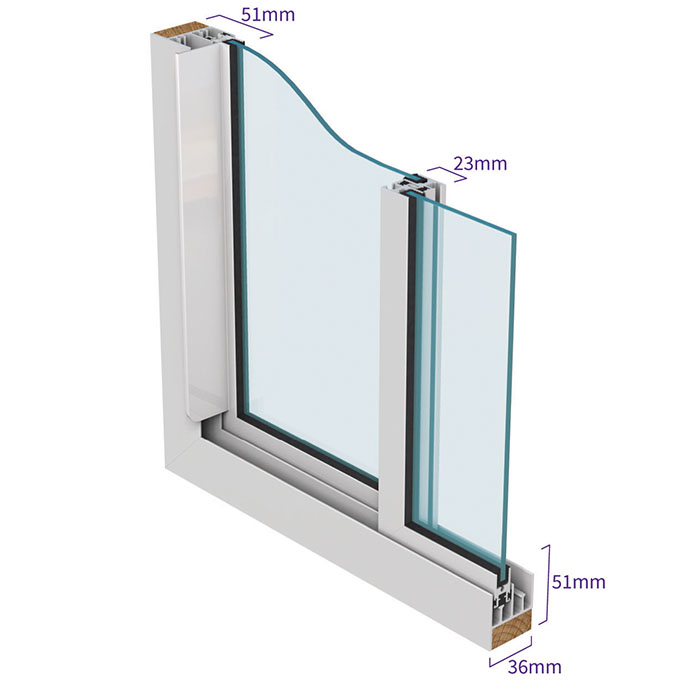

A versatile horizontal sliding system in 2, 3 and 4 pane options that provides easy access to the external window for ventilation. Slim profiles make it suitable for heritage properties.

Recommended maximum frame sizes

  Height (mm) Width (mm)
2 Pane 2200   2800
3 Pane 2200 4200
4 Pane  2200 4900

Glazing Range

4 mm to 6.8 mm

Frame Finishes

Standard white (HIPCA semi-gloss). Any standard powder paint, wood grain finish or anodised finish to order.

Gallery

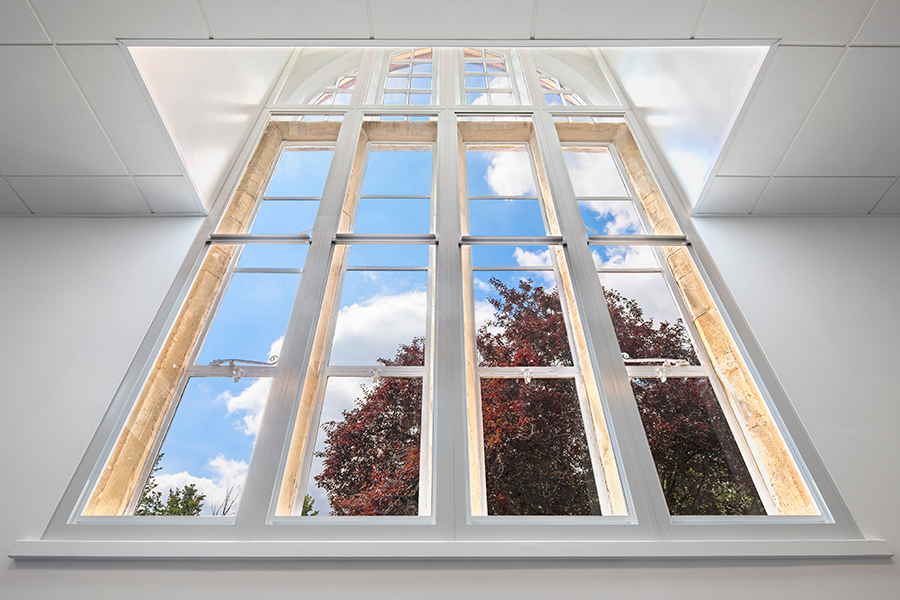

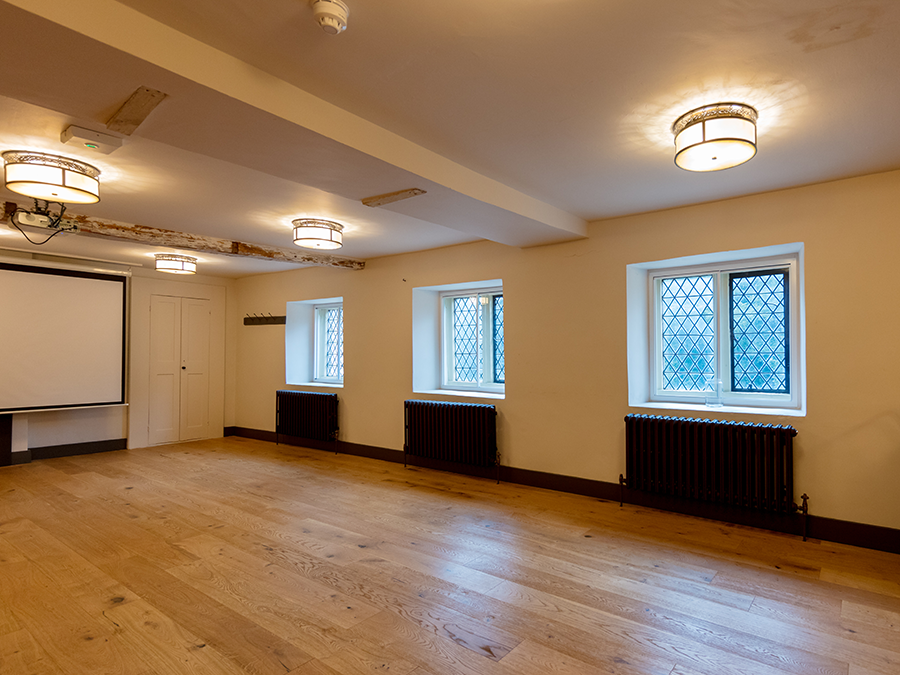

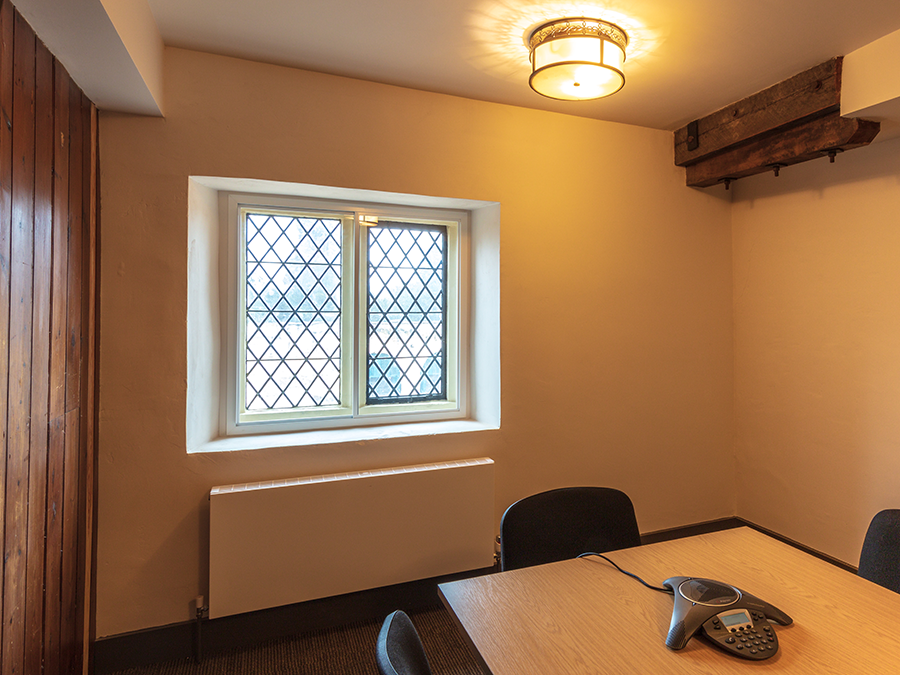

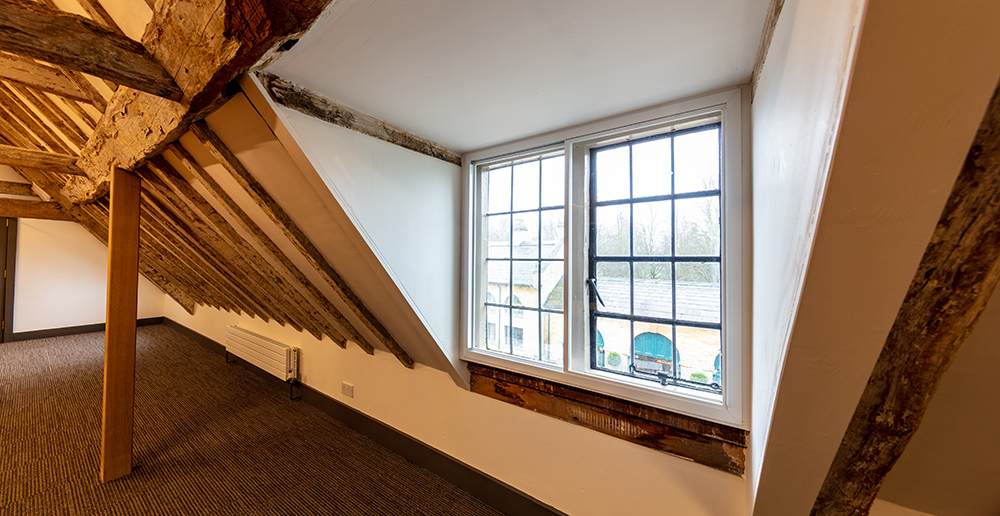

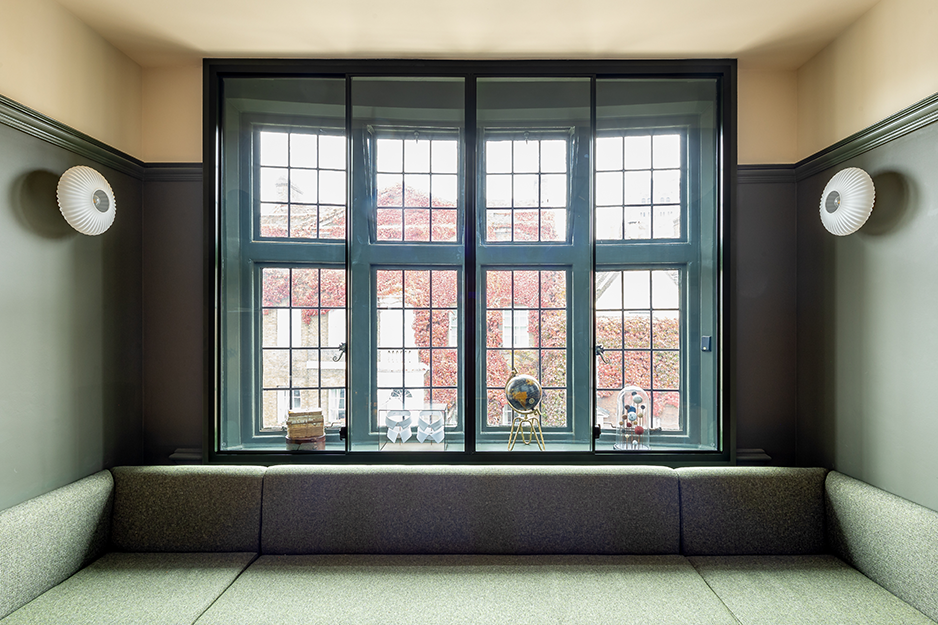

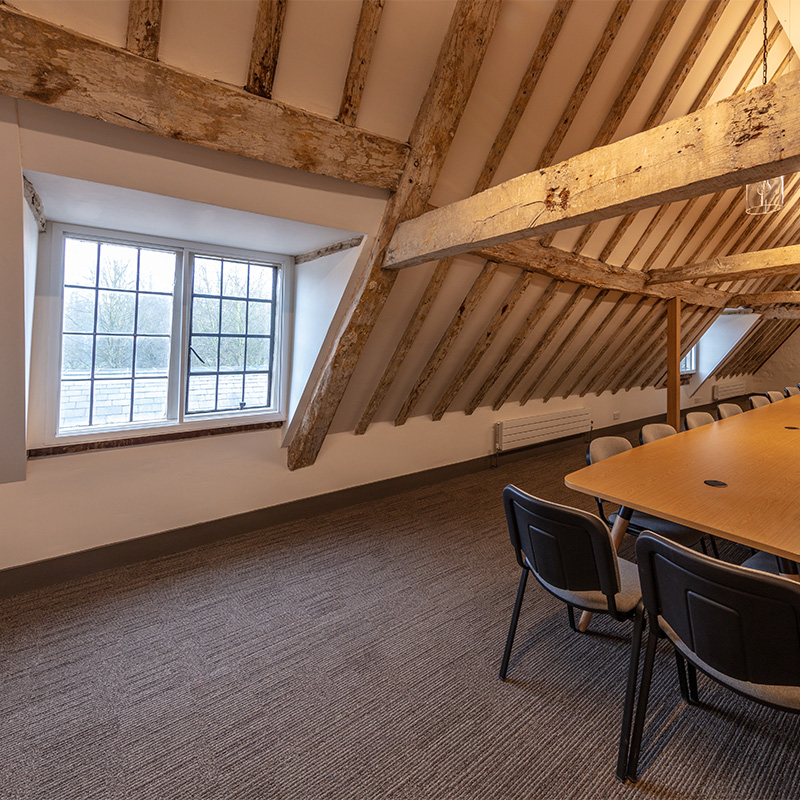

Horizontal Series 10 Slider image Secondary glazing horizontal sliding windows Series 10. Grade 2 Listed House in Peterborough Selectaglaze Series 10  Secondary glazing Horizontal Sliding Windows, Thermal insulating secondary double glazing Secondary windows Horizontal Sliders Series 10 Horizontal Sliders. Grade 2 Listed Peterborough Property Secondary glazed windows Series 10 Horizontal Sliders, Grade 2 Listed Residential House Peterborough Secondary double glazing Series 10 Chantrey House  horizontal sliding units Secondary horizontal sliding Series 10 Chantrey House Selectaglaze series 10 3 pane horizontal slider in an apartment at Old School Court, Tottenham Thermal upgrades to a meeting room at Belton Stables with Selectaglaze secondary glazing Series 10 horizontal slider Discreet and slimline Series 10 secondary glazing by Selectaglaze at Grade I Listed Belton House

Styles available

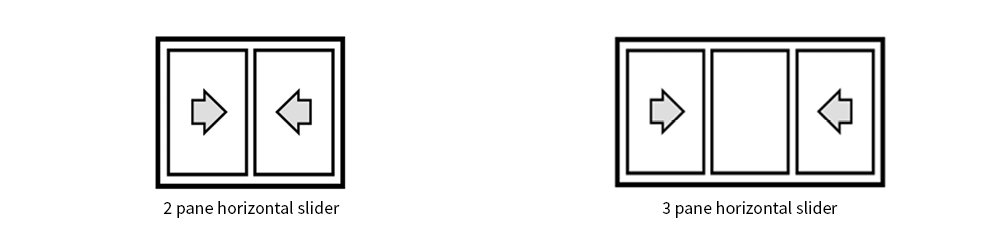

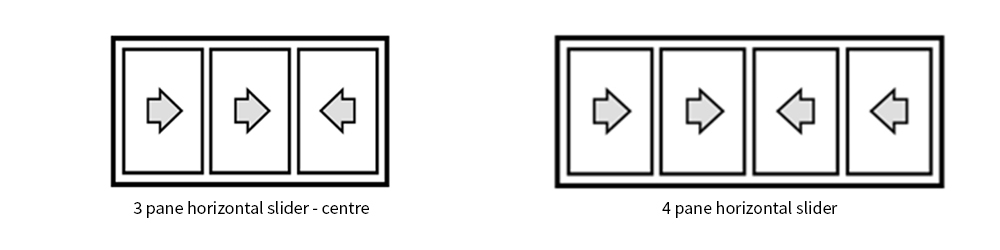

Selectaglaze horizontal sliding styles 2 and 3 pane Horizontal sliding 3 pane centre and 4 pane

Section diagrams

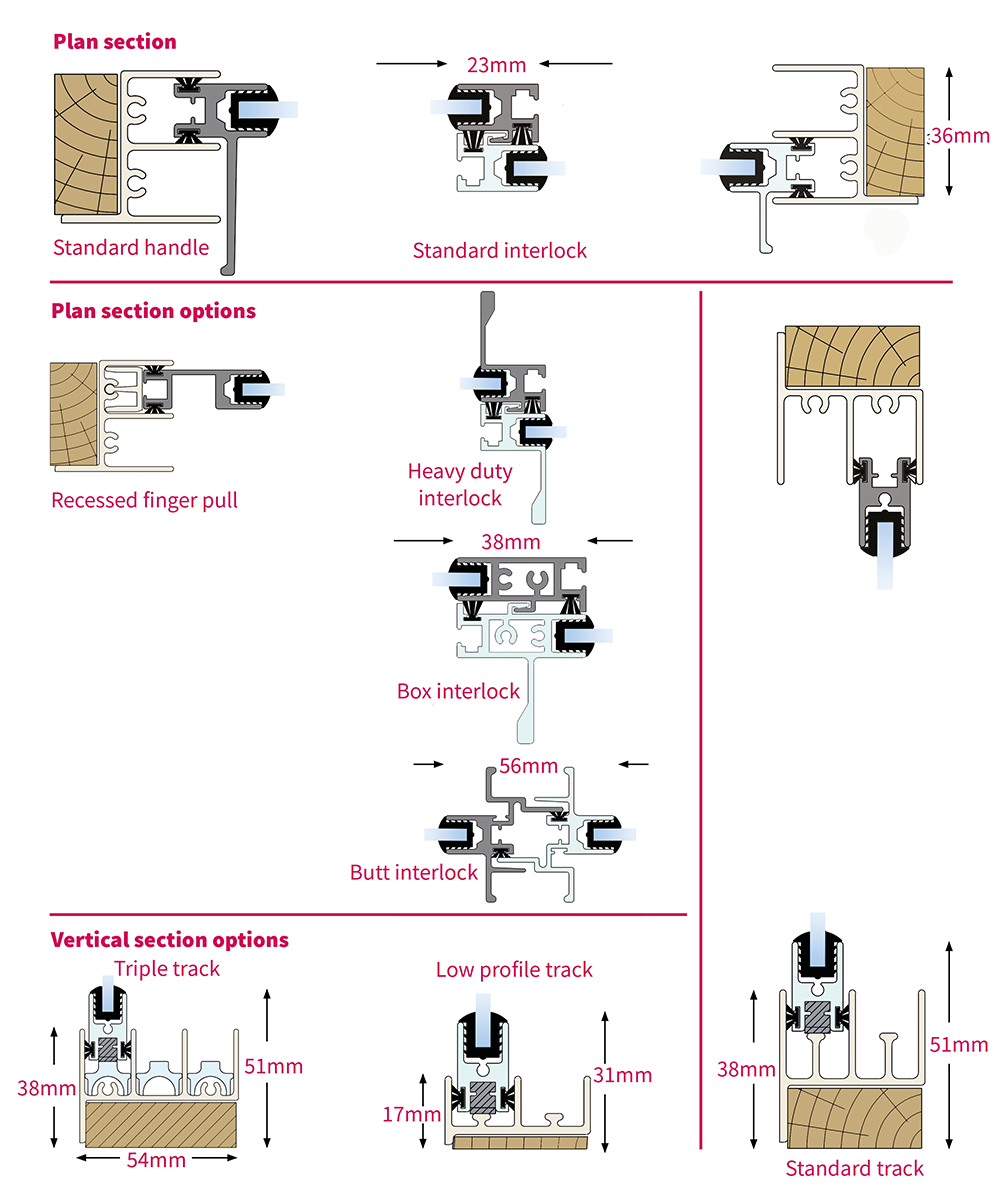

Selectaglaze secondary glazing Series 10 slimline horizontal sliding section diagrams

Warmer

INSULATION (U-VALUE) CALCULATED IN COMBINATION WITH A PRIMARY WINDOW AT BRFC SAMPLE SIZE 1430MM X 1230MM
GLASS METAL PRIMARY WINDOW      TIMBER PRIMARY WINDOW
 4 - 6.8mm  2.91 W/m2K  2.63 W/m2K
 4 - 6.8mm low-E       1.94 W/m2K  1.81 W/m2K

Quieter

NOISE INSULATION MEASURED IN COMBINATION WITH A PRIMARY WINDOW
GLASS               50MM CAVITY       100MM CAVITY       200MM CAVITY
 4 - 6.4 mm     39 dB (Rw) 43 dB (Rw)   45 dB (Rw)
 6.8 mm  40 dB (Rw)  44 dB (Rw)  46 dB (Rw)

Safer

SECURITY PERFORMANCE (MAXIMUM ACHIEVABLE, CONTACT SELECTAGLAZE FOR SPECIFICATION REQUIREMENTS)
  TEST STANDARD
INTRUDER          Non certified security (with standard lock options)
BLAST ISO 16933 EXV 45 (2HS and 3HS only)
BALLISTIC N/A
FIRE N/A
  • H1 Integral Finger Pull
  • H3 Recessed Finger Pull
  • L1 Shoot Bolt
  • L2 Fitch Catch (Lockable)
  • L4 Plunge Lock
  • L13 Sliding Latch
ITEM FINISHES
H1 Integral Finger Pull H3 Recessed Finger Pull        Match frame colour

L2 Fitch Catch (Lockable) White Black Polished chrome Gold Brushed steel

L4 Plunge Lock Silver

L13 Sliding Latch Match frame colour

Looking for more?

To view the coupling guide and other documents available, please visit the technical downloads.

Go to technical downloads
