A heavy-duty horizontal sliding system designed to treat very large windows and sliding doors. Thicker glass options provide high levels of noise insulation and with a secure lock option it has accreditation to Secured by Design.

Recommended maximum frame sizes (mm)

  Height (mm)  Width (mm)
2 PANE     2800     3600
3 PANE 2800 5400

Glazing Range

6 mm to 12.8 mm

Frame Finishes

Standard white (HIPCA semi-gloss). Any standard powder paint, wood grain or anodised finish to order.

Gallery

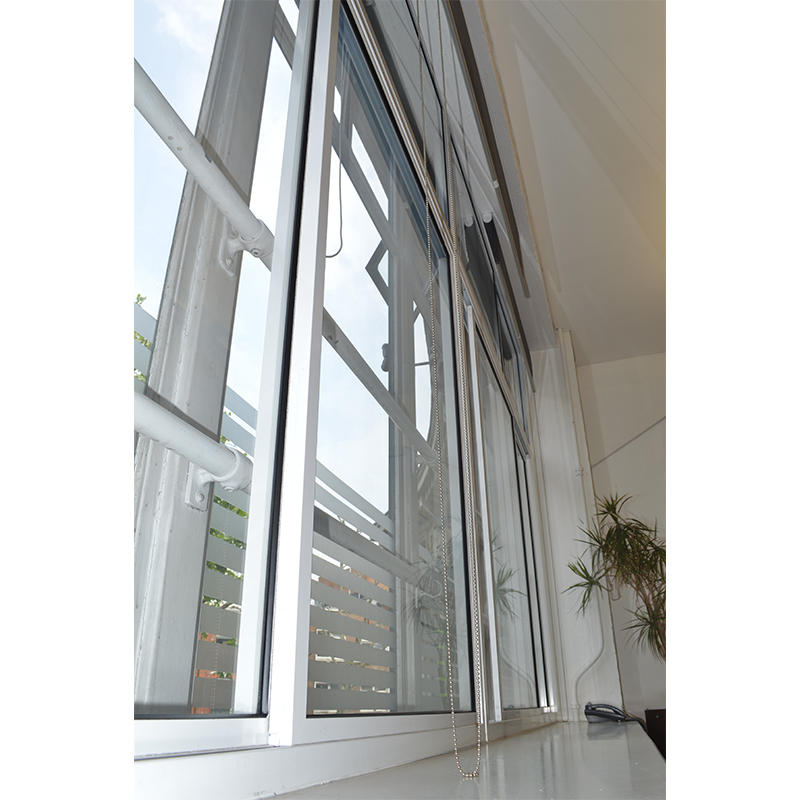

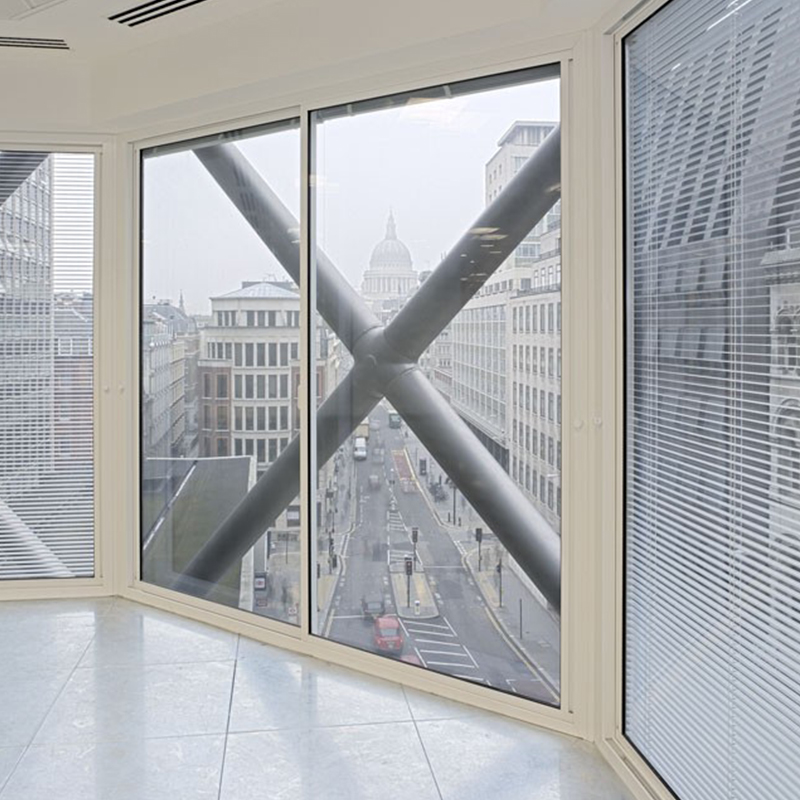

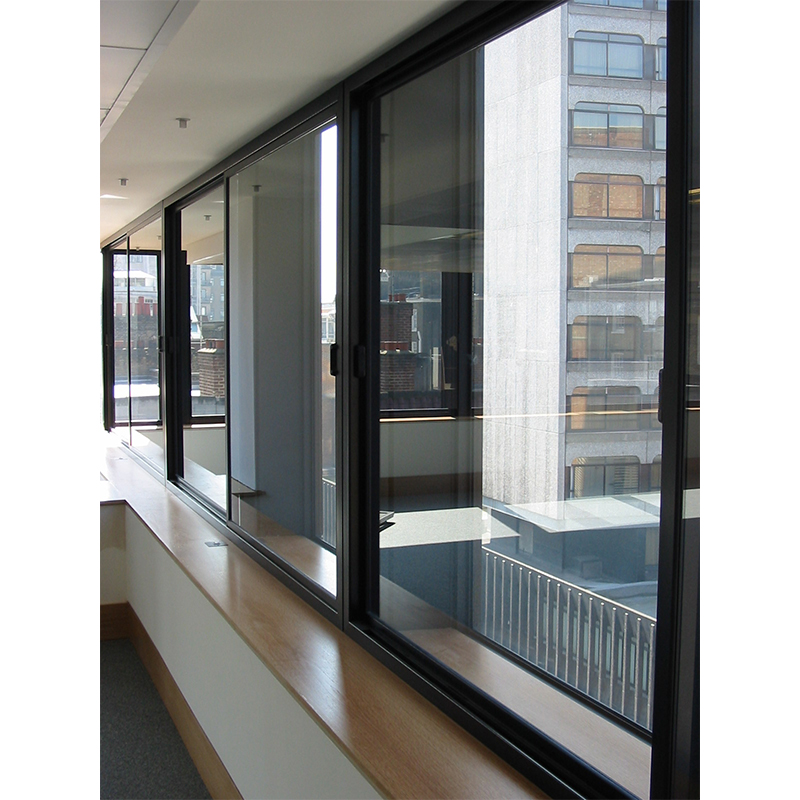

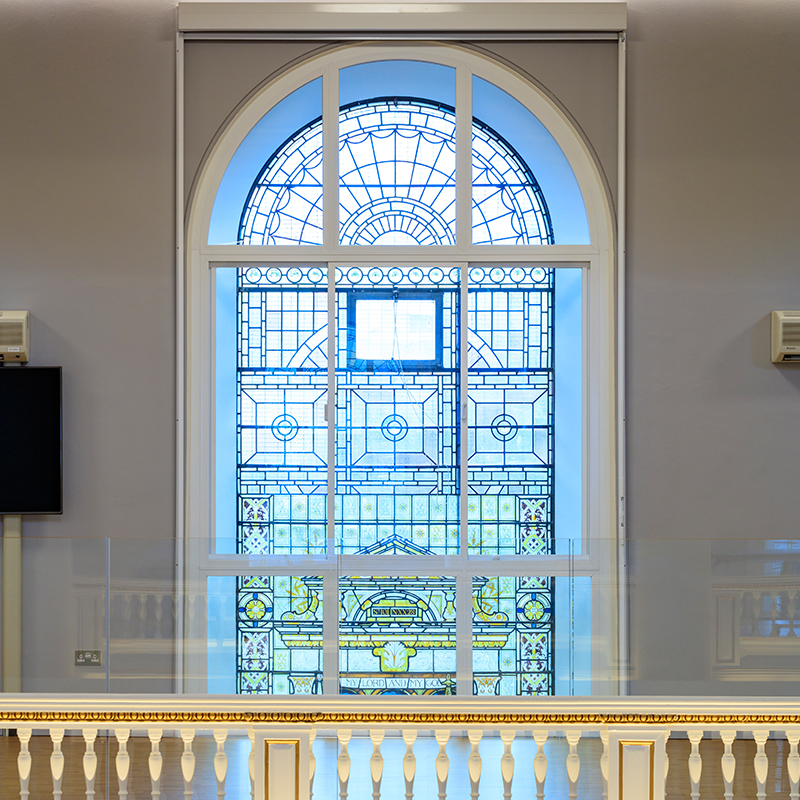

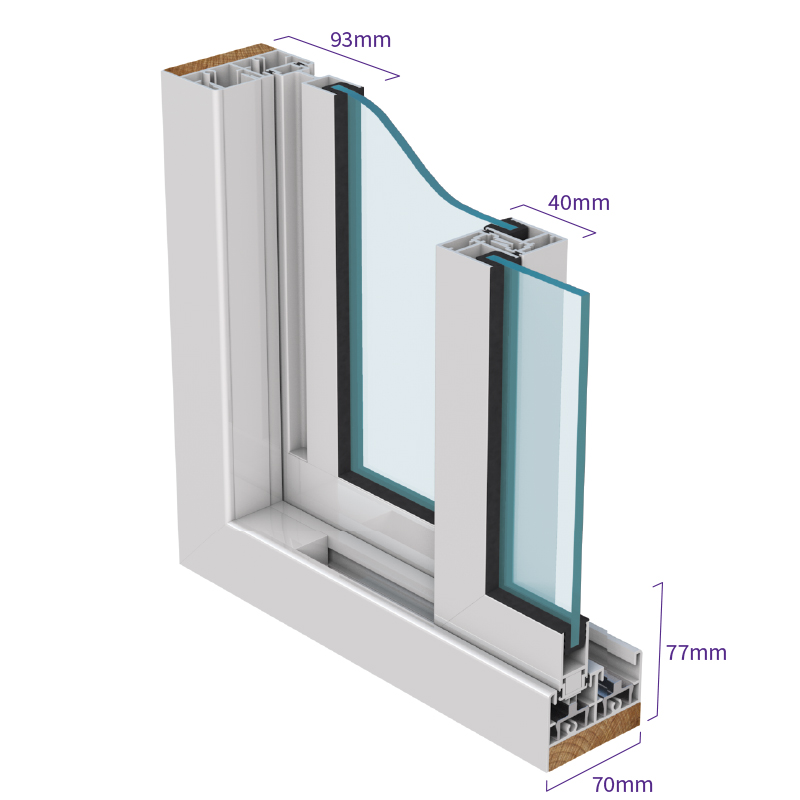

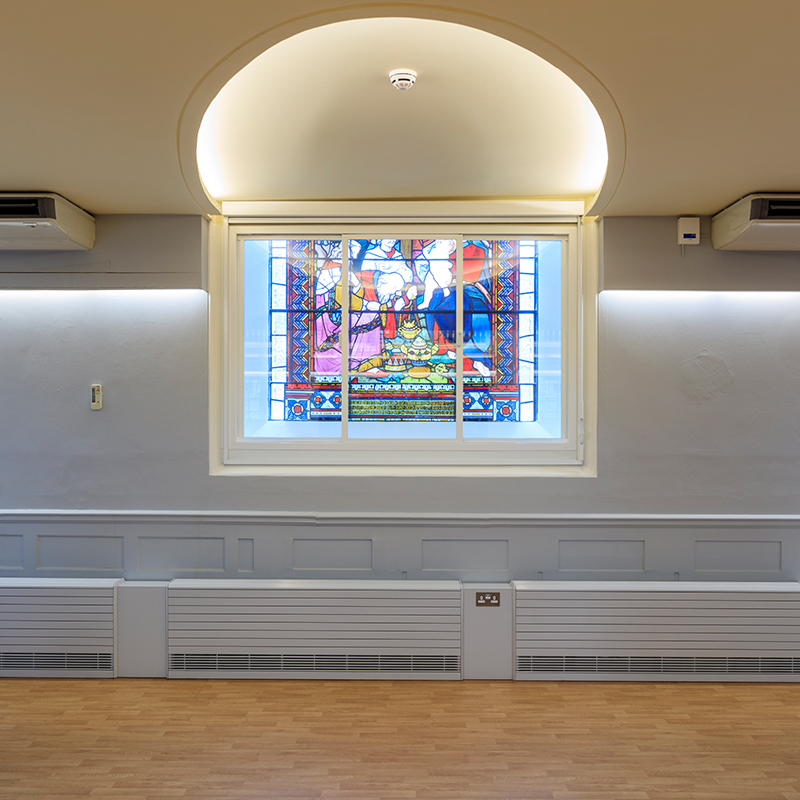

Series 80 Heavy Duty Horizontal Sliding Isometric Selectaglaze series 80 horizontal sliding secondary glazing Horizontal Sliding Secondary Glazing Shooters Hill Police Station, Series 80 Horizontal Sliding Units Secondary windows Series 80 Cannon Street Horizontal Sliding Installation Kings Breast Cancer Clinic Series 80 Horizontal Sliding installation Selectaglaze Series 80 security secondary glazing to large windows in the exhibits room Large arched head secondary glazing series 80 3 pane horizontal slider and series 42 fixed light Series 80 heavy duty 3 pane horizontal sliding system for noise mitigation in a converted church, Marylebone, London Selectaglaze series 80 horizontal sliding secondary glazing. Offices in Sloane Street Secondary windows Abbey Road horizontal slider series 80

Styles available

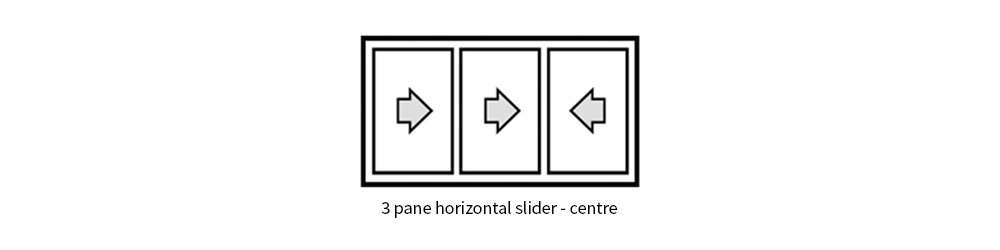

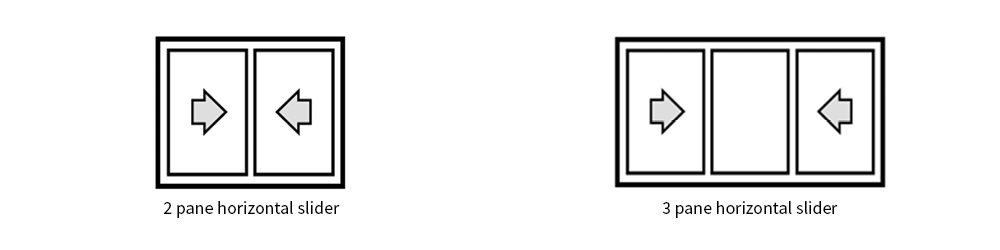

Selectaglaze horizontal sliding styles 2 and 3 pane Horizontal sliding 3 pane centre style

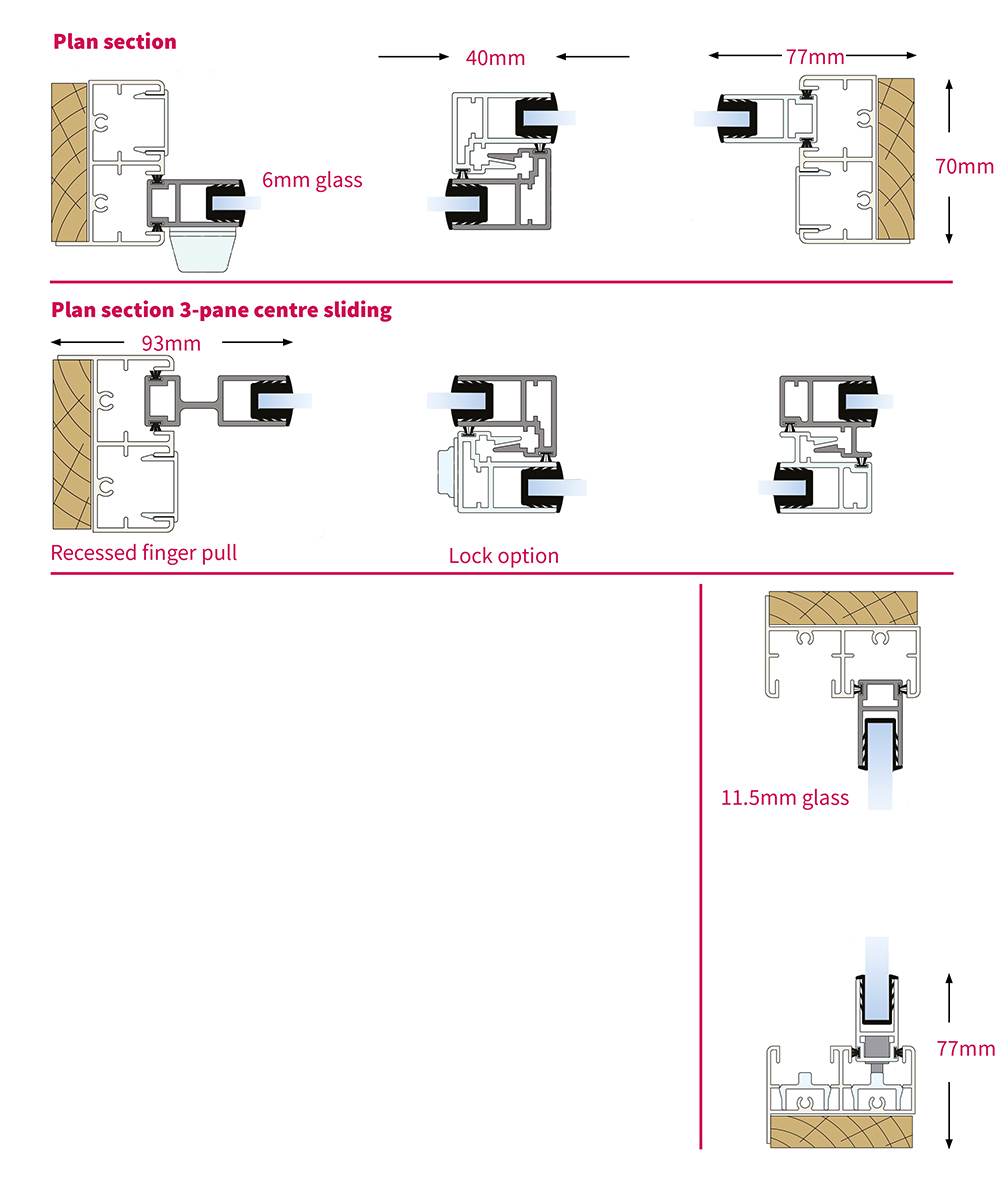

Section diagrams

Selectaglaze secondary glazing Series 80 heavy duty section diagrams

Warmer

INSULATION (U-VALUE) CALCULATED IN COMBINATION WITH A PRIMARY WINDOW AT BRFC SAMPLE SIZE OF 1430 X 1230MM
GLASS METAL PRIMARY WINDOW      TIMBER PRIMARY WINDOW
 6 - 12mm  2.92 W/m2K  2.64 W/m2K
 6 - 12mm low-E      1.94 W/m2K  1.81 W/m2K

Quieter

NOISE INSULATION MEASURED IN COMBINATION WITH A PRIMARY WINDOW
GLASS 50MM CAVITY       100MM CAVITY       200MM CAVITY
 6 - 6.4mm  40 dB (Rw)  44 dB (Rw)  46 dB (Rw)
 6.8 - 7.5mm         41 dB (Rw)  45 dB (Rw)  47 dB (Rw)
8 - 10mm 42 dB (Rw) 46 dB (Rw) 48 dB (Rw)
10.8 - 12mm 43 dB (Rw) 47 dB (Rw) 49 dB (Rw)

Safer

SECURITY PERFORMANCE (MAXIMUM ACHIEVABLE, CONTACT SELECTAGLAZE FOR SPECIFICATION REQUIREMENTS)
  TEST STANDARD
INTRUDER Secured by Design (accredited police preferred product)
BLAST ISO 16933 EXV 33 (2HS and 3HS only)
BALLISTIC N/A
FIRE N/A
  • H3 Recessed Finger Pull
  • H4 Moulded Handle
  • H26 Low Profile Locking Handle
ITEM FINISHES
H3 Recessed Finger Pull       H4 Moulded Handle H26 Low Profile Locking Handle Match frame colour

Looking for more?

To view the coupling guide and other documents available, please visit the technical downloads.
