Slimline 31 (LO)

A slimline framing system with double seals for enhanced thermal retention; usually applied to smaller windows. Offers a practical solution for treating windows that are rarely opened but require occasional access for cleaning or maintenance.

Recommended maximum frame sizes (mm)

  Height (mm) Width (mm)
Lift Out  1700   350

Glazing Range

4 mm to 6.8 mm

Frame Finishes

Standard white (HIPCA semi-gloss). Any standard powder paint, wood grain or anodised finish to order.

Gallery

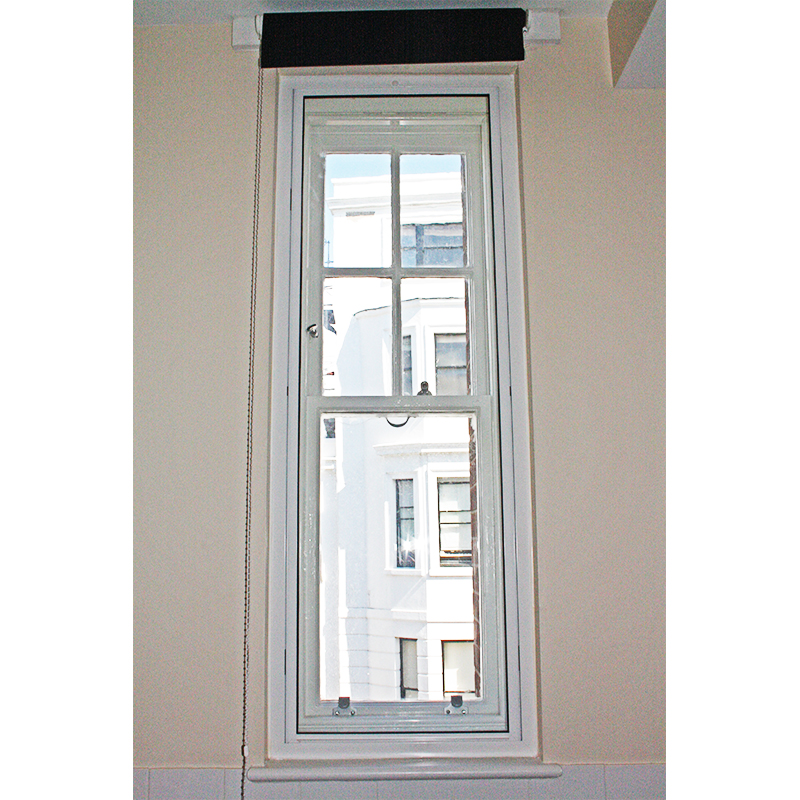

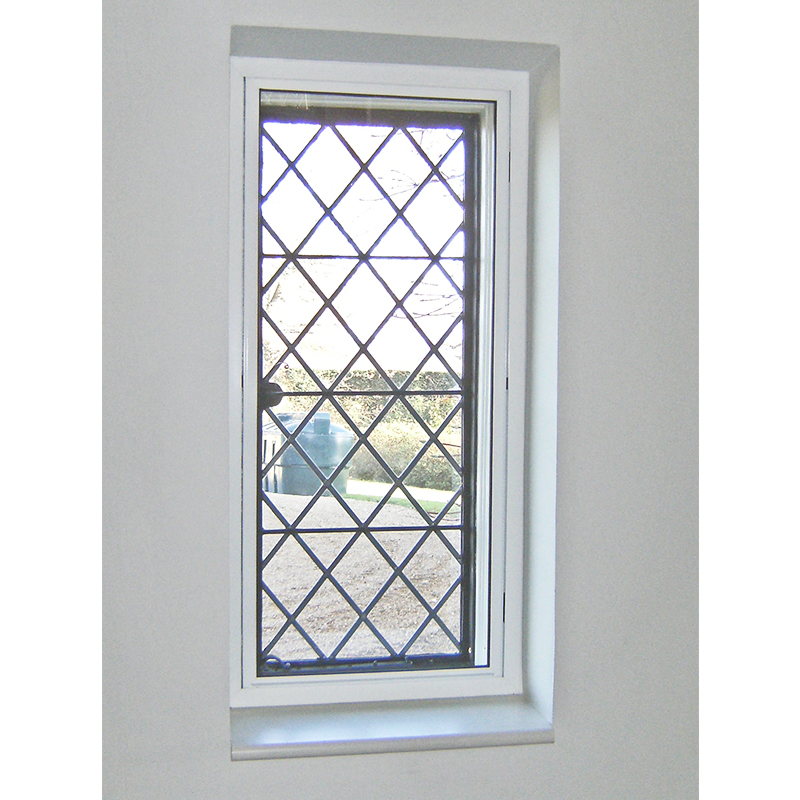

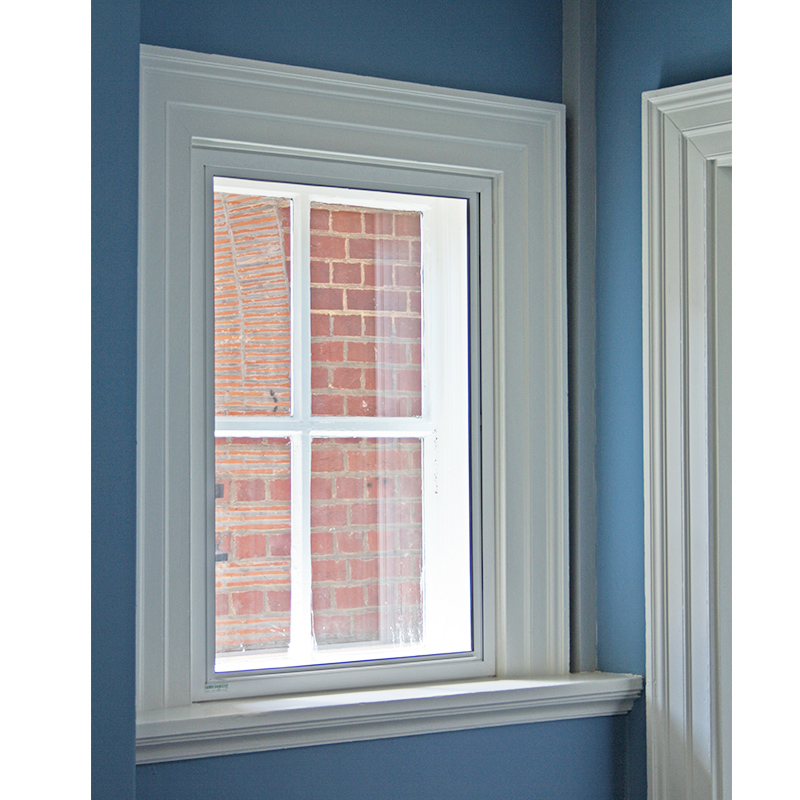

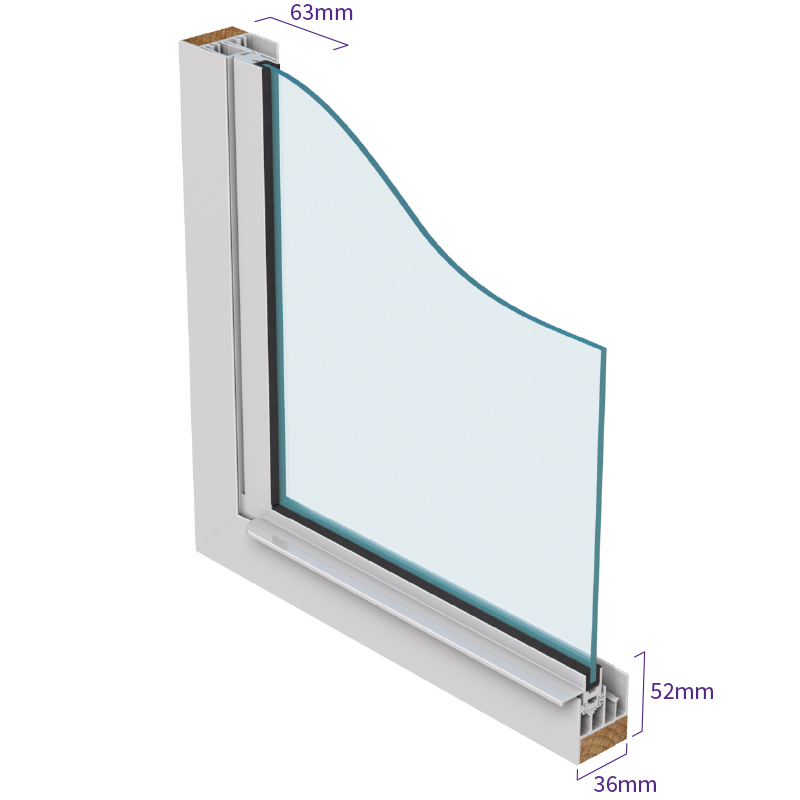

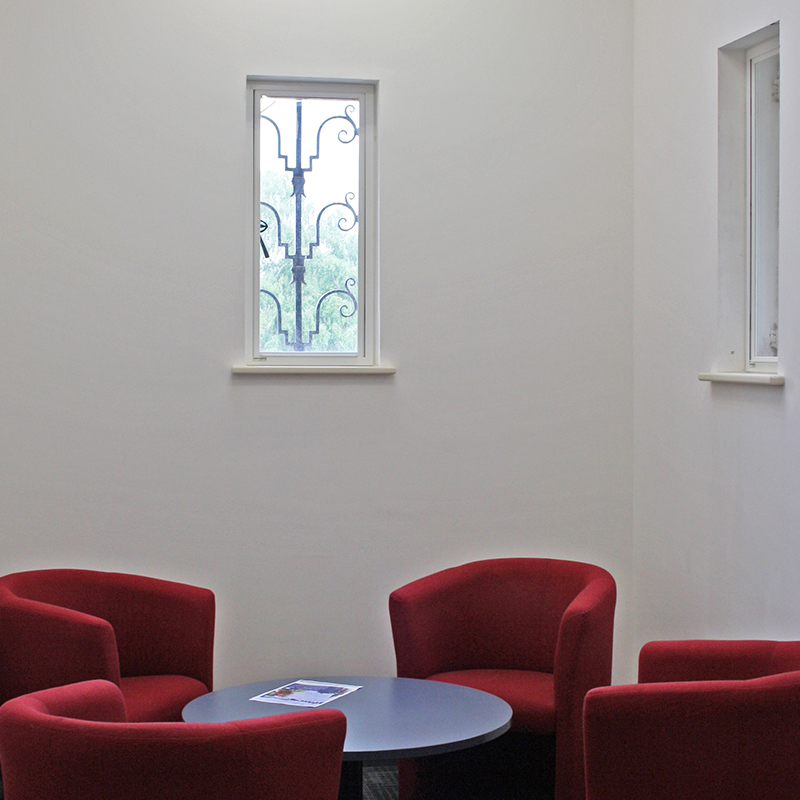

Series 30 Slimline Lift Out Isometric Secondary glazing unit Series 30 Lift Out Wilthshire Town Hall Selectaglaze Series 30 Lift Out Secondary Glazing Clapton Library Series 30 Lift Out Secondary Glazing Unit Ruckmans Estate Series 30 Lift Out secondary glazing solution for Vernon Gardens

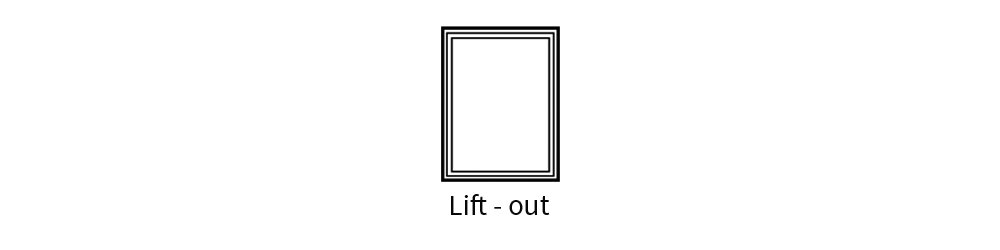

Styles available

Standard lift out and curved lift out secondary glazing options by Selectaglaze Selectaglaze lift out unit option in circular and semi circular forms

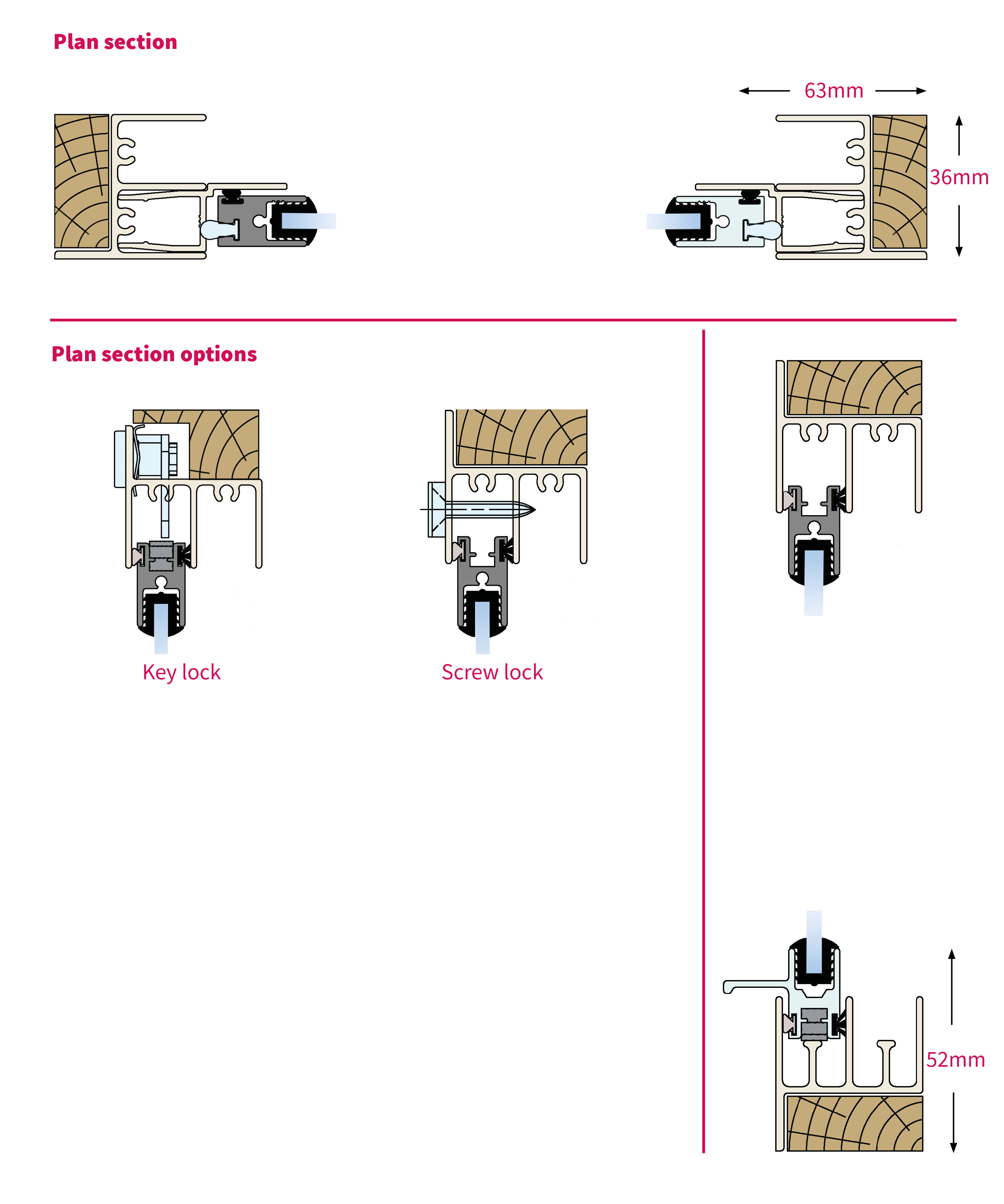

Section diagrams

Selectaglaze series 31 lift out sections sheet

Warmer

The Series 31 window has not yet been assessed for thermal insulation but it should compare well with the Series 10 system.

Quieter

The Series 31 window has not yet been laboratory sound tested but it should compare well with the Series 10 system.

Safer

SECURITY PERFORMANCE (MAXIMUM ACHIEVABLE, CONTACT SELECTAGLAZE FOR SPECIFICATION REQUIREMENTS)
  TEST STANDARD
INTRUDER Non certified second barrier to entry
BLAST N/A
BALLISTIC N/A
FIRE N/A
  • H1 Integral Finger Pull
  • H3 Recessed Finger Pull
  • L11 Mini Camlock
  • L12 Screwlock
ITEMS FINISHES
H1 Integral Finger Pull H3 Recessed Finger Pull Match colour frame
L11 Mini Camlock Silver
L12 Screwlock White Black

Looking for more?

To view the coupling guide and other documents available, please visit the technical downloads.

Go to technical downloads
