Heavy Duty Security 43 (DFL)

A robust demountable fixed frame offering enhanced security but with minimal sight lines making it suitable choice for heritage buildings. Glazing options provide certified levels of blast mitigation and intruder resistance equivalent to protection levels offered by strong bars and grilles.

Recommended maximum frame sizes (mm)

Height (mm) Width (mm)
3000  2000

Glazing Range

6 mm to 12 mm

Frame Finishes

Standard white (HIPCA semi-gloss). Any standard powder paint, wood grain or anodised finish to order.

Gallery

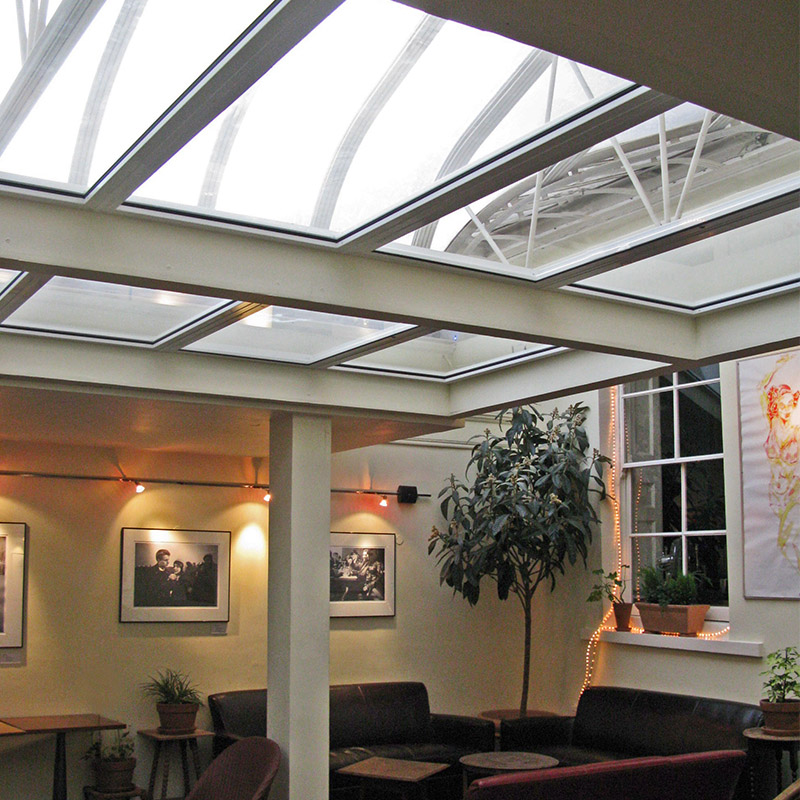

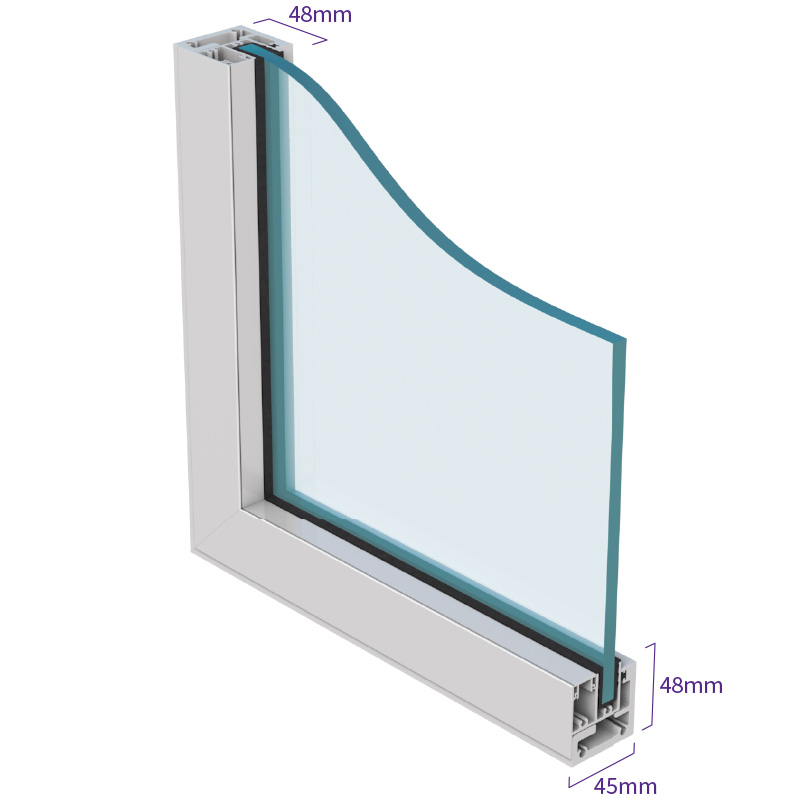

S43 Heavy duty Security DFL Isometric Selectaglaze demountable fixed light series 43 - installation at Charlotte Street Blues Club

Styles available

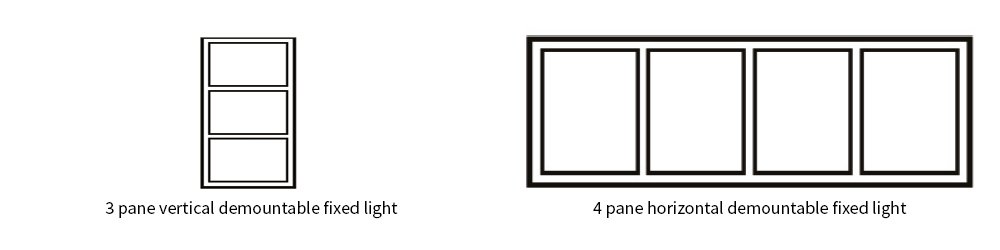

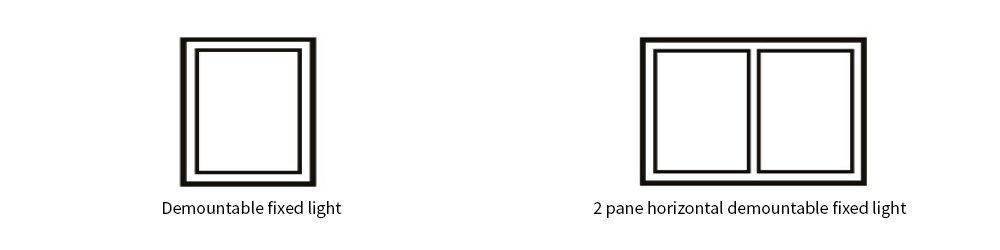

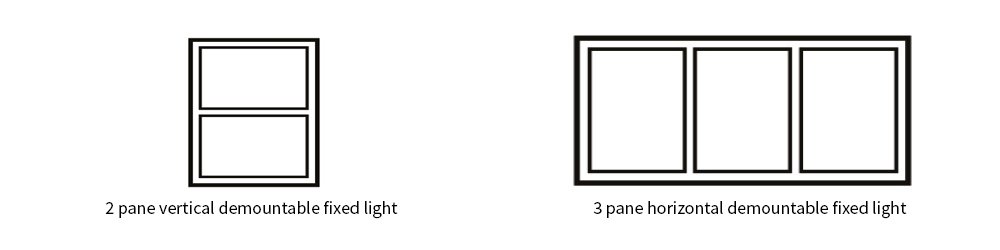

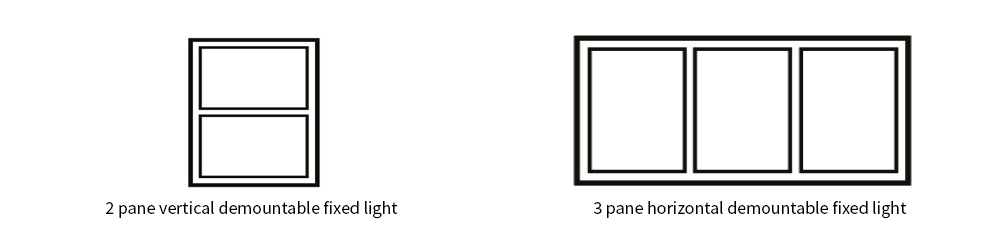

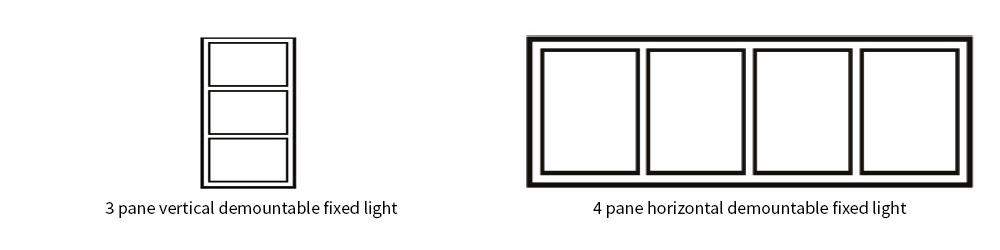

Standard and 2 pane horizontal demountable fixed light secondary glazing options 2 pane vertical and 3 pane horizontal demountable fixed light secondary glazing options Selectaglaze 3 pane vertical and 4 pane horizontal demountable fixed light secondary glazing options

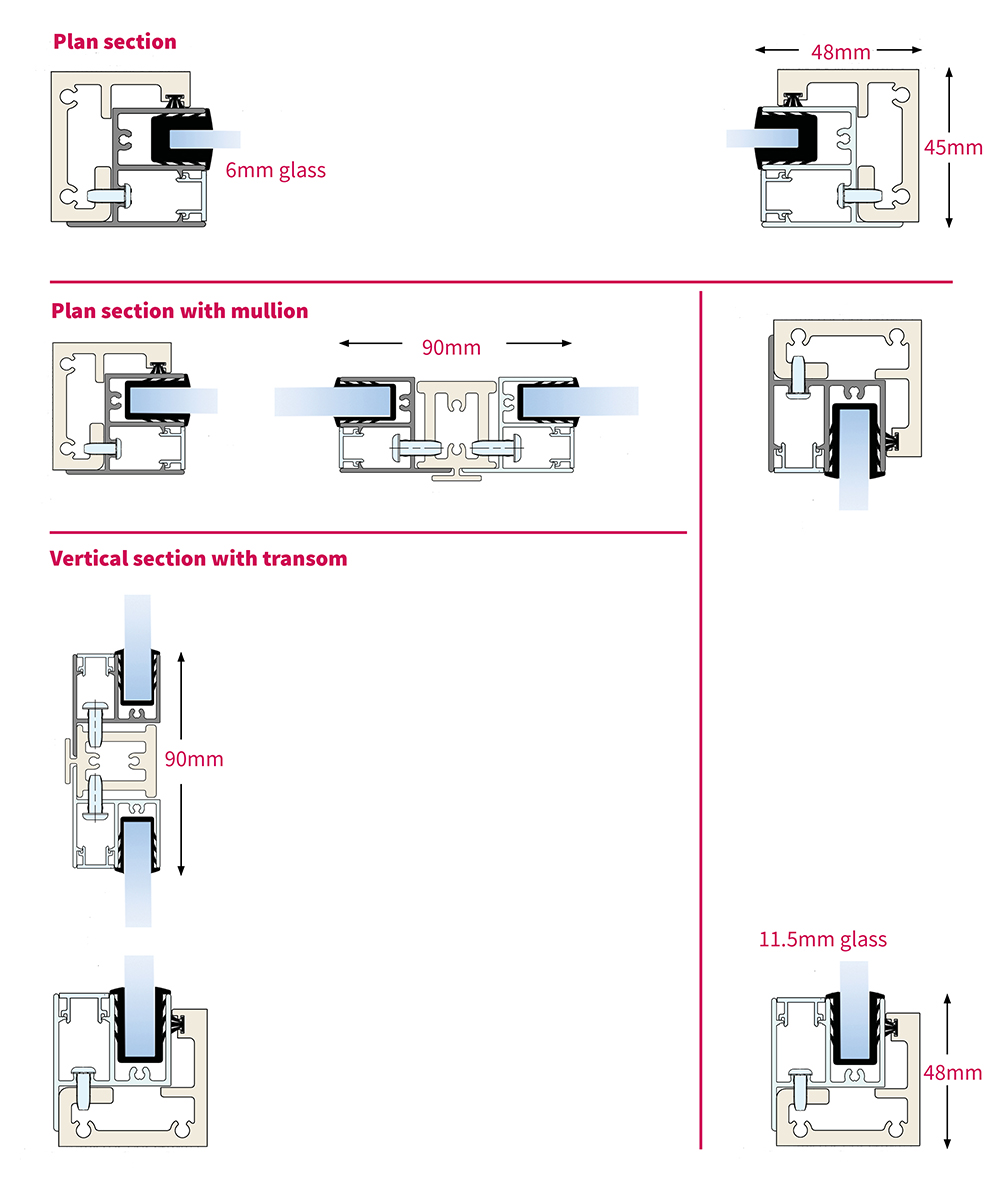

Section diagrams

Selectaglaze secondary glazing Series 43 heavy duty demountable fixed light section diagrams

Warmer

The Series 43 window has not yet been assessed for thermal insulation but should compare well with the Series 50 fixed frame

Quieter

The Series 43 window has not yet been assessed for noise insulation but should compare well with the Series 50 fixed frame

Safer

SECURITY PERFORMANCE (MAXIMUM ACHIEVABLE, CONTACT SELECTAGLAZE FOR SPECIFICATION REQUIREMENTS)
  TEST STANDARD
INTRUDER LPS 1175 SR1, 2 and 3
BLAST ISO 16933 EXV 25
BALLISTIC N/A
FIRE N/A

Ironmongery not applicable to this product

Looking for more?

To view the coupling guide and other documents available, please visit the technical downloads.

Go to technical downloads
