Whitehall Museum, Cheam

A charming Grade II* Listed Tudor building is brought up to 21st century standards

London Borough of Sutton

Whitehall Museum is a 500 year old Grade II* Listed Tudor building which has received a well needed £1.6 million refurbishment and restoration. Originally the fenestration would have consisted of wooden mullions set in a gap between upright timbers and would have been unglazed but may have been covered in beaten leather or oiled paper to keep the weather out. The windows at the front of the building are improvements dating from more recent changes but still rich in architectural history so secondary glazing was specified to make the thermal enhancements required without damaging the architectural features. In total, 15 units were installed from the light weight range and 2 fire retardant units. Tapered and splayed timber grounds were used to take up the irregularities of the building structure which were scribed on site. Once these were in place the secondary glazing was installed. The treatment of the fire rated windows posed another challenge. Back in Tudor times, there were no fire regulations and local oak and elm, dating from c.1500, was used for the construction of the building. The approach had to be carefully planned and approved by building control. Durtnell & Sons created new fire resistant reveals into which the secondary glazing was installed ensuring the integrity of the treatment. Since this project was completed the Series 30 has been superceeded by the Series 31 lift-out.

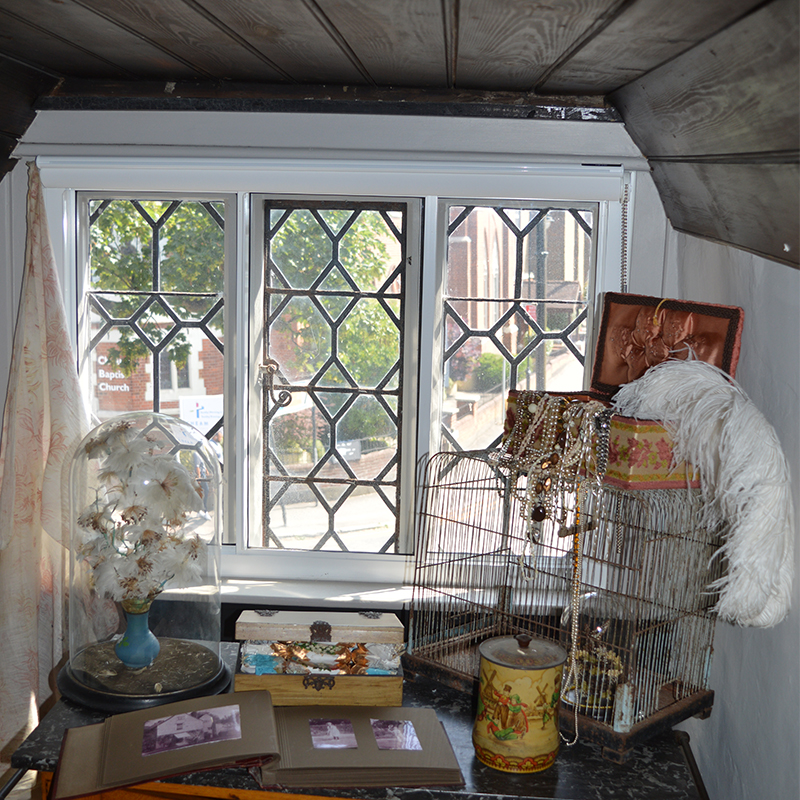

Series 10 3 pane horizontal sliding
White hall museum bedroom window with single glazed leaded lights and thermal secondary glazing

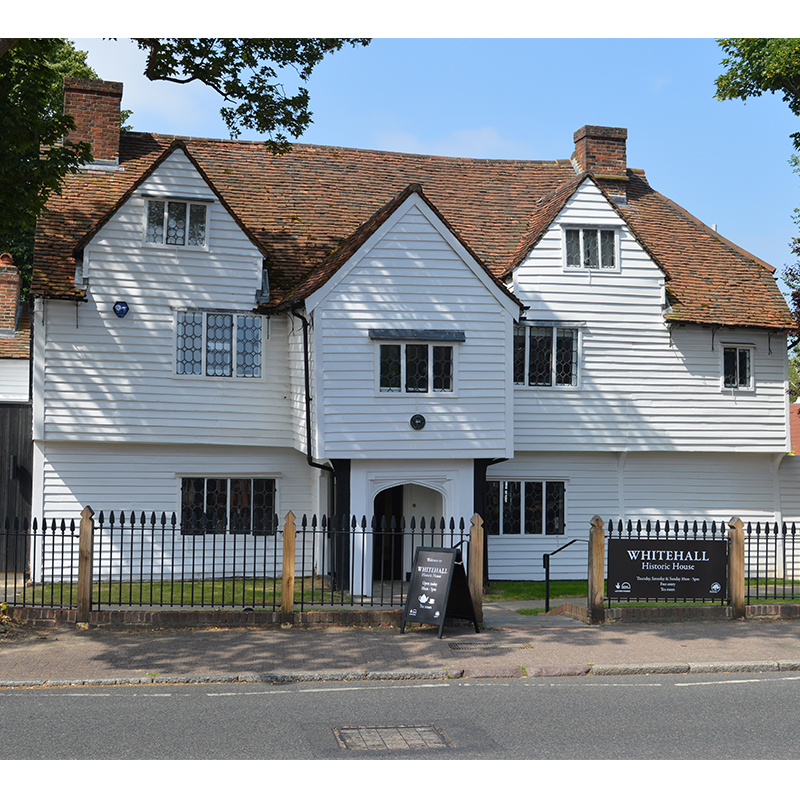

Whitehall museum external shot of entrance and original single glazed windows

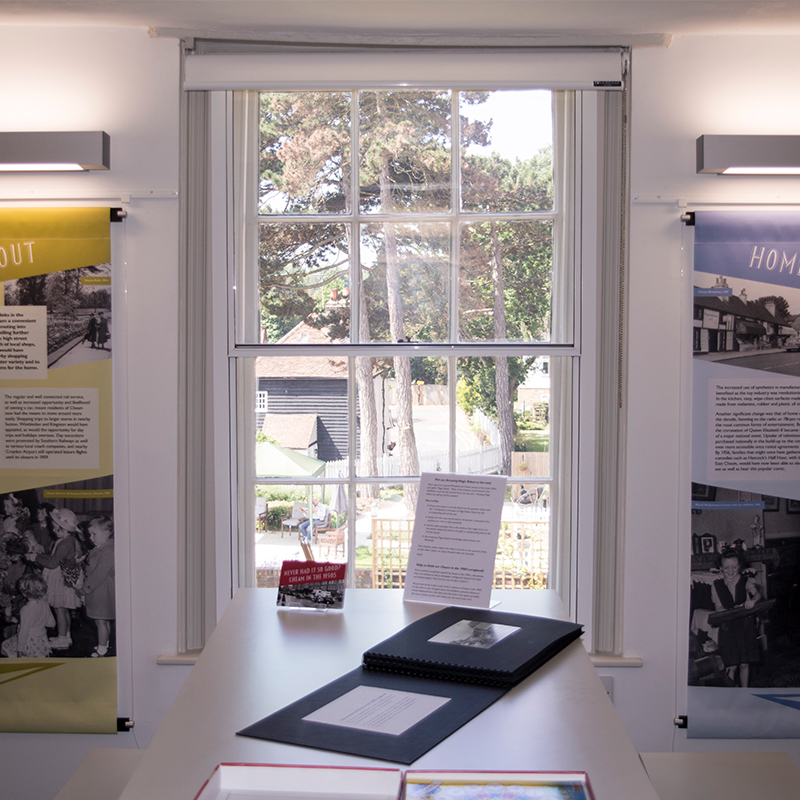

Grade II Listed whitehall museum with selectaglaze series 20 vertical slider

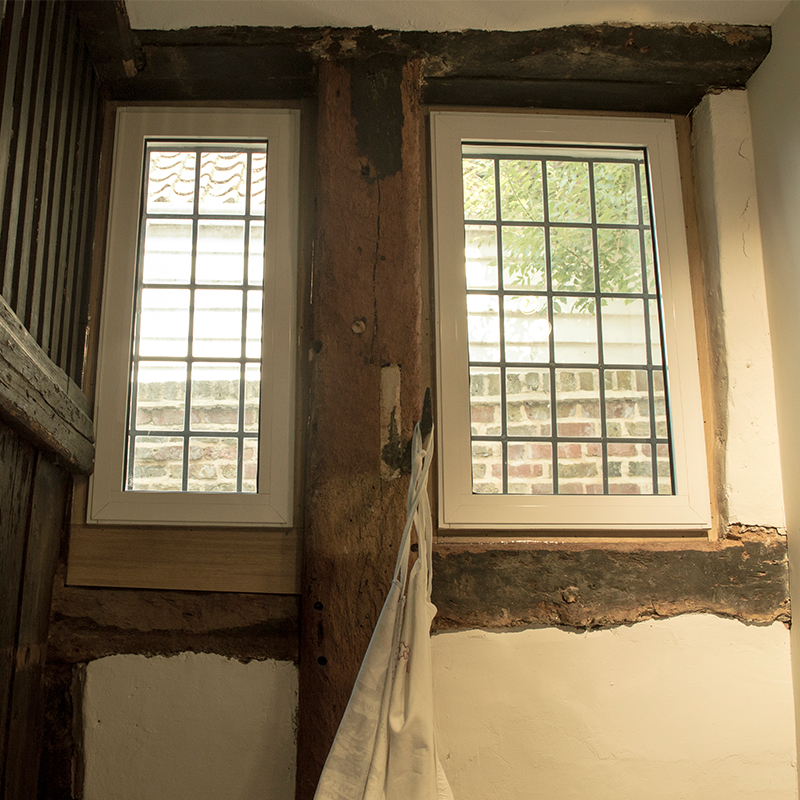

2 series 40 half hour fire fixed units at the grade II Listed Whitehall museum, Cheam

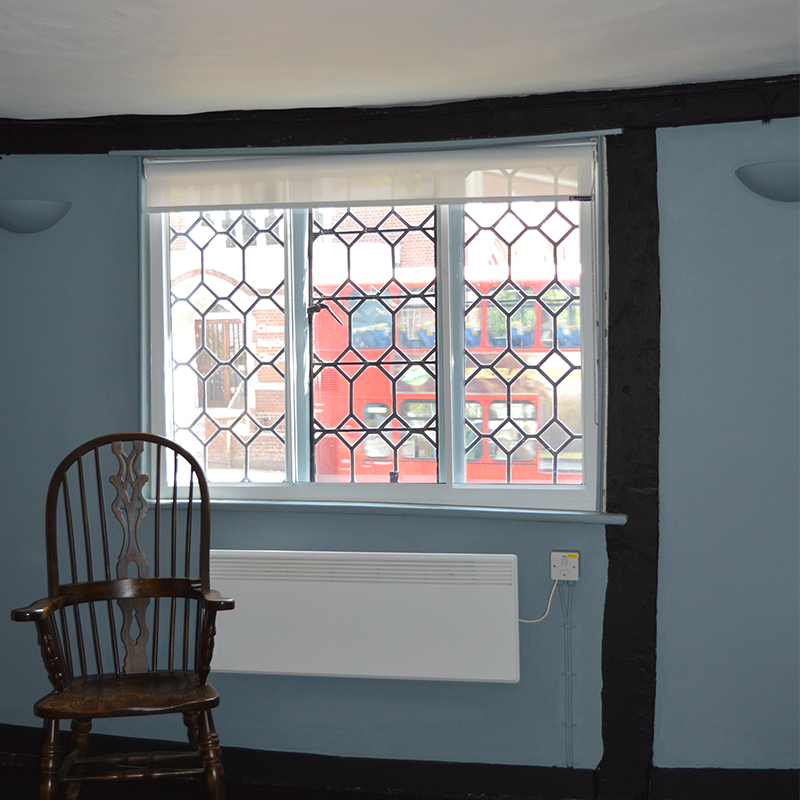

Tudor building, now a museum, with triple sliding secondary glazing to improve thermal performance

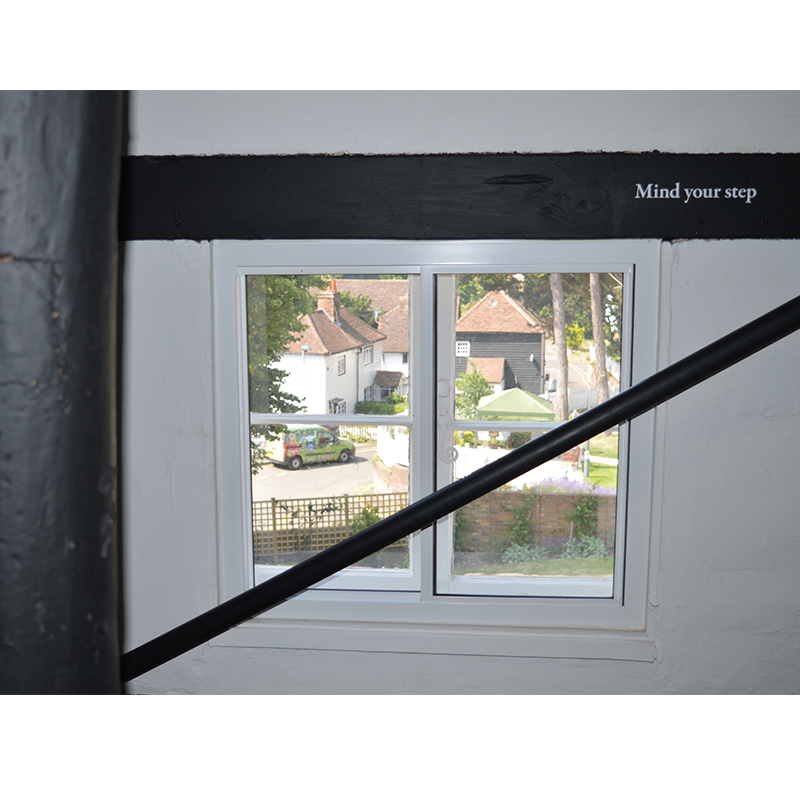

Selectaglaze series 10 2 pane horizontal sliding in the stairwell at Whitehall Museum, Cheam
