Half Hour Fire 40 (FL)

A beaded fixed frame system offering certified 30-minute fire integrity protection. Also available with a range of glazing beads for non-fire applications such as vision panels and clean room environments.

Recommended maximum frame sizes (mm)

Height (mm) Width (mm)
2805   1477

Glazing Range

10mm Pyrodur™

Frame Finishes

Standard white (HIPCA semi-gloss). Any standard powder paint, wood grain or anodised finish to order.

Gallery

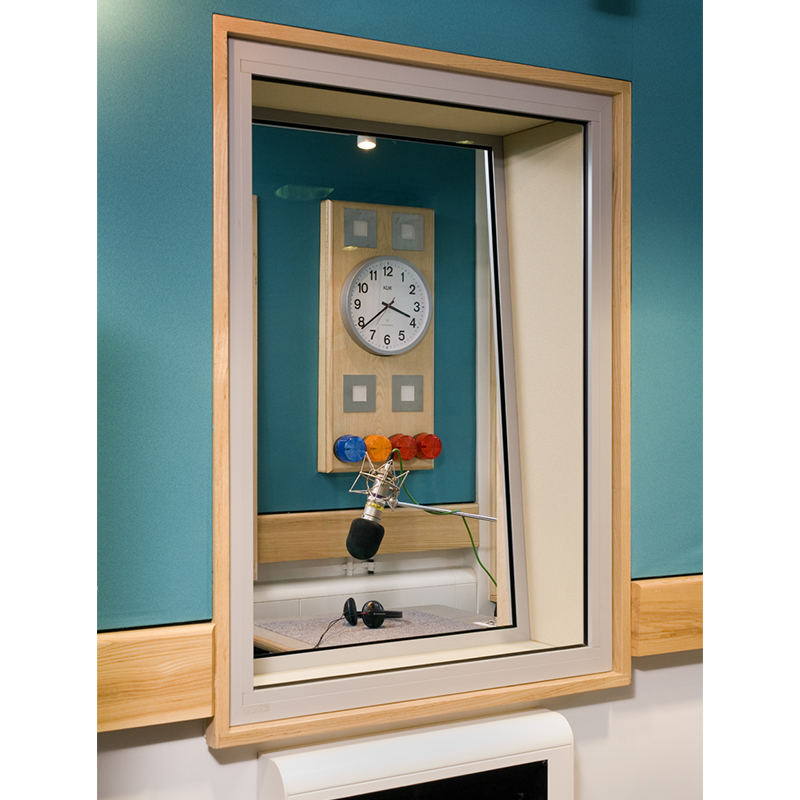

Series 40 Half Hour Fire Fixed Light Isometric Series 40 Half Hour Fixed Light Western House - recording studio for BBC 2

Styles available

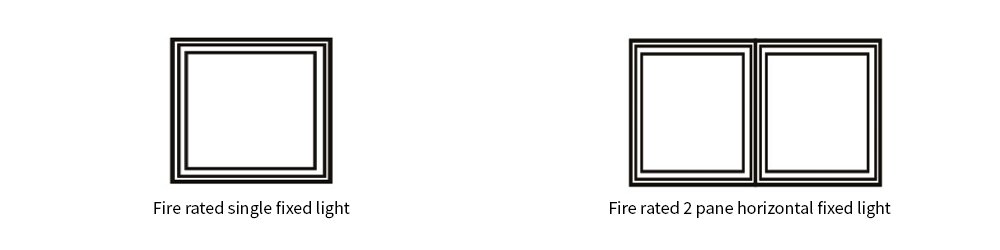

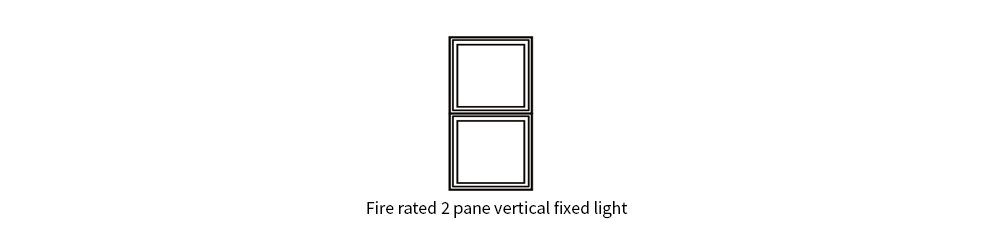

Fire rated fixed pane secondary glazing options standard and 2 pane horizontal Fire rated fixed pane 2 units stack vertically style available

Section diagrams

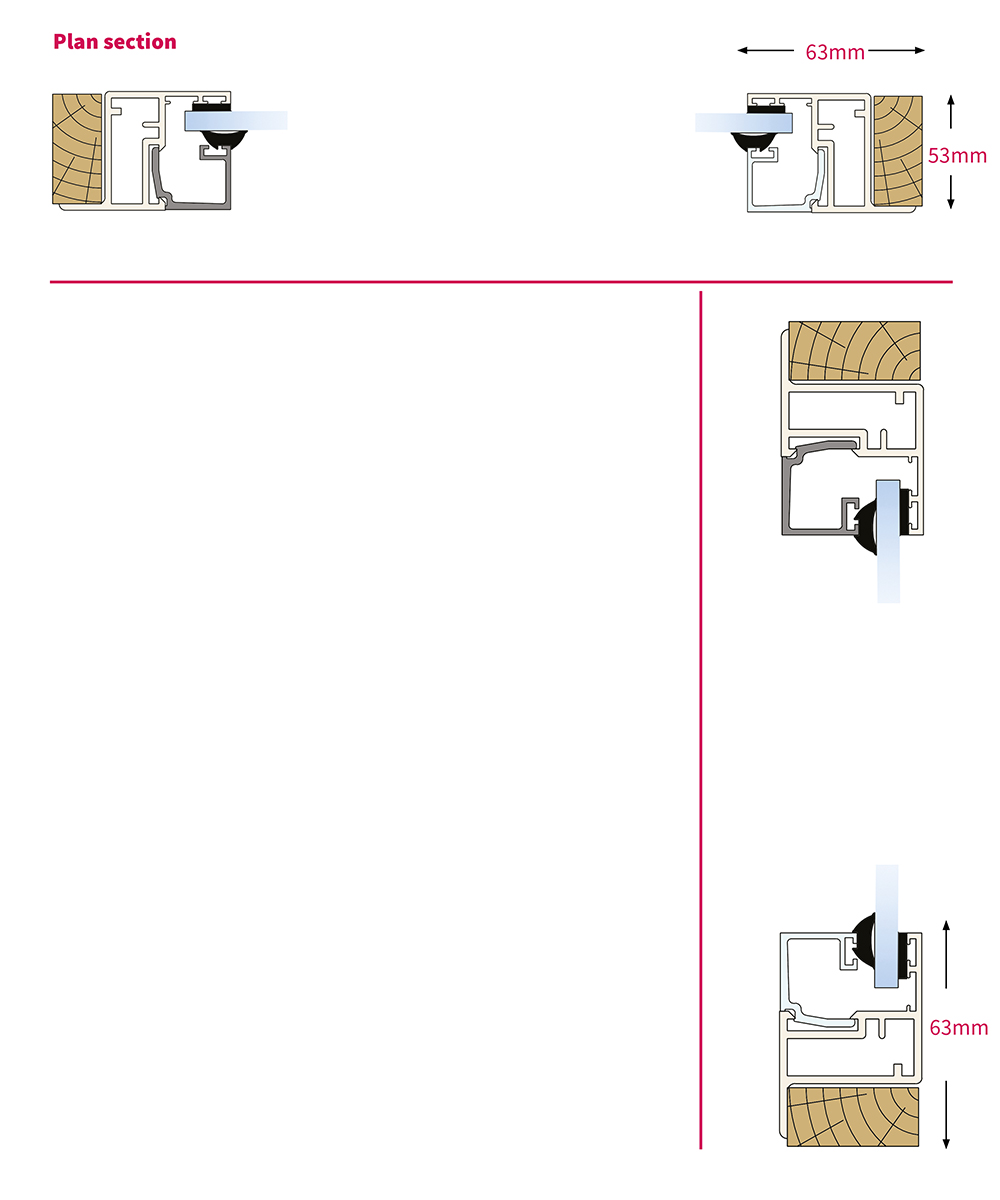

Selectaglaze secondary glazing Series 40 half hour fire fixed light section diagrams

Warmer

INSULATION (U-VALUE) CALCULATED IN COMBINATION WITH A PRIMARY WINDOW AT BRFC SAMPLE SIZE OF 1430 x 1230MM
GLASS METAL PRIMARY WINDOW TIMBER PRIMARY WINDOW
 6 - 12mm  2.84 W/m2K  2.57 W/m2K
 6 - 12mm low-E  1.91 W/m2K  1.78 W/m2K
24mm gas filled low-E sealed units 1.52 W/m2K 1.44 W/m2K
24mm enhanced thermal sealed units 1.21 W/m2K 1.15 W/m2K

Quieter

NOISE INSULATION MEASURED IN COMBINATION WITH A PRIMARY WINDOW
GLASS 50MM CAVITY 100MM CAVITY 200MM CAVITY
 6 - 6.4mm  41 dB (Rw)  45 dB (Rw)  47 dB (Rw)
6.8 - 7.5mm   42 dB (Rw)  46 dB (Rw)  48 dB (Rw)
8 - 10mm  43 dB (Rw)  47 dB (Rw)  49 dB (Rw)
10.8 - 12mm  44 dB (Rw)  48 dB (Rw)  50 dB (Rw)

Safer

SECURITY PERFORMANCE (MAXIMUM ACHIEVABLE, CONTACT SELECTAGLAZE FOR SPECIFICATION REQUIREMENTS)
  TEST STANDARD
INTRUDER N/A
BLAST N/A
BALLISTIC N/A
FIRE BS EN1364-1, BS EN1363-1 - 30 minute fire integrity

Ironmongery not applicable to this product

Looking for more?

To view the coupling guide and other documents available, please visit the technical downloads.
