Heavy Duty/Security 42 (FL)

A heavy-duty fixed frame used stand alone or in combination with other window styles. It can be shaped and curved to a full circle and neat cover channels conceal the fixings. Thicker glass options provide high levels of noise insulation and certified levels of blast mitigation and intruder resistance.

Recommended maximum frame sizes (mm)

Height (mm) Width (mm)
3000   2000

Glazing Range

6 mm to 12 mm

Frame Finishes

Standard white (HIPCA semi-gloss). Any standard powder paint, wood grain or anodised finish to order.

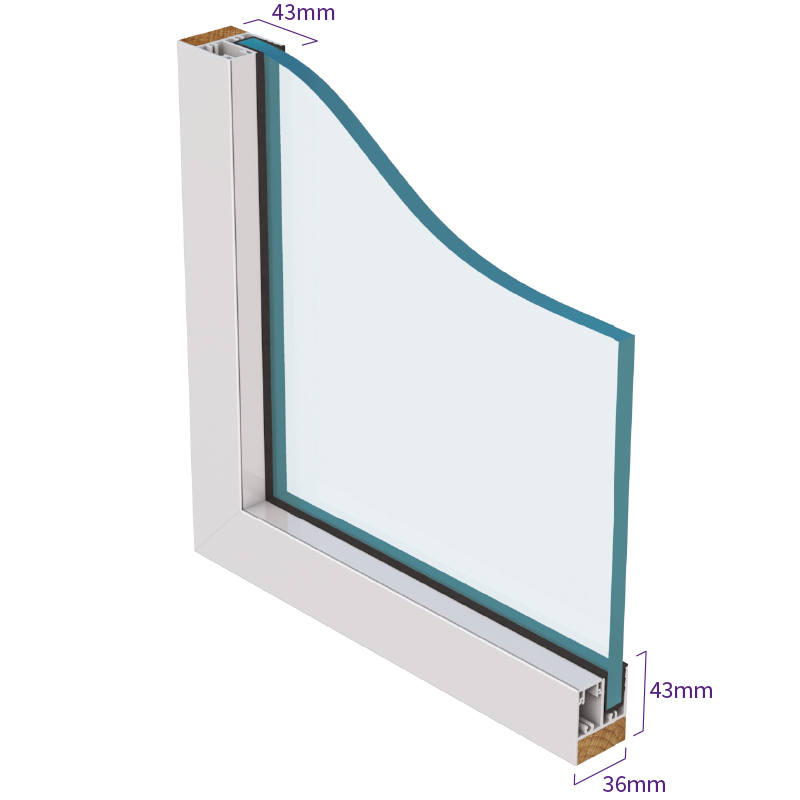

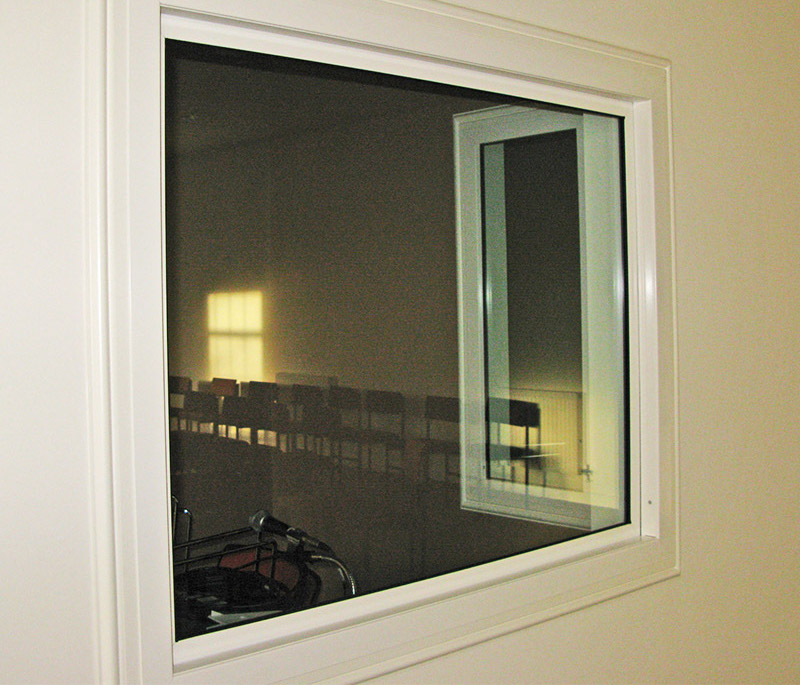

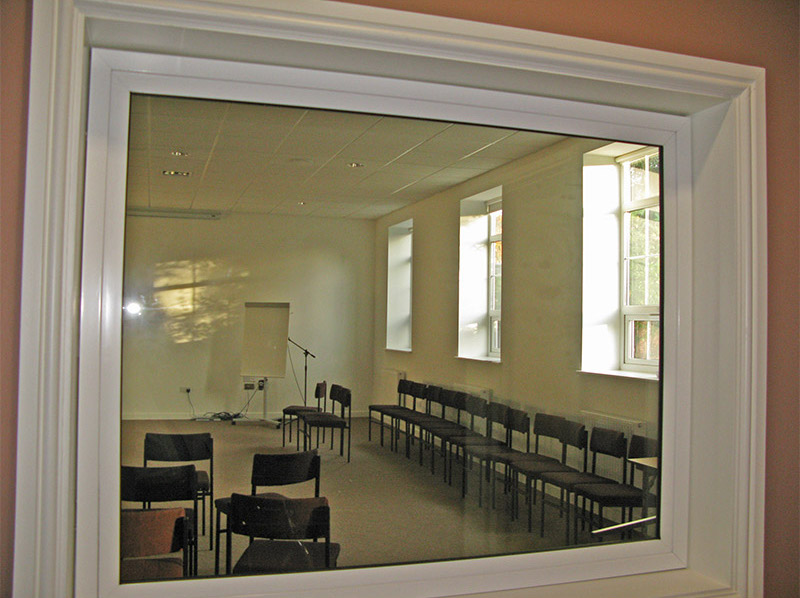

Series 42 Heavy Duty Security Isometric Series 42 Fixed Light Secondary Glazing at the Focalore Centre Selectaglaze series 42 secondary glazing at the Focalore Centre Welwyn Garden City Series 42 secondary glazing installed in Focalore Centre

Styles available

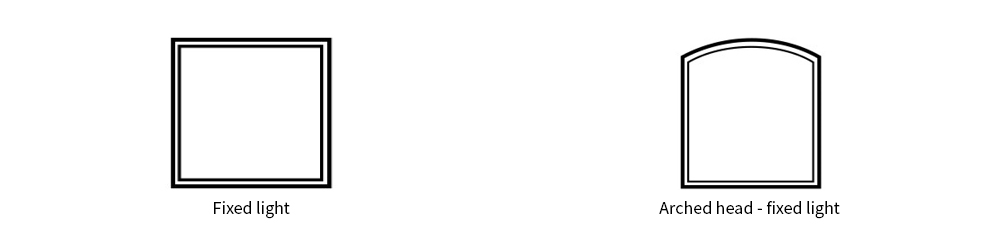

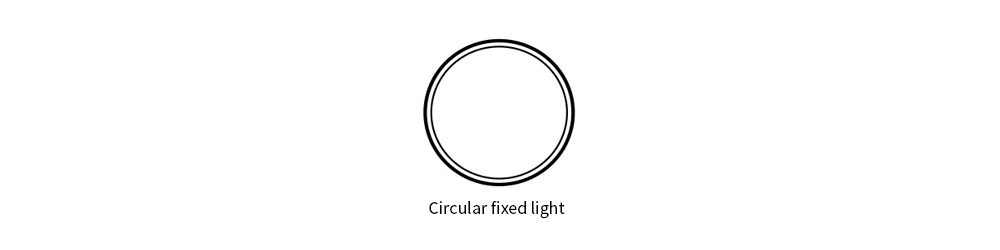

Standard fixed light and arched head secondary glazing styles Circular fixed light secondary glazing option

Section diagrams

Selectaglaze secondary glazing Series 42 heavy duty fixed light section diagrams

Warmer

  The Series 42 window has not yet been assessed for thermal insulation but should compare well with the Series 40 fixed frame

Quieter

The Series 42 window has not yet been assessed for noise insulation but should compare well with the Series 40 fixed frame

Safer

SECURITY PERFORMANCE (MAXIMUM ACHIEVABLE, CONTACT SELECTAGLAZE FOR SPECIFICATION REQUIREMENTS)
  TEST STANDARD
INTRUDER   LPS 1175 SR1 and SR2
BLAST ISO 16933 EXV 25
BALLISTIC N/A
FIRE N/A

Ironmongery not applicable to this product

Looking for more?

To view the coupling guide and other documents available, please visit the technical downloads.

Go to technical downloads
