Slimline 45 (HC)

A hinged casement system with slim profiles, flush hinges and neat handles that is particularly suited to treating windows and doors in heritage properties. The single casement with a secure lock option has accreditation to Secured by Design.

Recommended maximum frame sizes (mm)

  Height (mm) Width (mm)
Single 2200 1300
Double 2200 2600
Stable Door 2200 1100

Glazing Range

4 mm to 6.8 mm

Frame Finishes

Standard white (HIPCA semi-gloss). Any standard powder paint, wood grain or anodised finish to order.

Hinged Casement

Hinged Casement Frame

Gallery

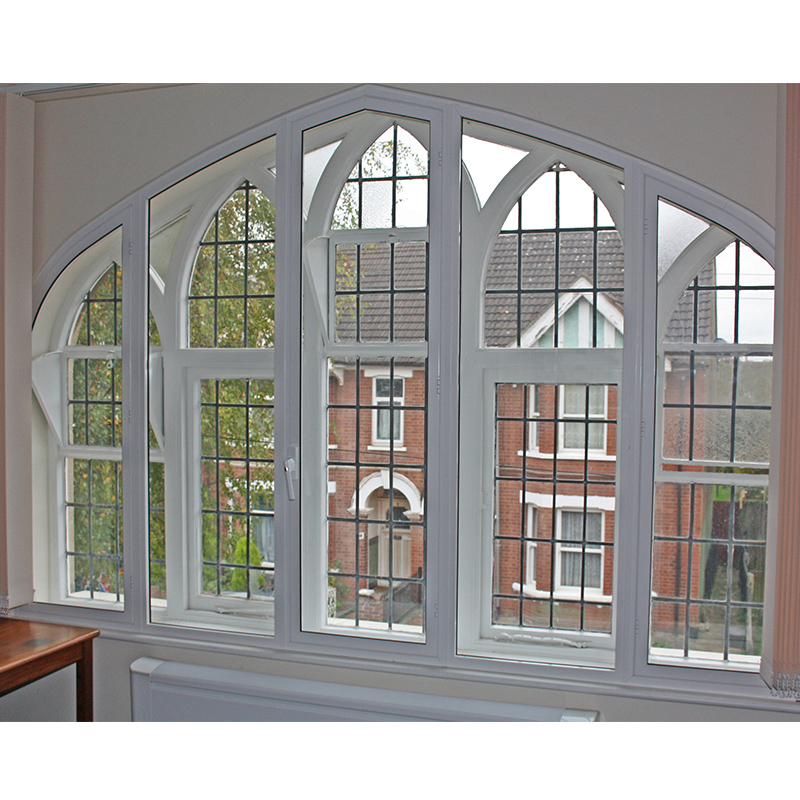

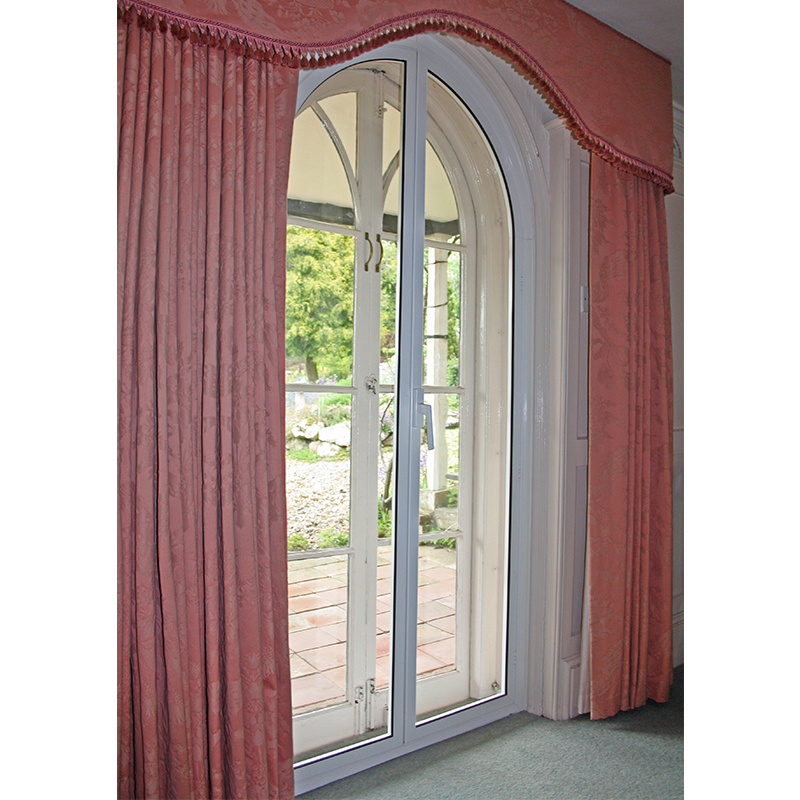

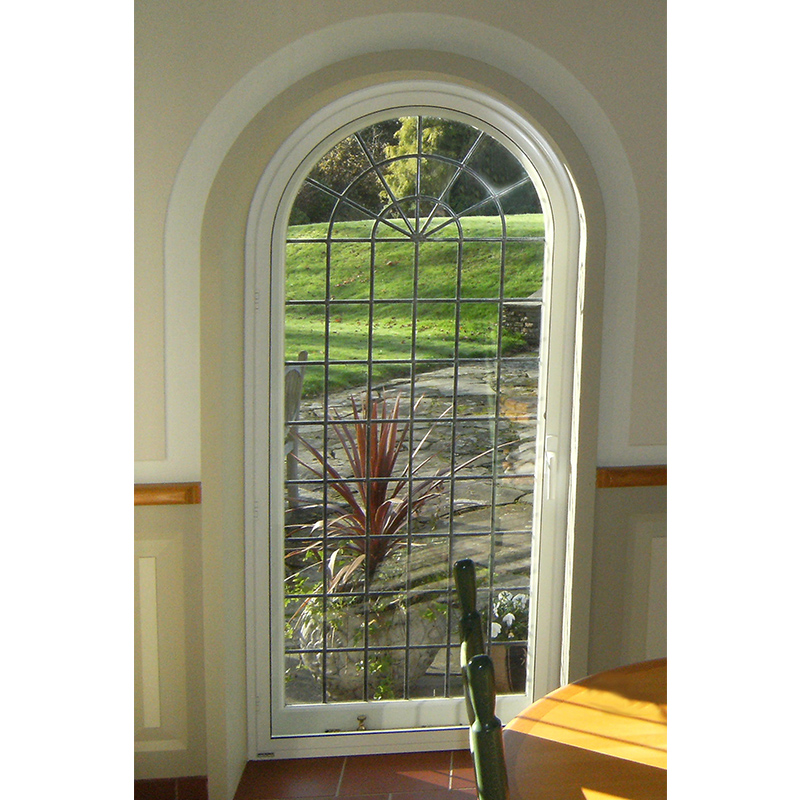

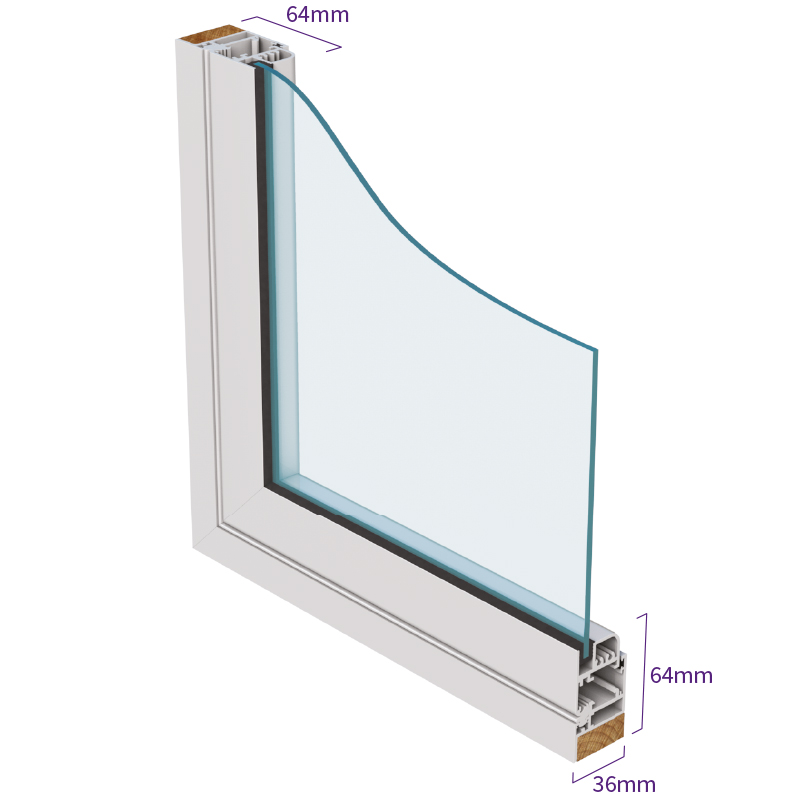

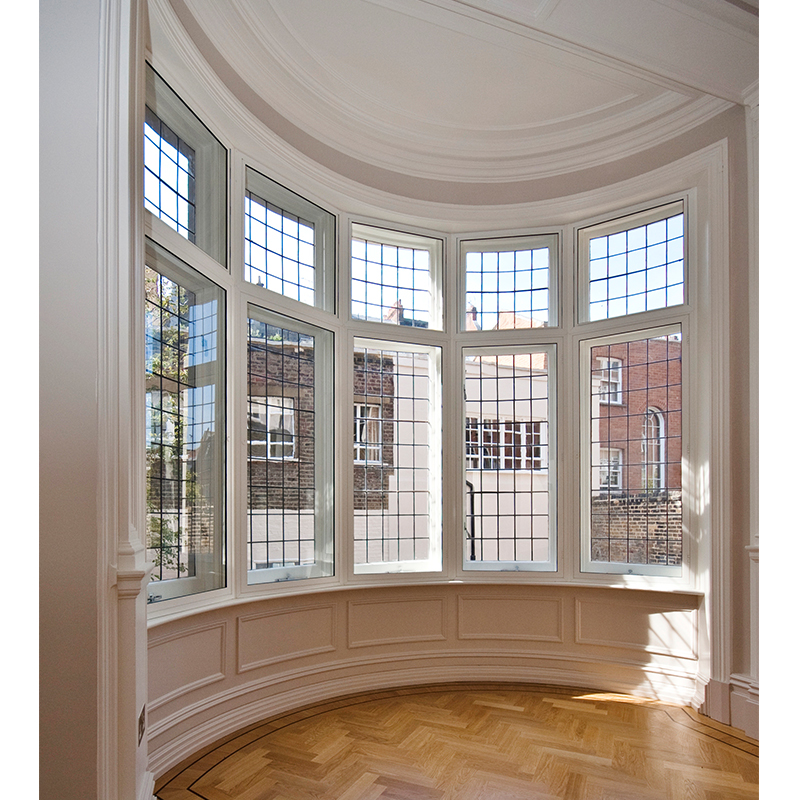

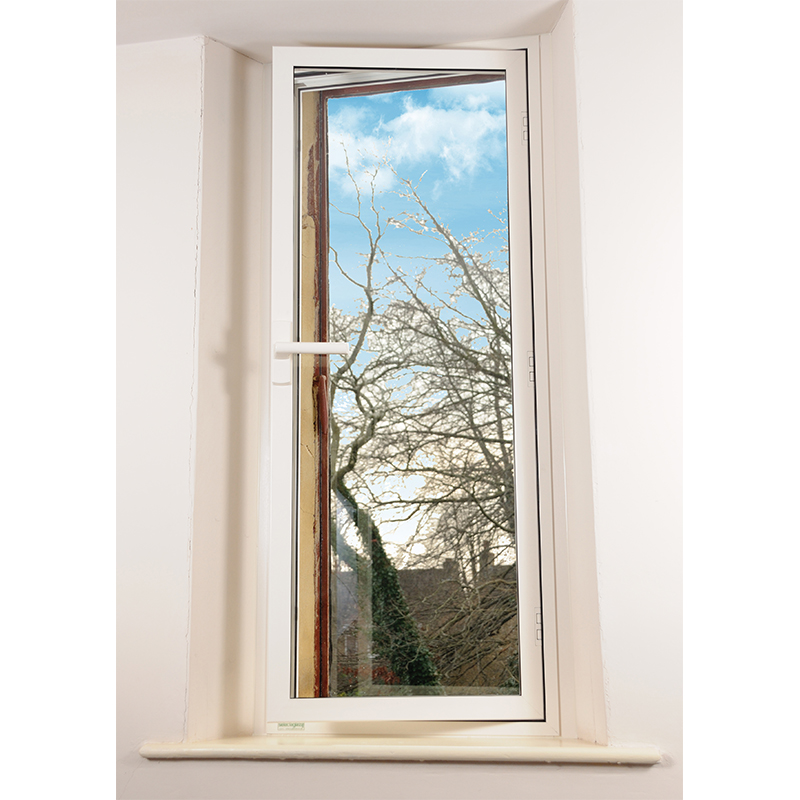

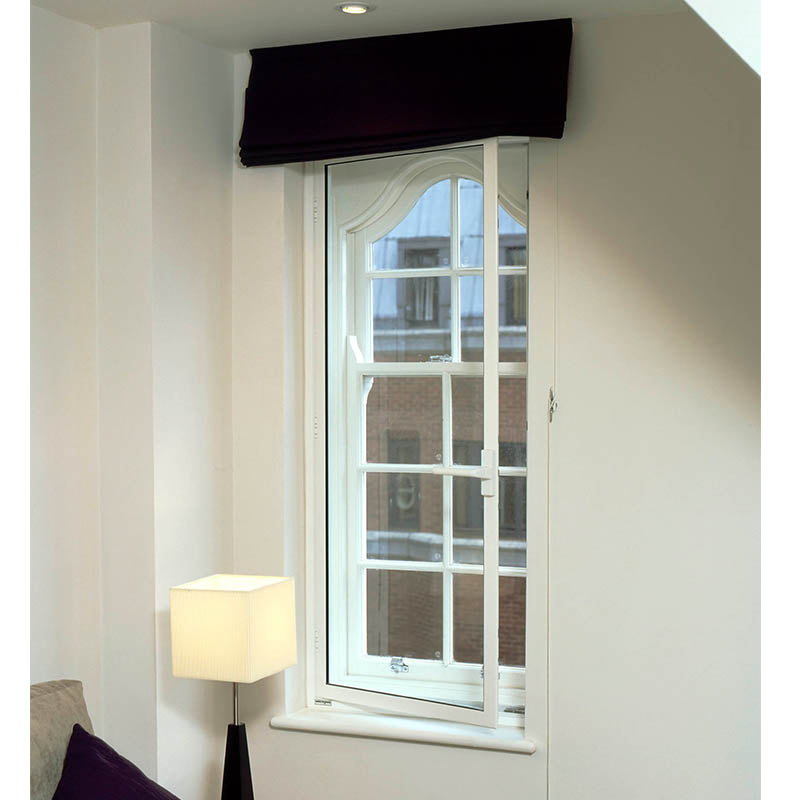

S45 Slimline LO Isometric Hinged Casement Series 45 hinged casement treatment for David Le Lay Architects at a property in Sloane Street Hinged casement series 45 hinged casement installation - private residence in Oundle Hinged casement secondary glazing series 45 glazing in Ruckmans Estate Interior Series 45 secondary hinged casement installed in Chantrey House Series 45 Hinged Casement secondary double glazing installation for draught proofing St Pauls Church, St Albans, Series 45 hinged casement secondary glazed units

Styles available

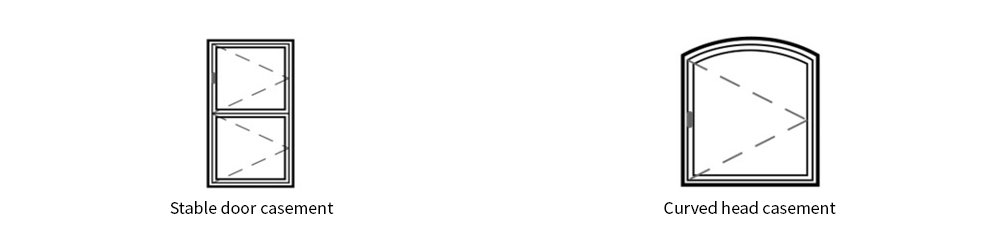

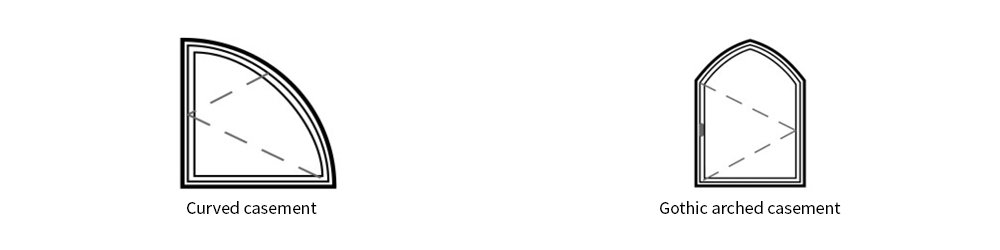

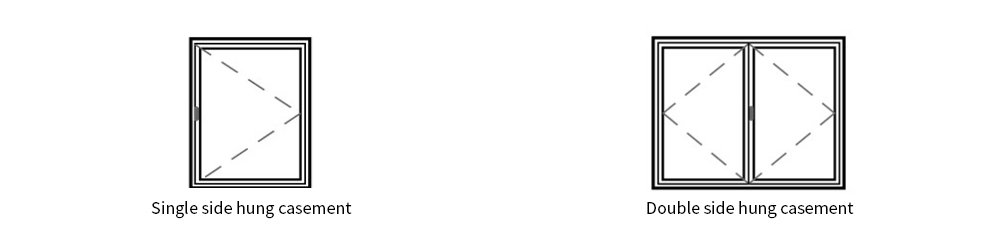

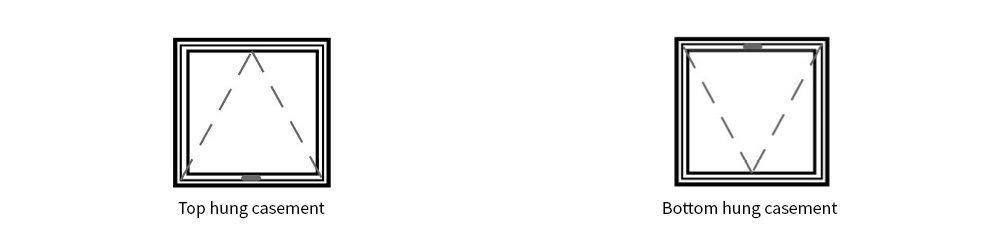

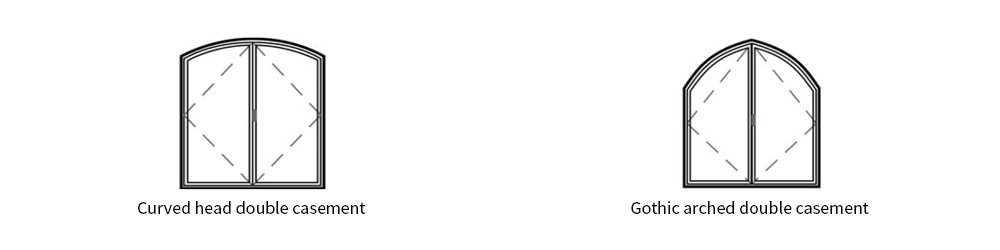

Selectaglaze single and double side hung secondary glazing options Top and bottom hung casement secondary glazing options by Selectaglaze Selectaglaze stable door and curved head casement secondary glazing options Secondary glazed curved head and gothic arched casement options Selectaglaze curved head and gothic arched double casement secondary glazing options

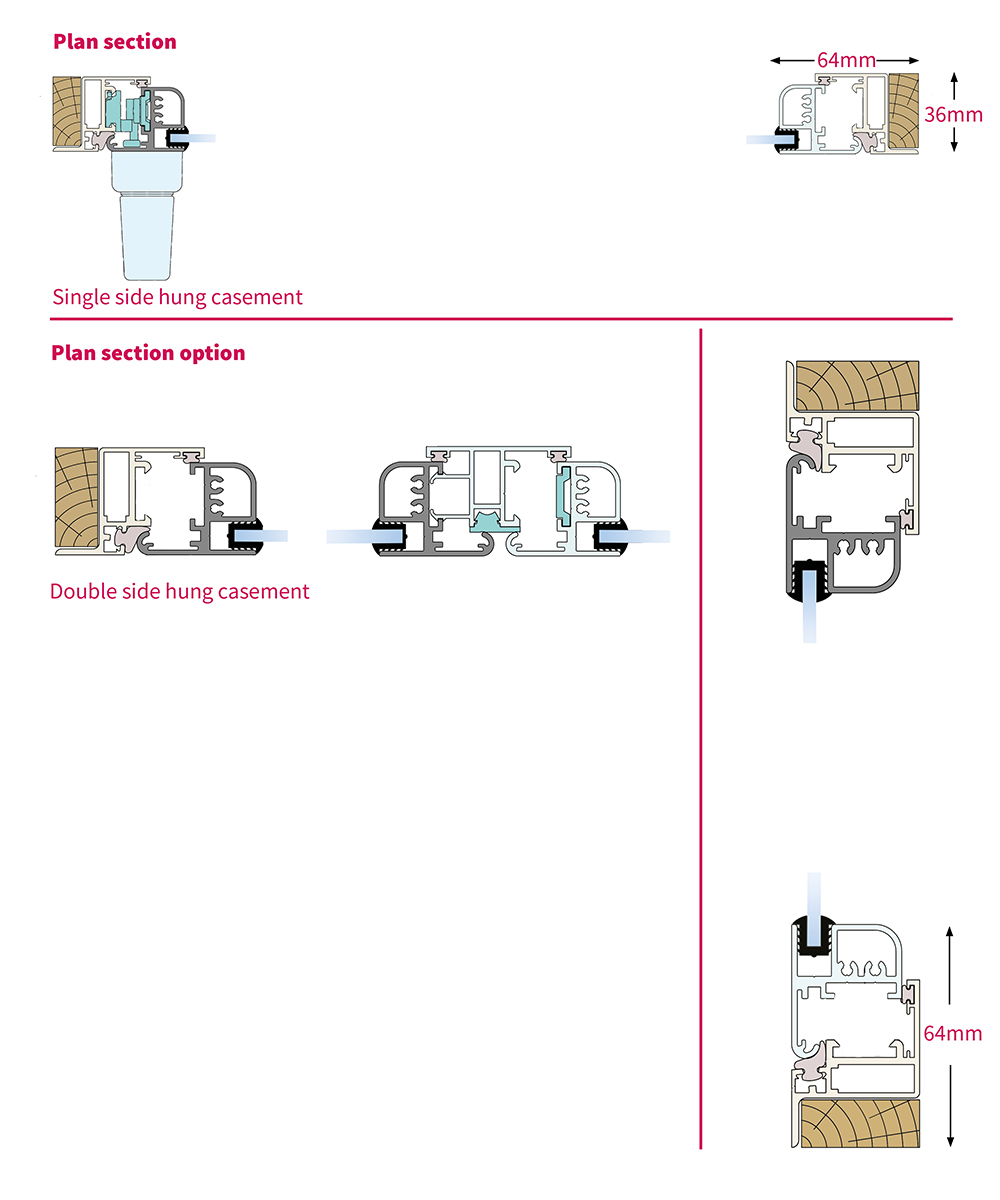

Section diagramsSelectaglaze secondary glazing Series 45 slimline hinged casement section diagrams

Warmer

  INSULATION (U-VALUE) CALCULATED IN COMBINATION WITH A PRIMARY WINDOW AT BRFC SAMPLE SIZE OF 1430 x 1230MM
GLASS METAL PRIMARY WINDOW TIMBER PRIMARY WINDOW
 4 - 6.8mm 2.85 W/m2K   2.58 W/m2K
 4 - 6.8mm low-E 1.91 W/m2K  1.78 W/m2K

Quieter

NOISE INSULATION MEASURED IN COMBINATION WITH A PRIMARY WINDOW
GLASS 50MM CAVITY 100MM CAVITY 200MM CAVITY
 4 - 6.4mm  41 dB (Rw)  45 dB (Rw)  47 dB (Rw)
 6.4 Acoustic - 6.8mm  42 dB (Rw)  46 dB (Rw)  48 dB (Rw)

Safer

SECURITY PERFORMANCE (MAXIMUM ACHIEVABLE, CONTACT SELECTAGLAZE FOR SPECIFICATION REQUIREMENTS)
  TEST STANDARD
INTRUDER PAS24:2022 Secure by Design (accredited police preferred product). Single side hung only
BLAST ISO 16933 EXV 33 (single side hung only)
BALLISTIC N/A
FIRE N/A
  • H6 Slimline Handle (Lockable)
  • H7 Non-Locking Handle
  • H8 Locking Handle
  • H9 Rosette (Square Drive/Removable Key)
  • H12 Peardrop Handle (Allen Key Lockable)
  • H15 Reeded Handle (Allen Key Lockable)
  • H16 Monkeytail Handle (Allen Key Lockable)
  • H18 Vivo Low Profile Handle
  • H21 Flush Lock with Cover Disc
  • H22 Flush Lock with Security Cover Plate
  • L7 Spring Catch
ITEMS FINISHES
H6 Slimline Handle (Lockable) White Black Gold Polished chrome Satin chrome
H7 Non-Locking Handle  Match frame colour
H8 Lockable Handle White Black
H9 Rosette (Square Drive/Removable Key) Match frame colour
H12 Peardrop Handle (Allen Key Lockable) Polished Brass Polished chrome
H15 Reeded Handle (Allen Key Lockable) Polished brass Polished chrome Satin chrome
H16 Monkeytail Handle (Allen Key Lockable) Black
H18 Vivo Low Profile Handle Polished chrome Satin chrome Match frame colour
H21 Flush Lock with Cover Disc H22 Flush Lock with Security Cover Plate Match frame colour

Looking for more?

To view the coupling guide and other documents available, please visit the technical downloads.

Go to technical downloads
