An extremely slim hinged casement unit with flush hinges designed to fit within the staff bead of a traditional sash window.

Recommended maximum frame sizes (mm)

  Height (mm) Width (mm)
Single   2000   1000

Glazing Range

4 mm

Frame Finishes

Standard white (HIPCA semi-gloss). Any standard powder paint, wood grain or anodised finish to order.

Gallery

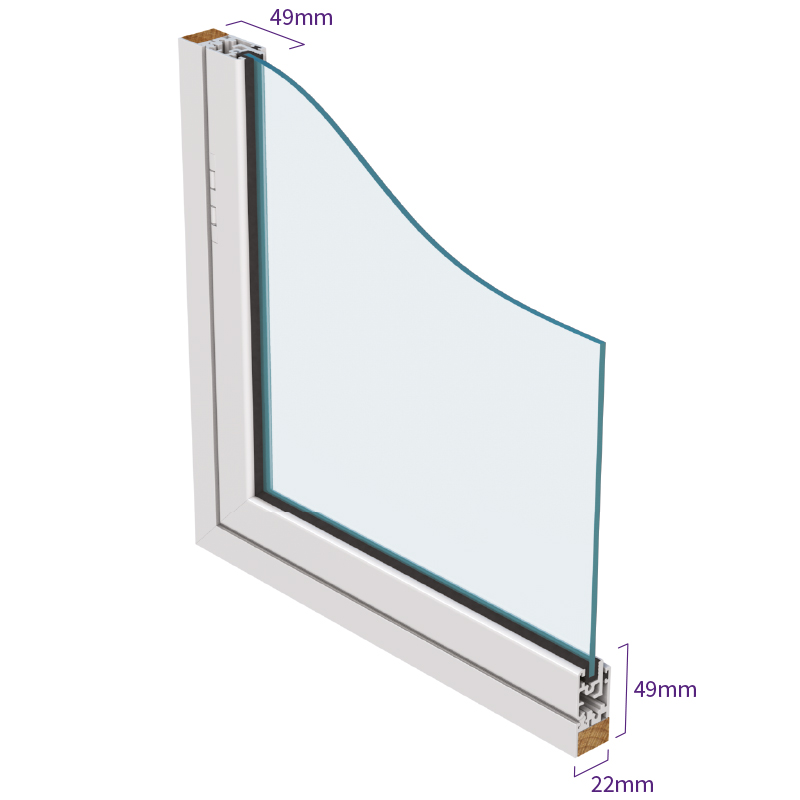

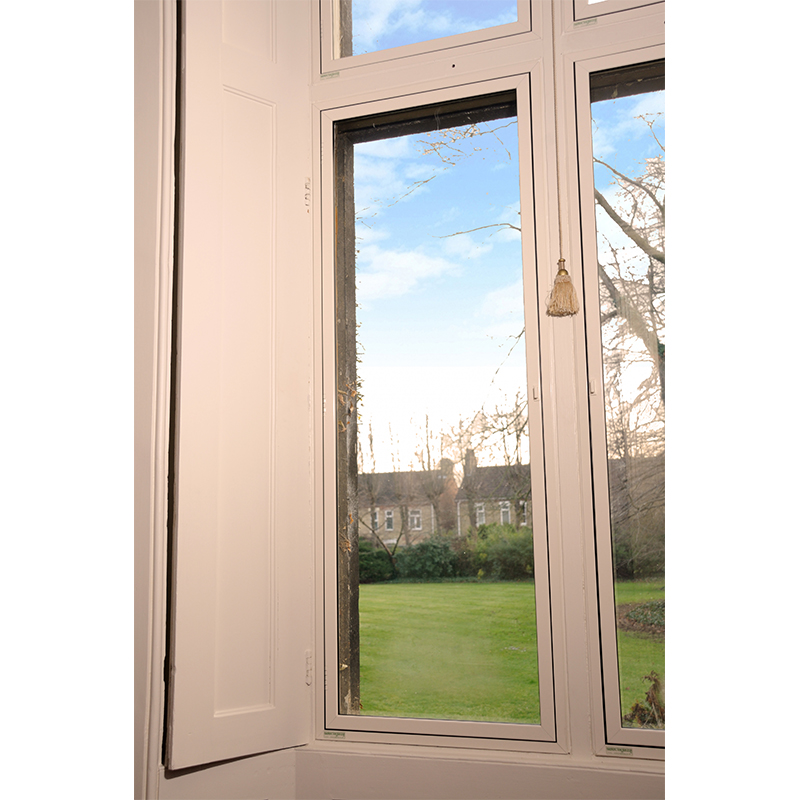

Series 47 Heritage Hinged Casement Isometric Series 47 heritage hinged casement, grade 2 listed property in Peterborough

Styles available

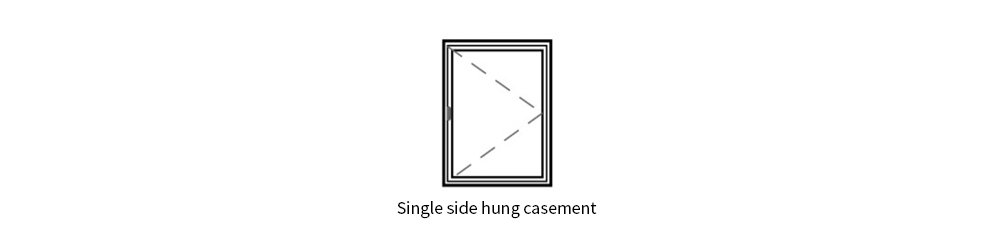

Side Hung Casement

Section diagrams

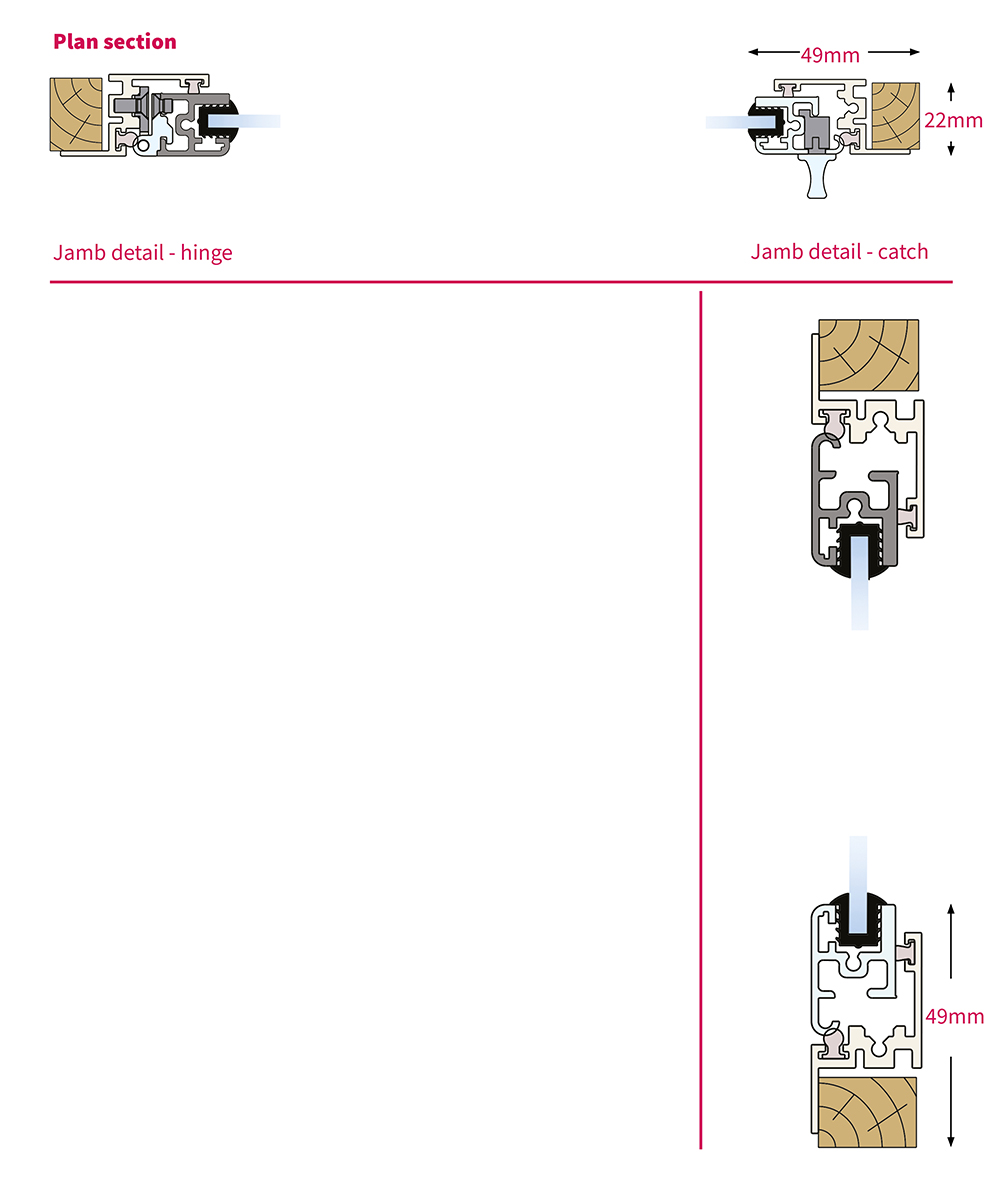

Selectaglaze secondary glazing Series 47 heritage hinged casement section diagrams

Warmer

The Series 47 window has not yet been assessed for thermal insulation.

Quieter

The Series 47 window has not yet been assessed for noise insulation but performance will generally be limited by its close proximity to the existing window.

Safer

SECURITY PERFORMANCE (MAXIMUM ACHIEVABLE, REFER TO SELECTAGLAZE FOR SPECIFICATION REQUIREMENTS)
  TEST STANDARD
INTRUDER   N/A
BLAST N/A
BALLISTIC N/A
FIRE N/A
  • H19 Removable Catch
ITEMS FINISHES
H19 Removable Catch Match frame colour

Looking for more?

To view the coupling guide and other documents available, please visit the technical downloads.

Go to technical downloads
