Hinged Casement

Hinged casements allow full access to the outer window or door and can treat windows, even of large size, with a single pane to avoid mullion or transom lines that can be a problem for heritage properties. Colour matched flush hinges minimise visual impact. When specifying casement systems consider how bulkheads will affect design and how window treatments such as curtains and blinds can be set to allow opening clearance.

Slimline 45 (HC)

A slim framed hinged casement system with a maximum height of 2200mm and options for single, double, top hung, bottom hung and stable door arrangements. It offers a very attractive treatment for traditional sash windows. The single casement is a Police Preferred Specification under the Secured by Design initiative (SBD).
Read more
S45 Slimline LO Isometric

Heavy Duty 41 (HC)

A hinged casement system designed to treat large windows and doors up to 2700mm high. Accepts glass up to 12.8mm (single) or 28mm (sealed unit) for higher levels of noise and thermal insulation. Available as single, double, top hung, bottom hung and stable door arrangements. The single and double casements are Police Preferred Specifications under the Secured by Design initiative (SBD).
Read more
Series 41 Hinged Casement isometric image

Heritage 47 (HC)

An extremely slim hinged casement unit that can fit within the staff bead position of a traditional sash window. Maximum frame size of 2000mm (h) x 1000mm (w).
Read more
Series 47 Heritage Hinged Casement Isometric

Security 50 (HC)

A hinged casement system designed with discreet but significant security features and capable of treating windows and doors up to 3600mm high. Accepts glass up to 15.04mm (single glass) or 28mm (sealed unit) for higher levels of noise and thermal insulation. Available as single, double, top hung and bottom hung arrangements. Single side hung units provides intruder resistance to levels SR1 and SR2 of LPS 1175 and blast mitigation to level EXV 15 of ISO 16933. Double casements achieve blast mitigation to level EXV 25 of ISO 16933.
Read more

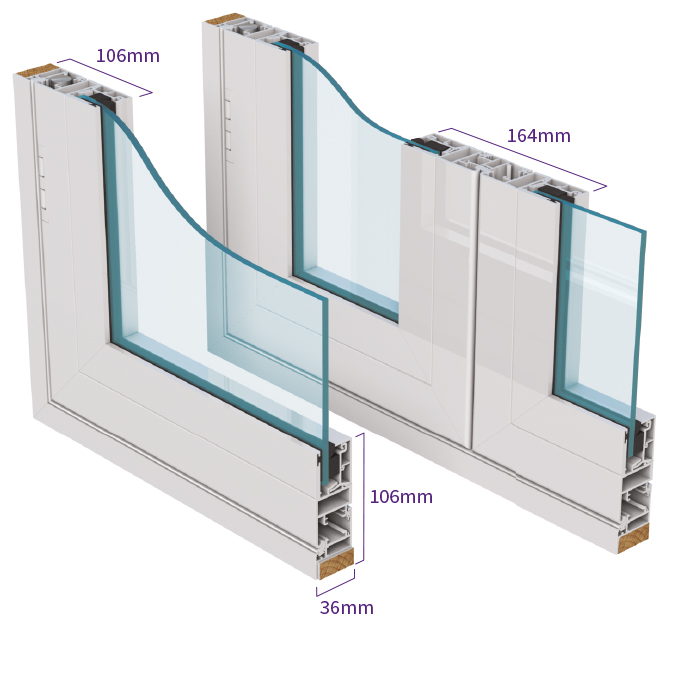

Series 50 side hung casement secondary glazing isometric

Product Range
