Tilt-in 60 (VS)

A vertical sliding unit operating on spring balances that allows the individual panes to tilt-in on safety stays to assist with cleaning. An ideal solution for windows with unequal pane sizes or when the frame has to be fitted close to the outer window.

Recommended maximum frame sizes (mm), subject to balance capacity

Height (mm) Width (mm)
3000   1500

Balance Capacity

Maximum area dictated by 20kg balance capacity per sash.

Glazing Range

4 mm to 6.8 mm

Frame Finishes

Standard white (HIPCA semi-gloss). Any standard powder paint, wood grain or anodised finish to order.

Vertical Sliding

Vertical Sliding Product

Gallery

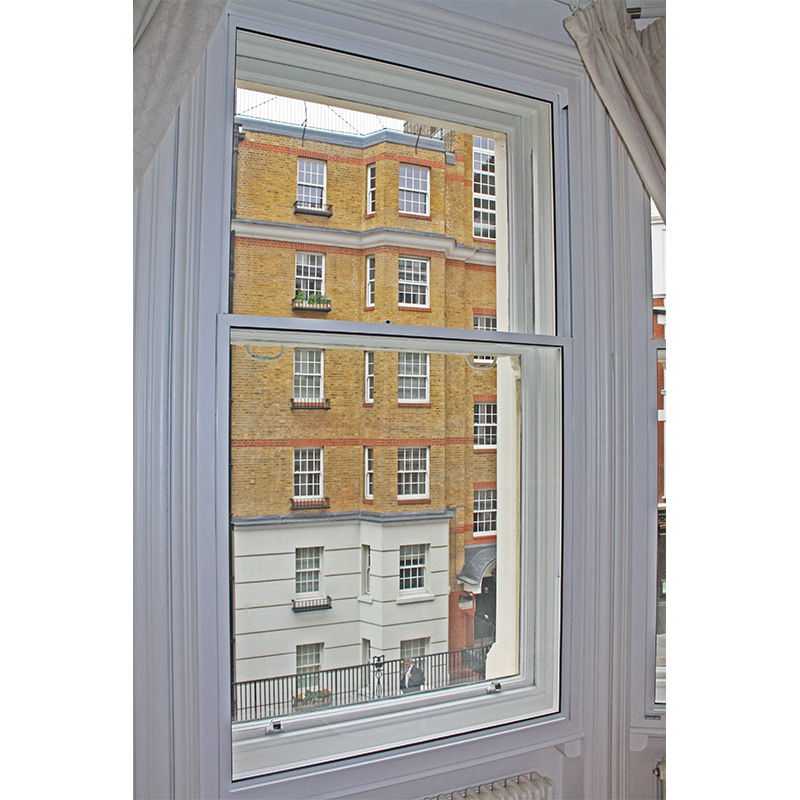

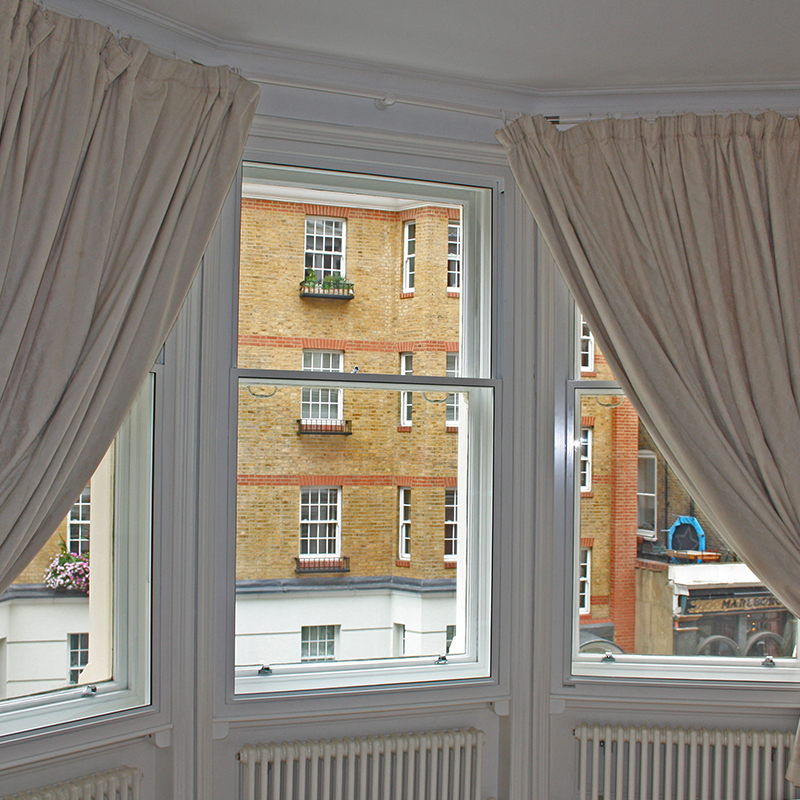

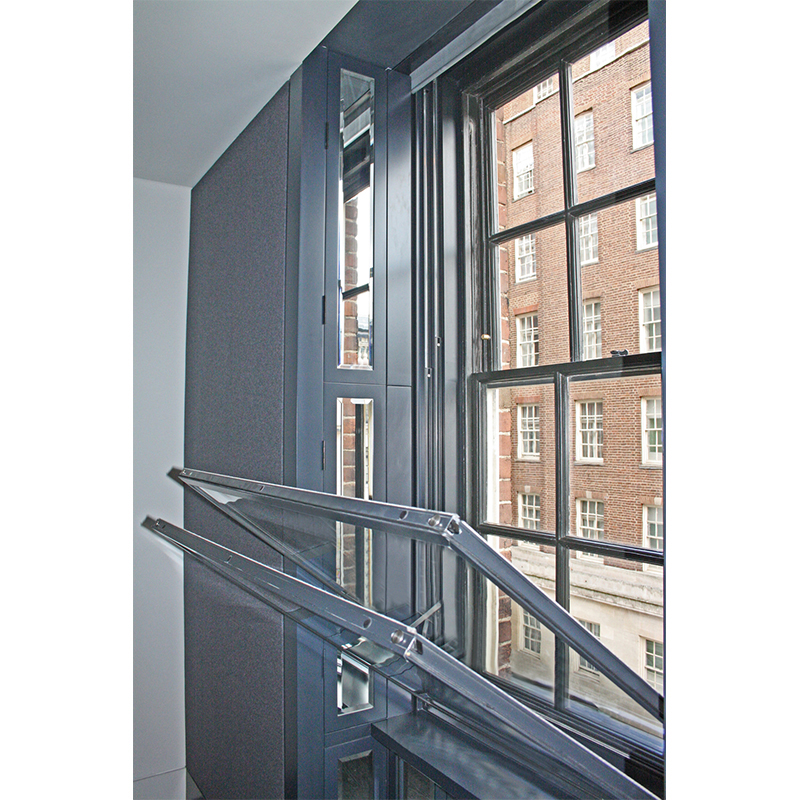

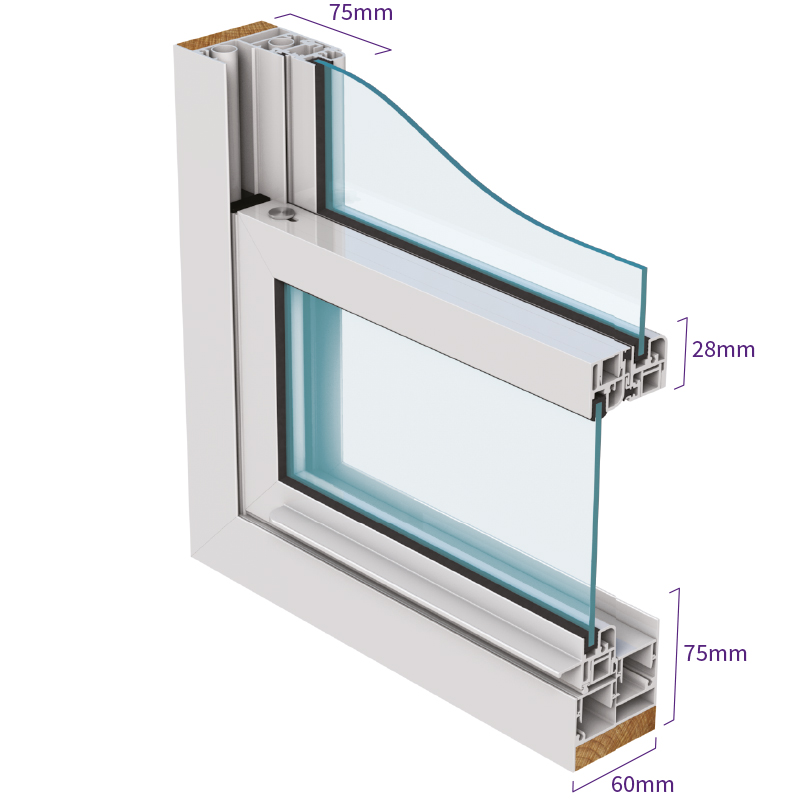

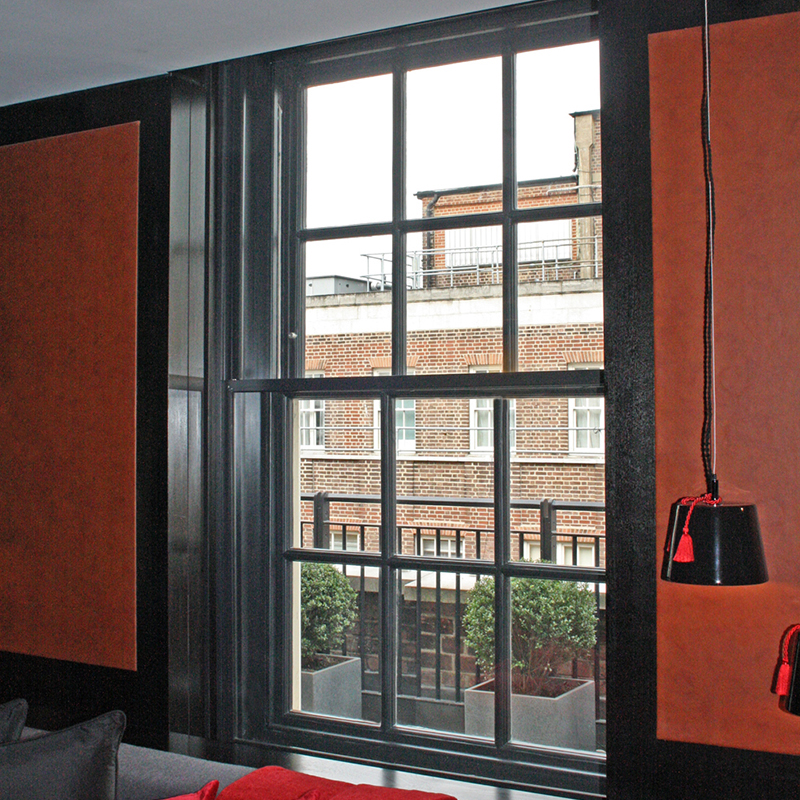

Series 60 tilt in vertical sliding unit isometric Sash window insulation at Grosvenor House - series 60 tilt in secondary glazing Grosvenor House Apartments treated with noise reducing secondary glazing - Series 60 vertical sliding units Ridgemount Gardens secondary glazing with series 60 tilt-in units installed Ridgemount gardens with series 60 tilt in secondary glazing

Styles available

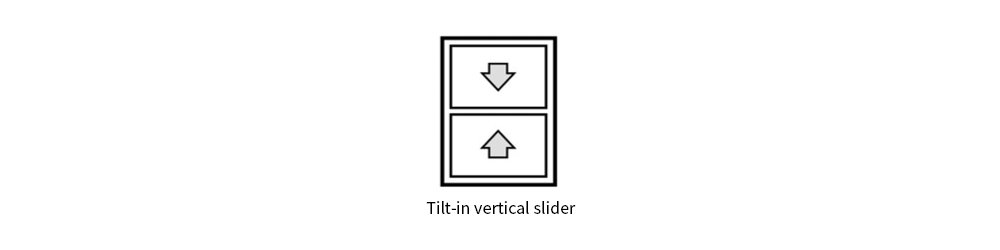

Tilt-in vertical secondary glazing style

Section diagrams

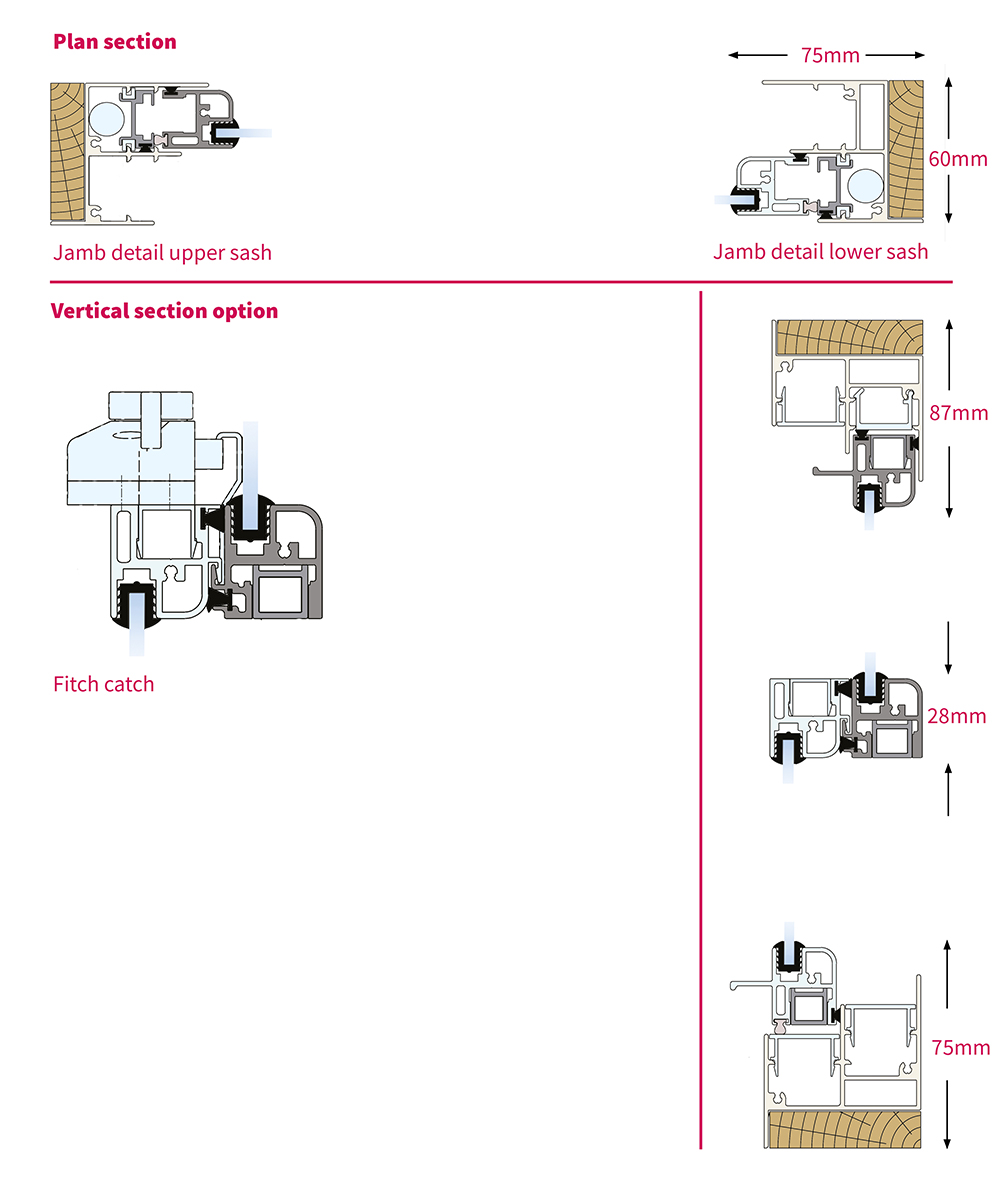

Selectaglaze secondary glazing Series 60 tilt-in vertical sliding section diagrams

Warmer

INSULATION (U-VALUE) CALCULATED IN COMBINATION WITH A PRIMARY WINDOW AT BRFC SAMPLE SIZE OF 1430 X 1230MM
GLASS METAL PRIMARY WINDOW TIMBER PRIMARY WINDOW
 4 - 6.8mm  2.92 W/m2K  2.64 W/m2K
 4 - 6.8mm low-E  1.94 W/m2K  1.81 W/m2K

Quieter

NOISE INSULATION MEASURED IN COMBINATION WITH A PRIMARY WINDOW
GLASS 50MM CAVITY 100MM CAVITY 200MM CAVITY
 4 - 6.4mm  40 dB (Rw)  44 dB (Rw)  46 dB (Rw)
 6.8mm  41 dB (Rw)  45 dB (Rw)  47 dB (Rw)

Safer

SECURITY PERFORMANCE (MAXIMUM ACHIEVABLE, CONTACT SELECTAGLAZE FOR SPECIFICATION REQUIREMENTS)
  TEST STANDARD
INTRUDER Non certified second barrier to entry
BLAST N/A
BALLISTIC N/A
FIRE N/A
  • H1 Integral Finger Pull
  • H17 Cranked D Handle
  • L2 Fitch Catch (Lockable)
ITEM FINISHES
H1 Integral Finger Pull H17 Cranked D Handle Match frame colour
L2 Fitch Catch (Lockable) White Black Gold Polished chrome Brushed steel

Looking for more?

To view the coupling guide and other documents available, please visit the technical downloads.

Go to technical downloads
