Security 95 (VS)

A high security vertical sliding unit supported by high capacity spring balances providing certified levels of blast mitigation and intruder resistance equivalent to protection levels offered by strong bars and grilles. A minimum frame to frame gap of 75mm is recommended for access to the outer window.

Recommended maximum frame sizes (mm), subject to balance capacity

Height (mm) Width (mm)
3000  2600

Balance Capacity

Maximum area dictated by standard 50kg balance capacity or 65kg to special order.

Glazing Range

9.5mm to 12mm

Frame Finishes

Standard white (HIPCA semi-gloss). Any standard powder paint, wood grain or anodised finish to order. Secondary glazing products

Vertical Sliding

Vertical Sliding Product

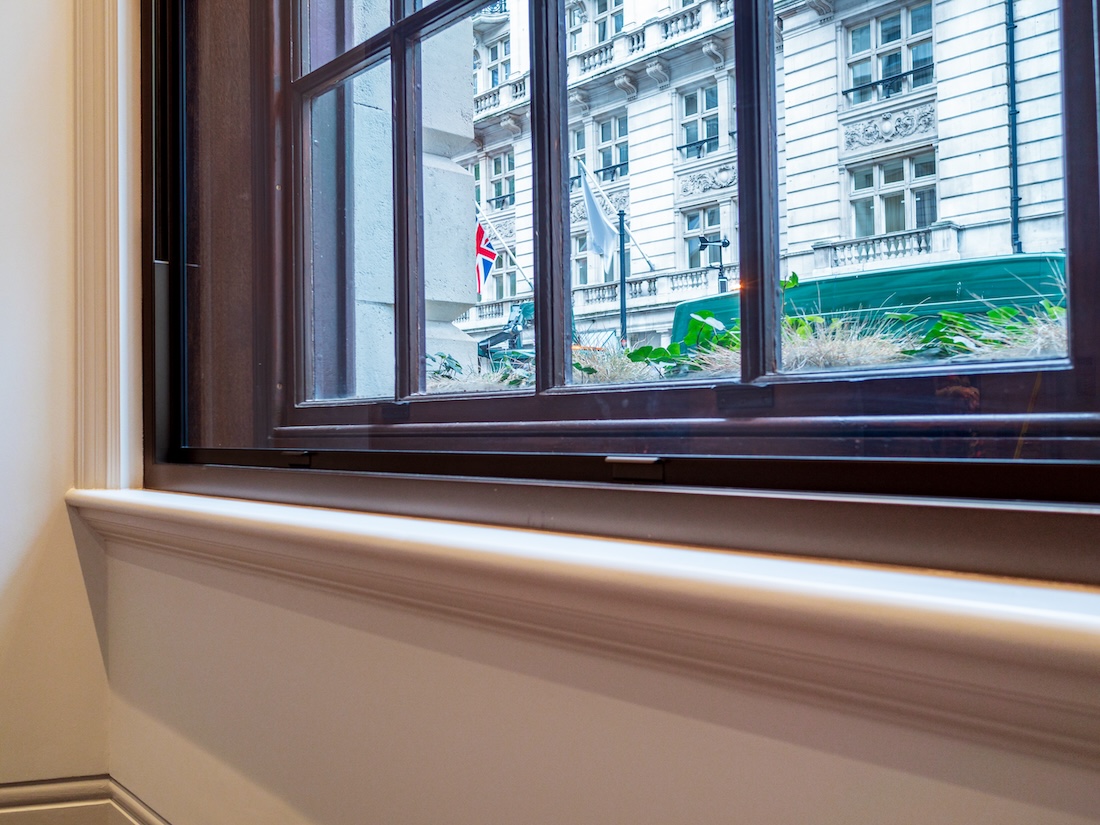

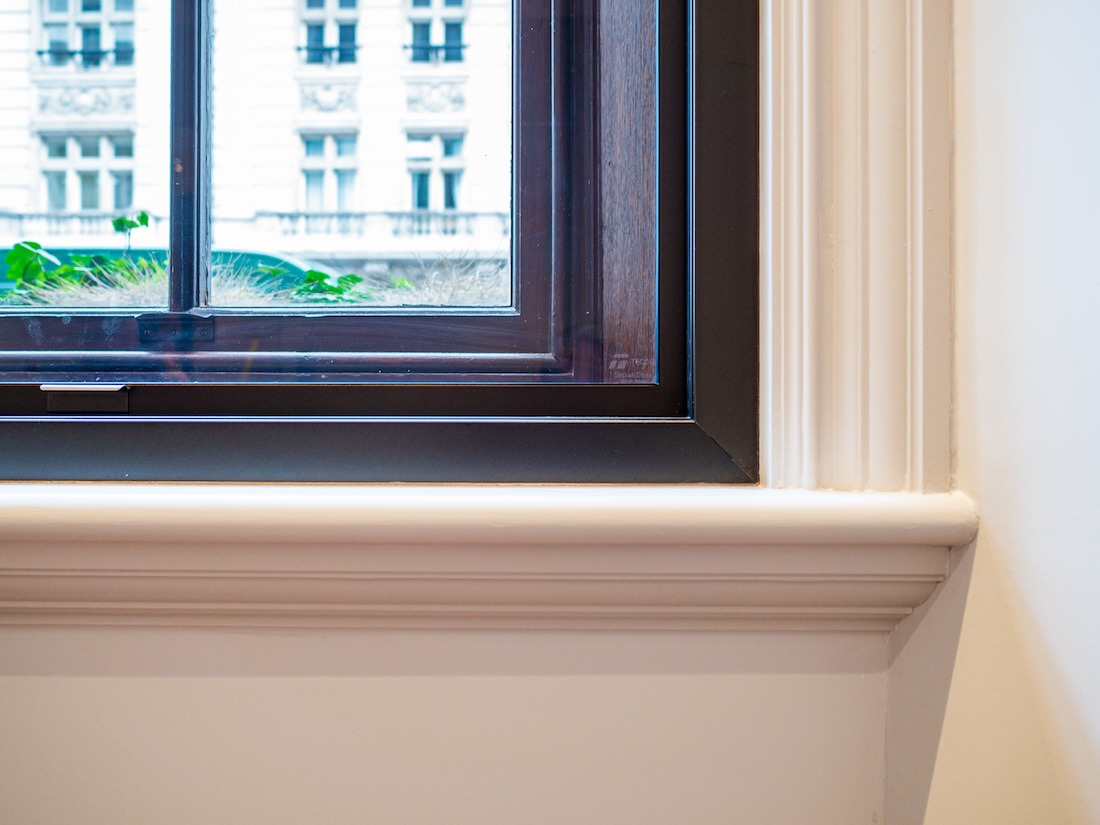

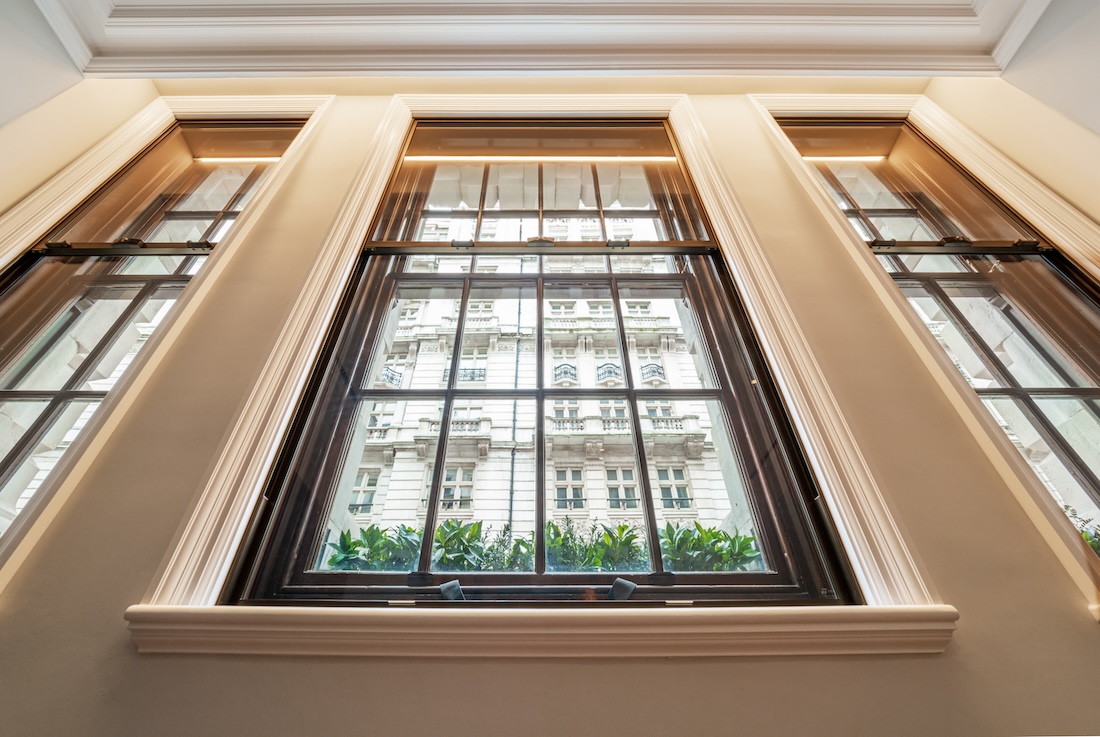

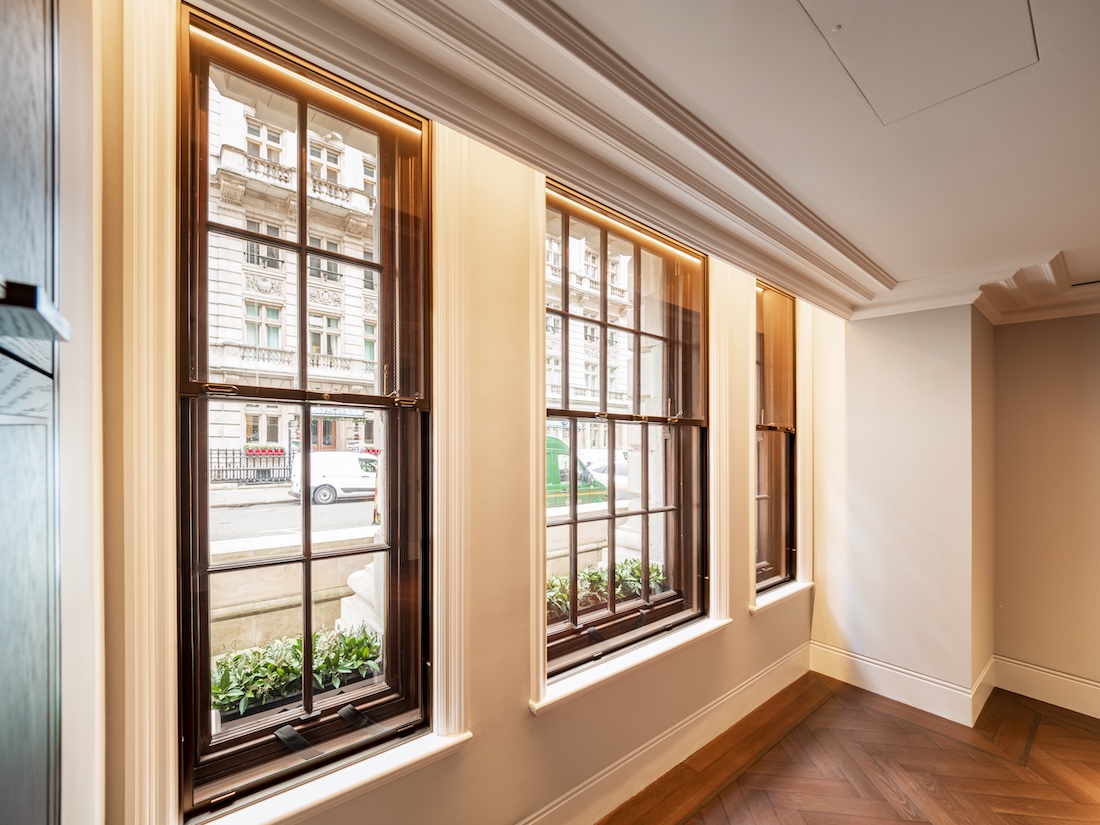

Gallery

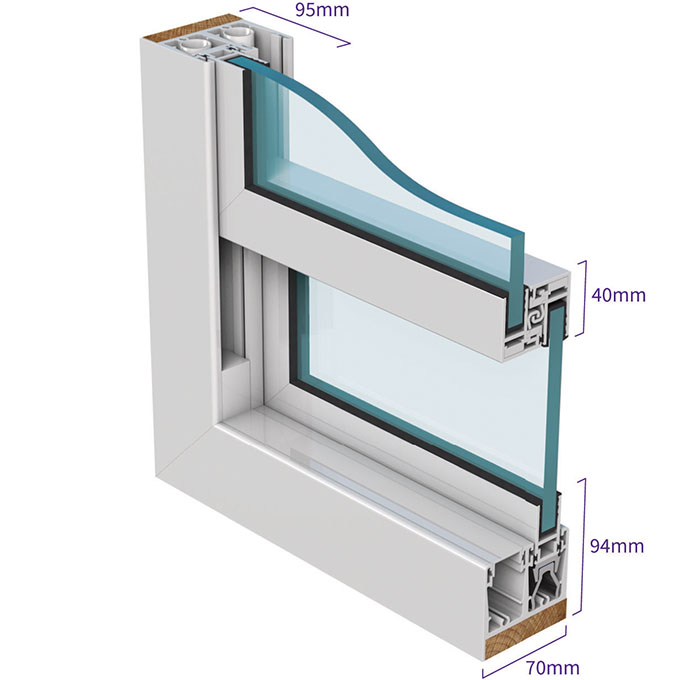

S95 Security VS Isometric Series 95 Vertical Sliding Series 95 Vertical Sliding

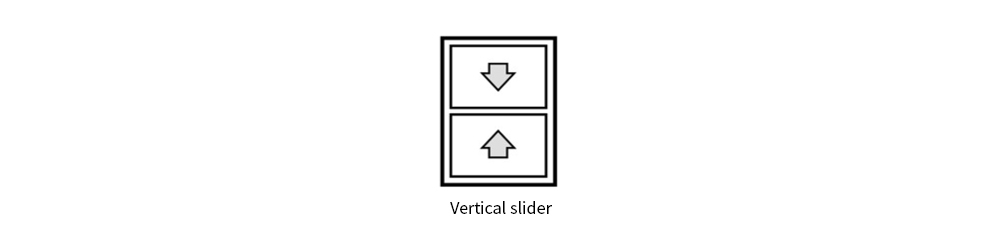

Styles available

Vertical secondary glazing standard style

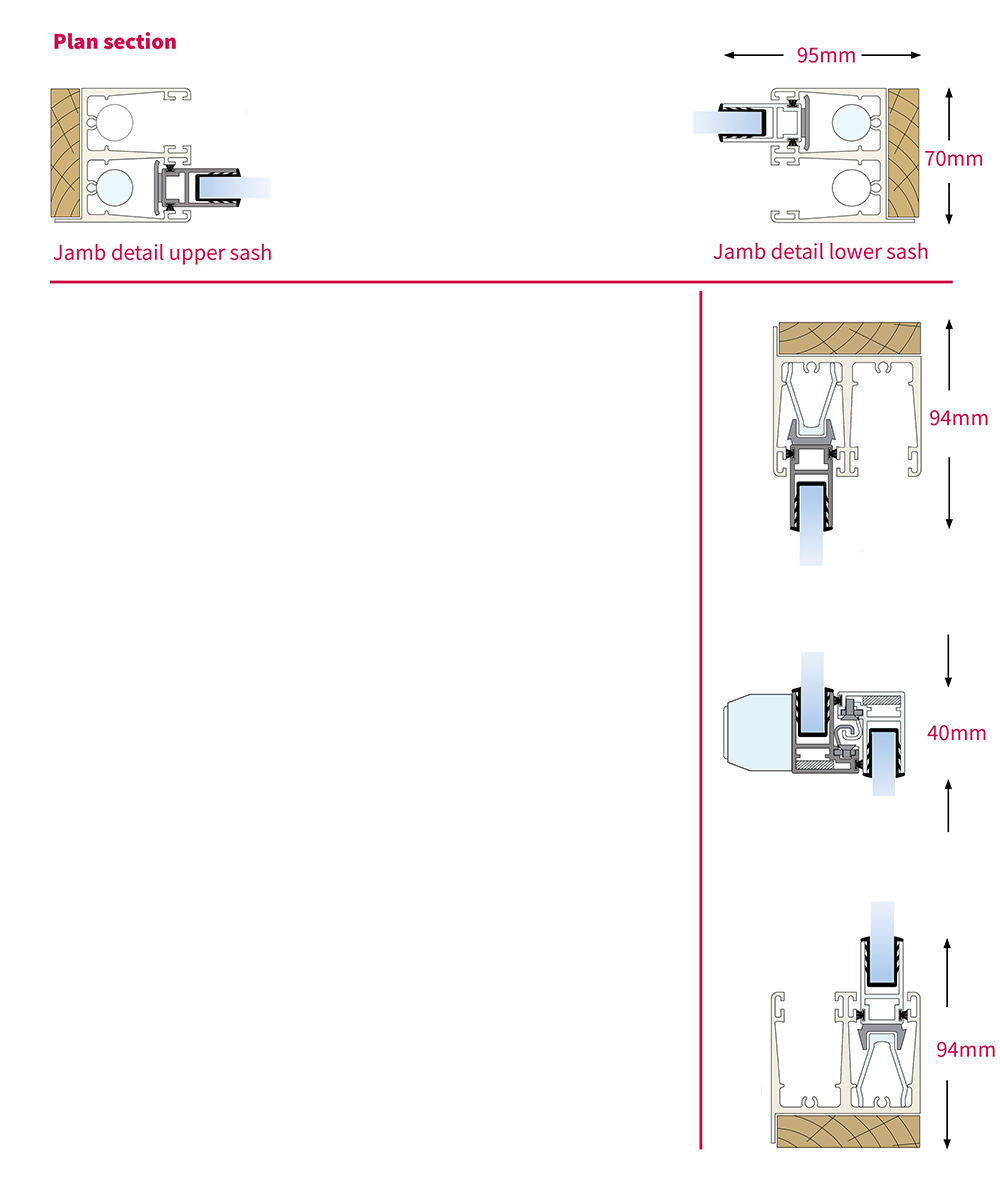

Section diagrams

Selectaglaze secondary glazing Series 95 high security vertical sliding section diagrams

Warmer

INSULATION (U-VALUE) CALCULATED IN COMBINATION WITH A PRIMARY WINDOW AT BRFC SAMPLE SIZE OF 1430 x 1230MM
GLASS METAL PRIMARY WINDOW TIMBER PRIMARY WINDOW
 9.5 - 12mm  3.00 W/m2K  2.70 W/m2K
 9.5 - 12mm low-E  1.97 W/m2K  1.84 W/m2K

Quieter

NOISE INSULATION MEASURED IN COMBINATION WITH A PRIMARY WINDOW
GLASS 50MM CAVITY 100MM CAVITY 200MM CAVITY
 9.5mm  41 dB (Rw)  45 dB (Rw)  47 dB (Rw)
 11.3 - 12.04mm  42 dB (Rw)  46 dB (Rw)  48 dB (Rw)

Safer

SECURITY PERFORMANCE (MAXIMUM ACHIEVABLE, CONTACT SELECTAGLAZE FOR SPECIFICATION REQUIREMENTS)
  TEST STANDARD
INTRUDER LPS 1175 SR1
BLAST ISO 16933 EXV 25
BALLISTIC N/A
FIRE N/A

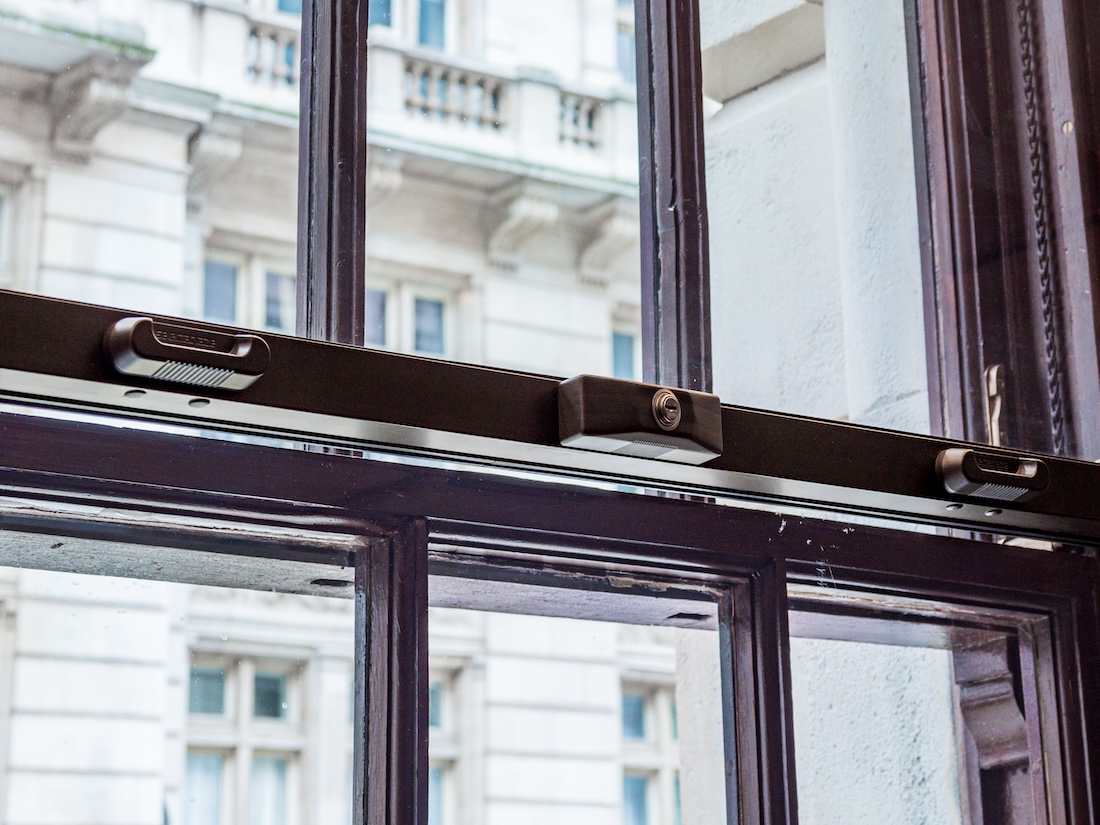

  • H4 Moulded Handle
  • H10 Finger Pull

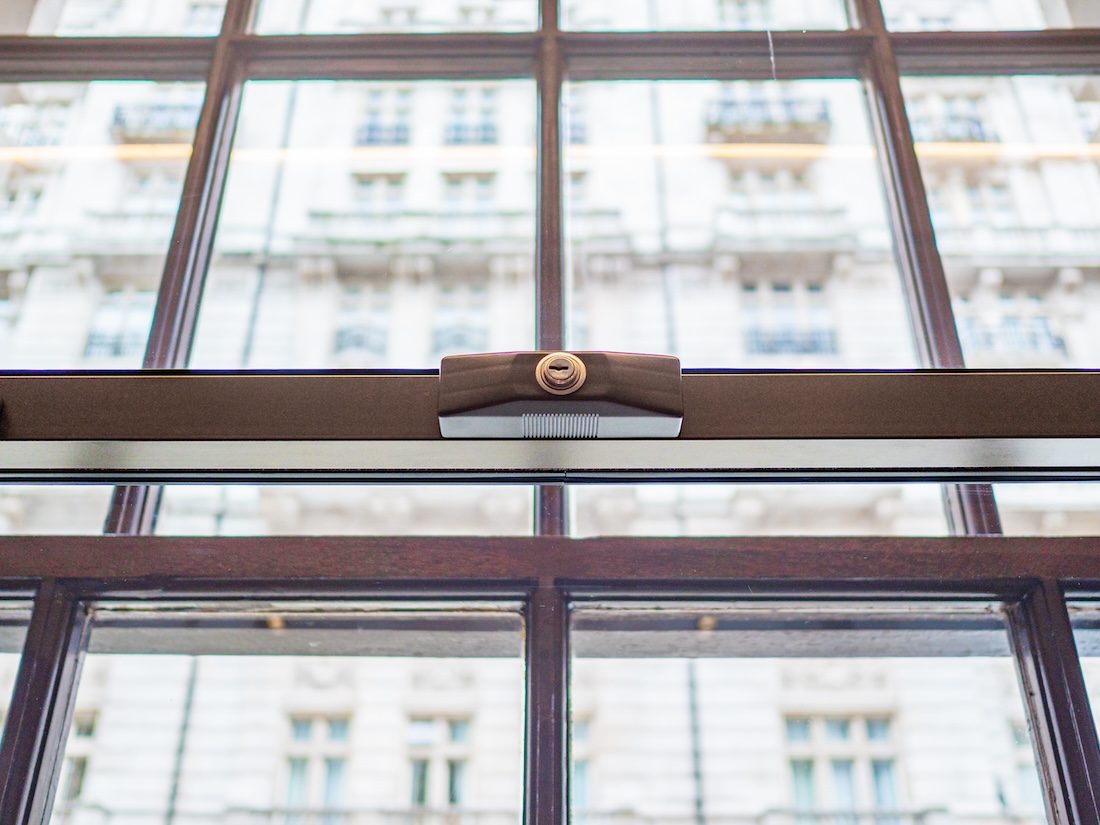

  • H24 Locking Actuator
ITEM FINISHES
H4 Moulded Handle H10 Finger Pull H24 Locking Actuator      Match frame colour

Looking for more?

To view the coupling guide and other documents available, please visit the technical downloads.
