Two centred curves

Gothic Arches

Gothic - Can be Equilateral, Lancet or Drop Arch.

  • Fixed Panel

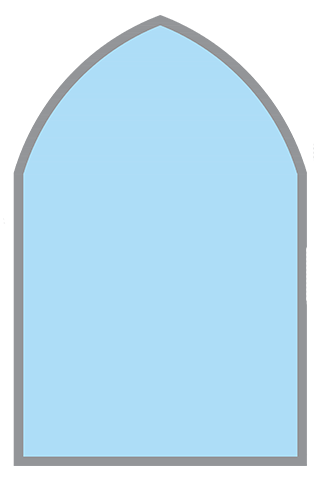

    Selectaglaze two centred gothic arched secondary glazing - fixed light
    Minimal sightlines but consideration needs to given for cleaning access, ideal for use in combinations.
    Unit Options Min Radius
    Slimline 46 (FL) 220mm
    Heavy Duty 42 (FL) 400mm

  • Lift Out

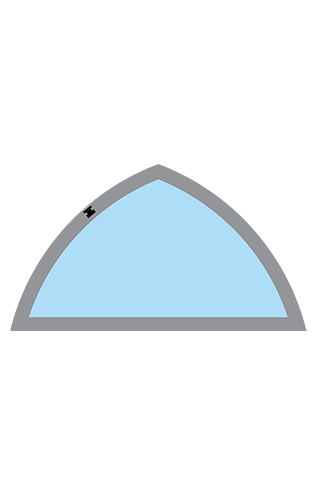

    Selectaglaze two centred gothic arched secondary glazing - lift out
    A removable sash provides occasional access for ventilation, cleaning and maintenance.
    Unit Options Min Radius
    Slimline 45 (LO) 300mm
    Heavy Duty 41 (LO) 450mm

  • Demountable Fixed Panel

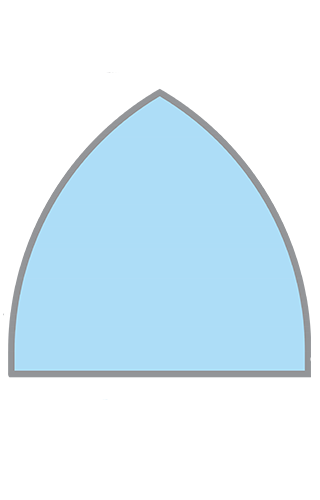

    Selectaglaze two centred gothic arched secondary glazing - demountable fixed light
    A removable sash provides occasional access for cleaning and maintenance
    Unit Options Min Radius
    Heavy Duty Security 43 (DFL) 750mm

  • Vertical Slider

    Selectaglaze two centred gothic arched secondary glazing - vertical slider
    The spring balances restrict opening on each sash to Dimension ‘A’ less a stop position.
    Consider access to window catches and for cleaning.
    Unit Options Min Radius
    Slimline 20 (VS) 660mm
    Heavy Duty 90 (VS) 470mm

  • Hinged Casement

    Selectaglaze two centred gothic arched secondary glazing - hinged casement
    A side hung unit provides clean lines and ready access.
    Dimension ‘A’ must be not less than the width of the window.
    Unit Options Min Radius
    Heavy Duty 41 (HC) 450mm
    Slimline 45 (HC) 300mm
    Security 50 (HC) 400mm

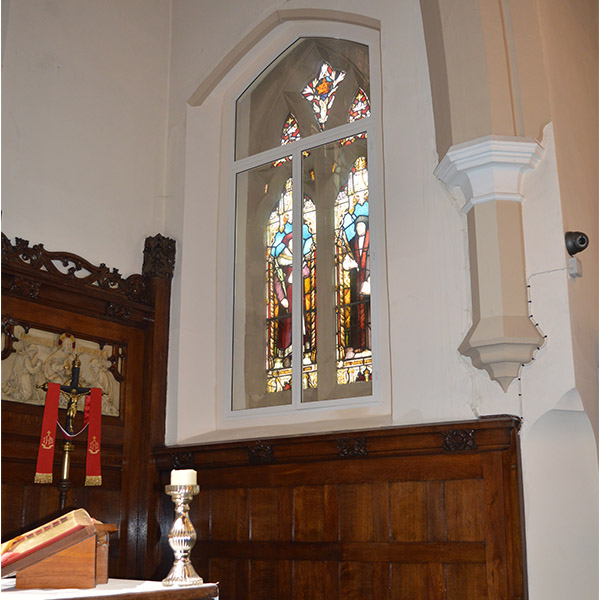

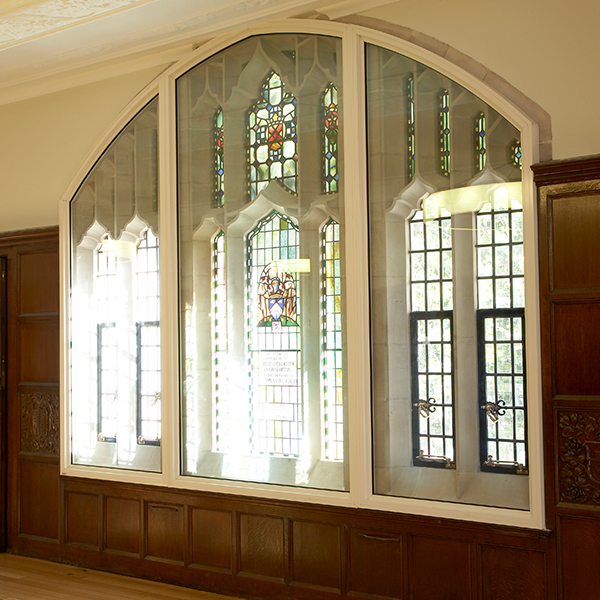

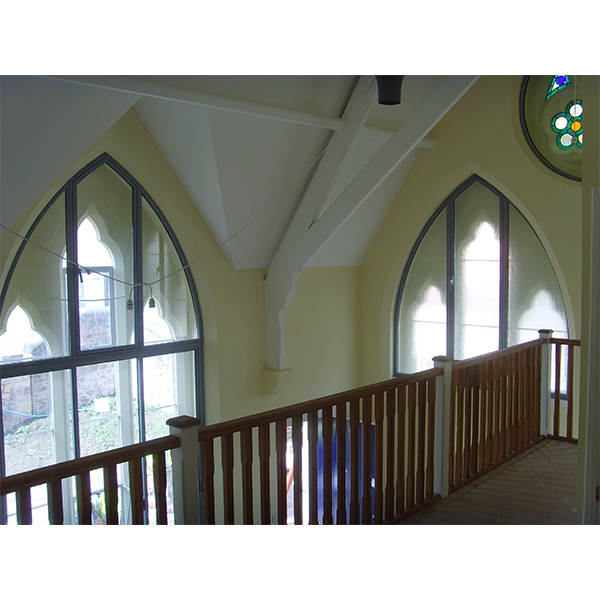

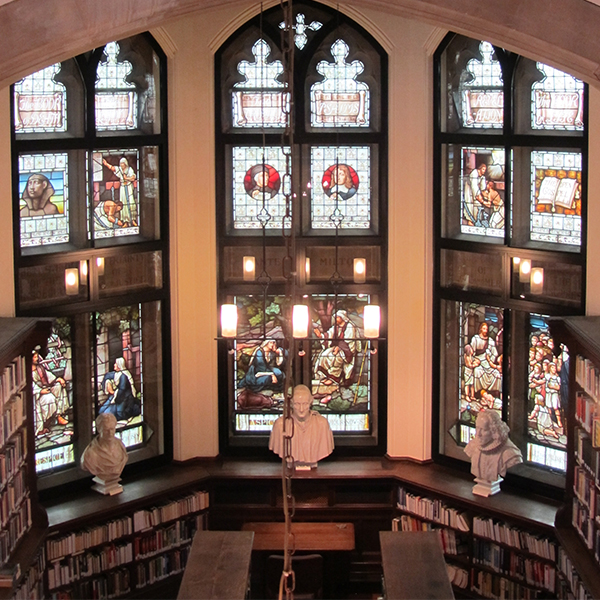

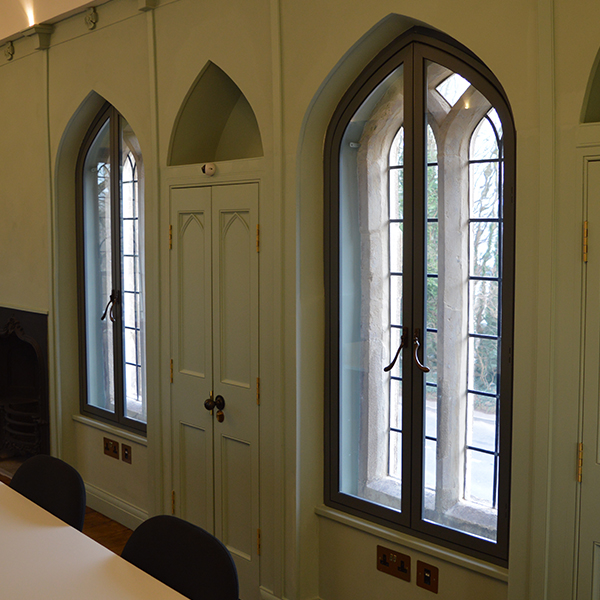

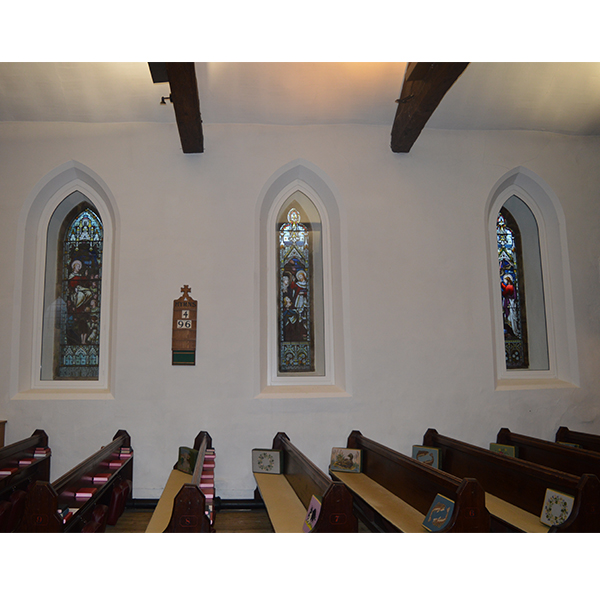

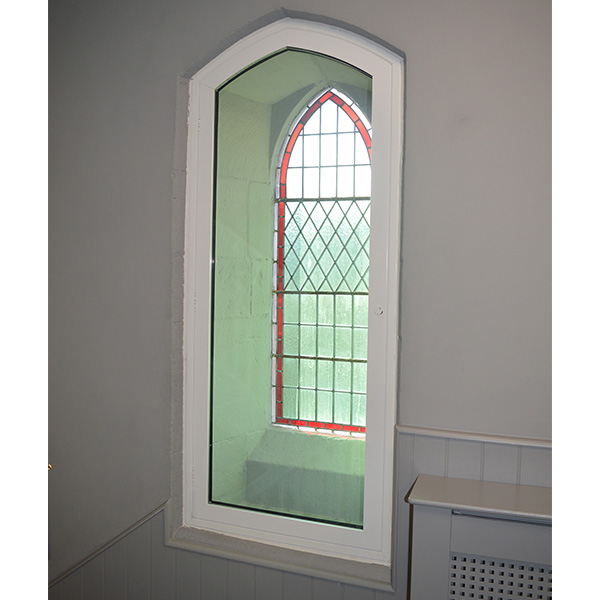

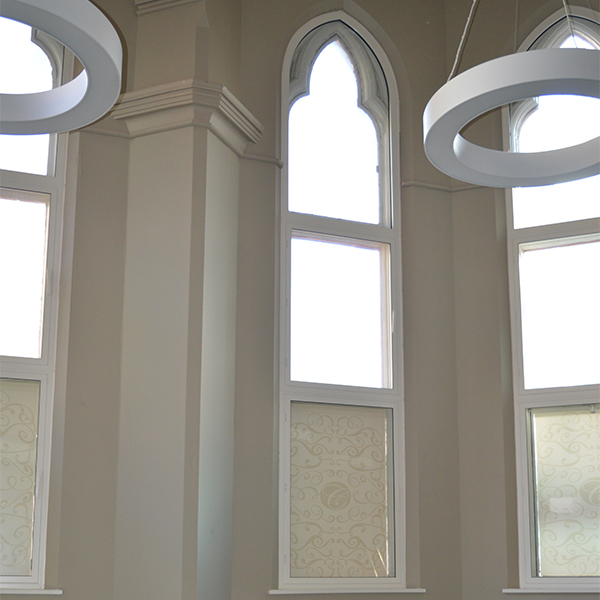

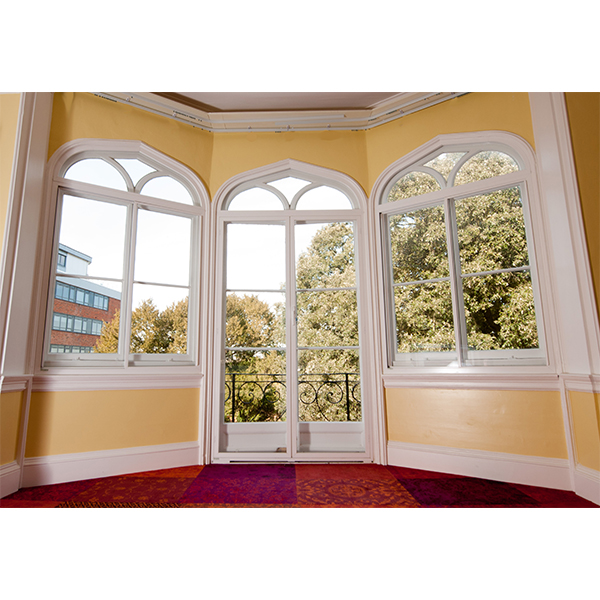

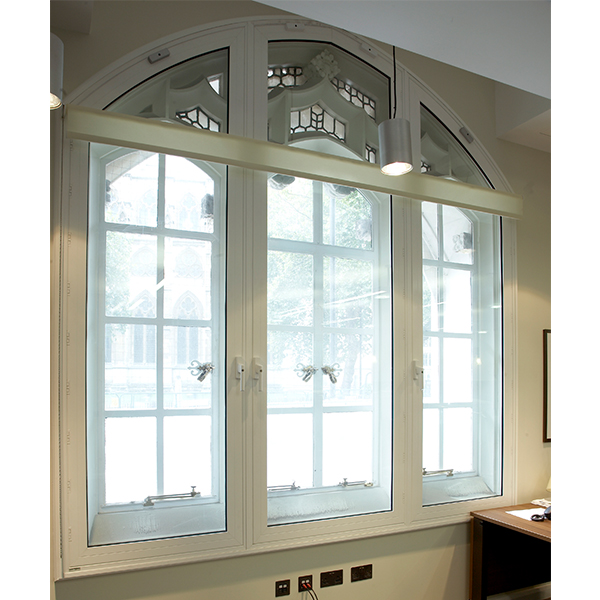

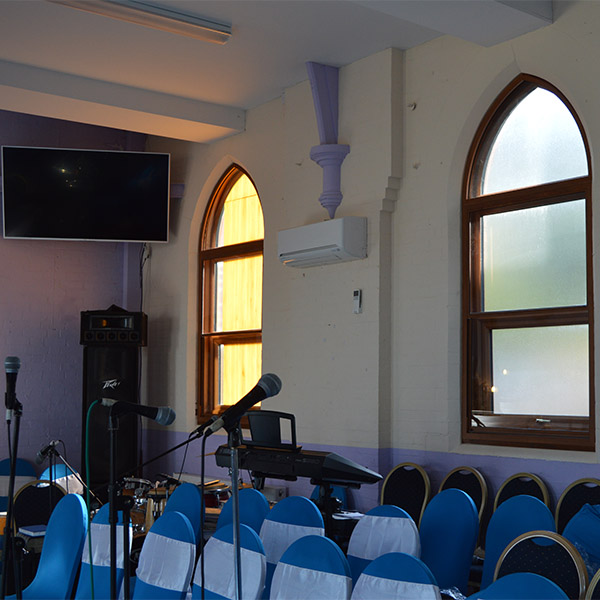

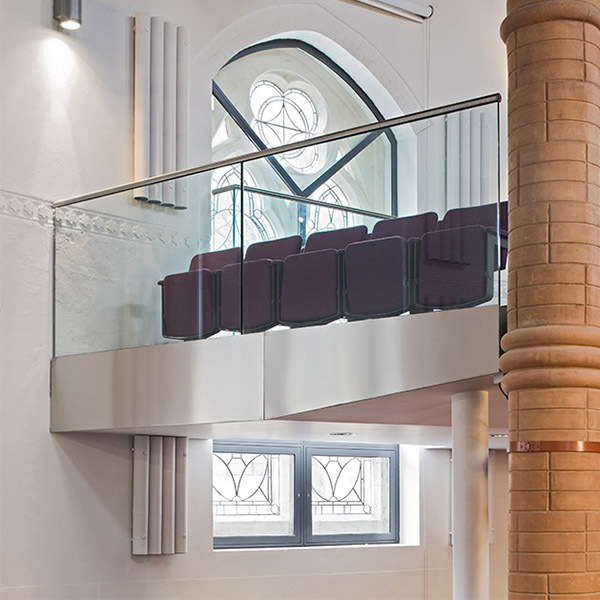

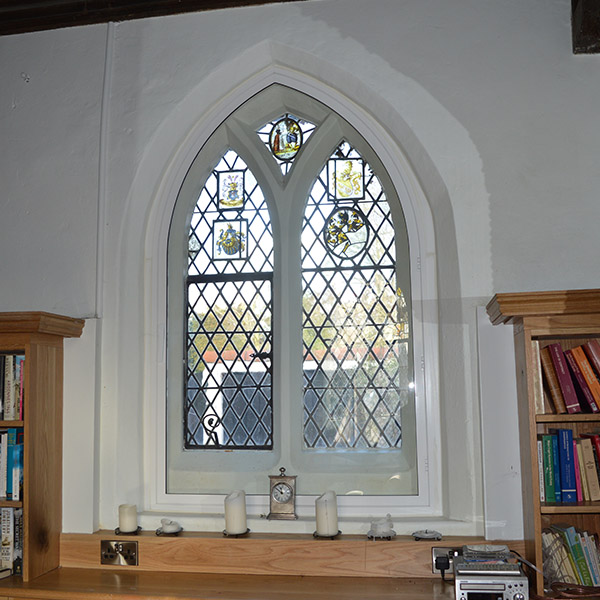

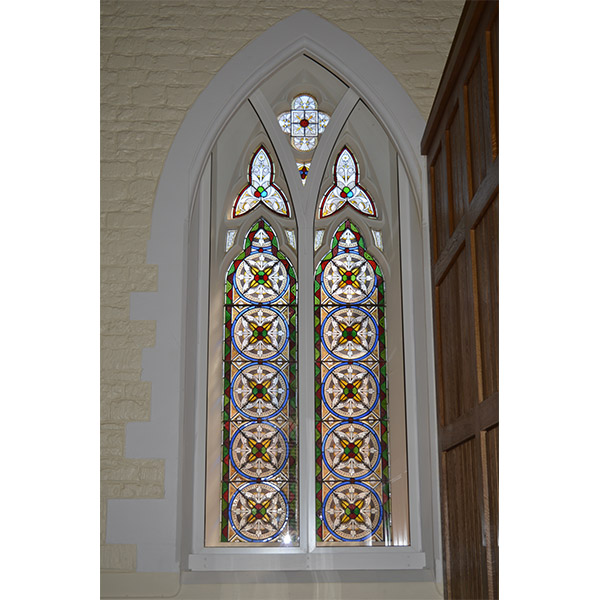

Two centred curve gothic arched window Supreme Court Admin Office Two centred curve gothic arched window Supreme Court Lobby Two centred curve gothic arched window Supreme Ashton Lodge Two centred curve gothic arched window Greyfriars Hotel Two centred curve gothic arched window Harris Manchester College Library Two centred curve gothic arched window Hindmarsh Hall Two centred curve gothic arched window Jesus Church Two centred curve gothic arched window Northleze Primary School Two centred curve gothic arched window Reading Town Hall Two centred curve gothic arched window St Georges Church Two centred curve gothic arched window St Lukes Church Two centred curve gothic arched window St Michaels Church Two centred curve gothic arched window St Patricks Church Two centred curve gothic arched window The Priory
