Hinged Casement Frame

Hinged Casement

Series 41: Heavy duty framing system suitable for large windows and doors; supports thicker glass for higher noise insulation and both single and double casements accredited to Secured by Design.
Offers full and easy access to an outer window or door. Neat and unobtrusive with single casements having no mullions or transoms to impede the view.
Ranges
Series 41_Section detail

Series 41 Heavy Duty

A versatile heavy duty hinged casement suitable for treating large windows and doors. Neat flush hinges and, if required, flush locks provide clean lines that are suited to many interior styles including clean environments.  Glazing configurations are available that can offer improved acoustics, higher thermal performance, integral blinds and switchable glass. A robust lock option achieves enhanced security and Secured by Design accreditation for both single and double casements.

Recommended maximum frame sizes (mm)

  H W
Single 2700   1500 Link to BIM data
Double 2700 3000 Link to BIM data
Stable Door  2700 1350 Link to BIM data

Glazing Range

6 mm to 12 mm 24mm (sealed glass unit to form triple glazing) 28mm (sealed glass unit to form triple glazing)

Frame Finishes

Standard white (HIPCA semi-gloss). Any standard powder paint, wood grain or anodised finish to order.
  • Series 41 Hinged Casement isometric image
  • Base to Stay Series 41 Hinged Casement - Secondary Glazing Installation
  • Private residence in Oundle Hinged Casement - Series 41 Secondary Windows
  • Ramsgate Library - Series 41 Hinged Casement Secondary Glazed Window
  • St Georges Church - Series 41 Hinged Casement - Secondary Glazing Thermal
  • Series 41 Hinged Casement Secondary Glazing Installation in Cambridge BioLab
  • Series 41 hinged casement secondary windows installed in The Tate Liverpool
  • Hinged Casement - Series 41 for heat retention at Pollen House offices
  • Hinged Casement Secondary Glazed Units Series 41 - Pollen House
  • Base to Stay bedroom - Series 41 Hinged Casement - selectaglaze secondary glazing window for noise insulation
  • Warmer A Series 41 single hinged window will reduce heat loss by up to 50% using standard glass and up to 65% with a thermally efficient glass (low-E).  Further improvements are possible using sealed glass units that create triple glazing. High performance compression seals will almost eliminate drafts and ensure much greater comfort near the window.   The effectiveness of the insulation is measured by U-values, the lower the figure the better the insulation.

    INSULATION (U-VALUE) CALCULATED IN COMBINATION WITH A PRIMARY WINDOW AT BRFC SAMPLE SIZE OF 1430 X 1230MM

    GLASS METAL PRIMARY WINDOW TIMBER PRIMARY WINDOW
     6 - 12mm  2.85 W/m2K   2.58 W/m2K
     6 - 12mm low-E  1.91 W/m2K   1.79 W/m2K
    24-28mm gas filled low-E sealed units  1.73 W/m2K   1.63 W/m2K
    24mm enhanced thermal sealed units  1.34 W/m2K   1.27 W/m2K
    Quieter A Series 41 single hinged window set 100mm apart from the existing window will reduce noise levels by 45dB (decibels) with higher figures achieved using thicker glass. This can achieve World Health Organisation guidelines for quiet living and working environments even in quite challenging noise environments and the twin compression seals remain very effective over long periods.

    NOISE INSULATION MEASURED IN COMBINATION WITH A PRIMARY WINDOW

    GLASS 50MM CAVITY 100MM CAVITY 200MM CAVITY
    6 - 6.4mm  41 dB (Rw)  45 dB (Rw)  47 dB (Rw)
    6.8 - 7.5mm  42 dB (Rw)  46 dB (Rw)  48 dB (Rw)
    8 - 10mm  43 dB (Rw)  47 dB (Rw)  49 dB (Rw)
    10.8 - 12mm  44 dB (Rw)  48 dB (Rw)  50 dB (Rw)
     Safer The Series 41 window fitted with a concealed and secure multi-point locking system is a Police preferred specification under the Secured by Design initiative. Higher levels of intruder protection are achieved by using thicker anti-bandit laminate glass. These specifications will also provide more significant levels of blast protection.

    SECURITY PERFORMANCE (MAXIMUM ACHIEVABLE, CONTACT SELECTAGLAZE FOR SPECIFICATION REQUIREMENTS)

      TEST STANDARD
    INTRUDER Secured by Design (accredited police preferred product)
    BLAST ISO 16933 EXV 33 (single side hung only)
    BALLISTIC N/A
    FIRE N/A

  • Styles available

    • Side Hung Casement
    • Double Side Hung Casement
    • Top Hung Casement
    • Bottom Hung Casement
    • Stable Door Casement
    • Curved Casement 1
    • Curved Casement 2
    • Curved Casement 3
    • Curved Casement 4
    • Curved Casement 5

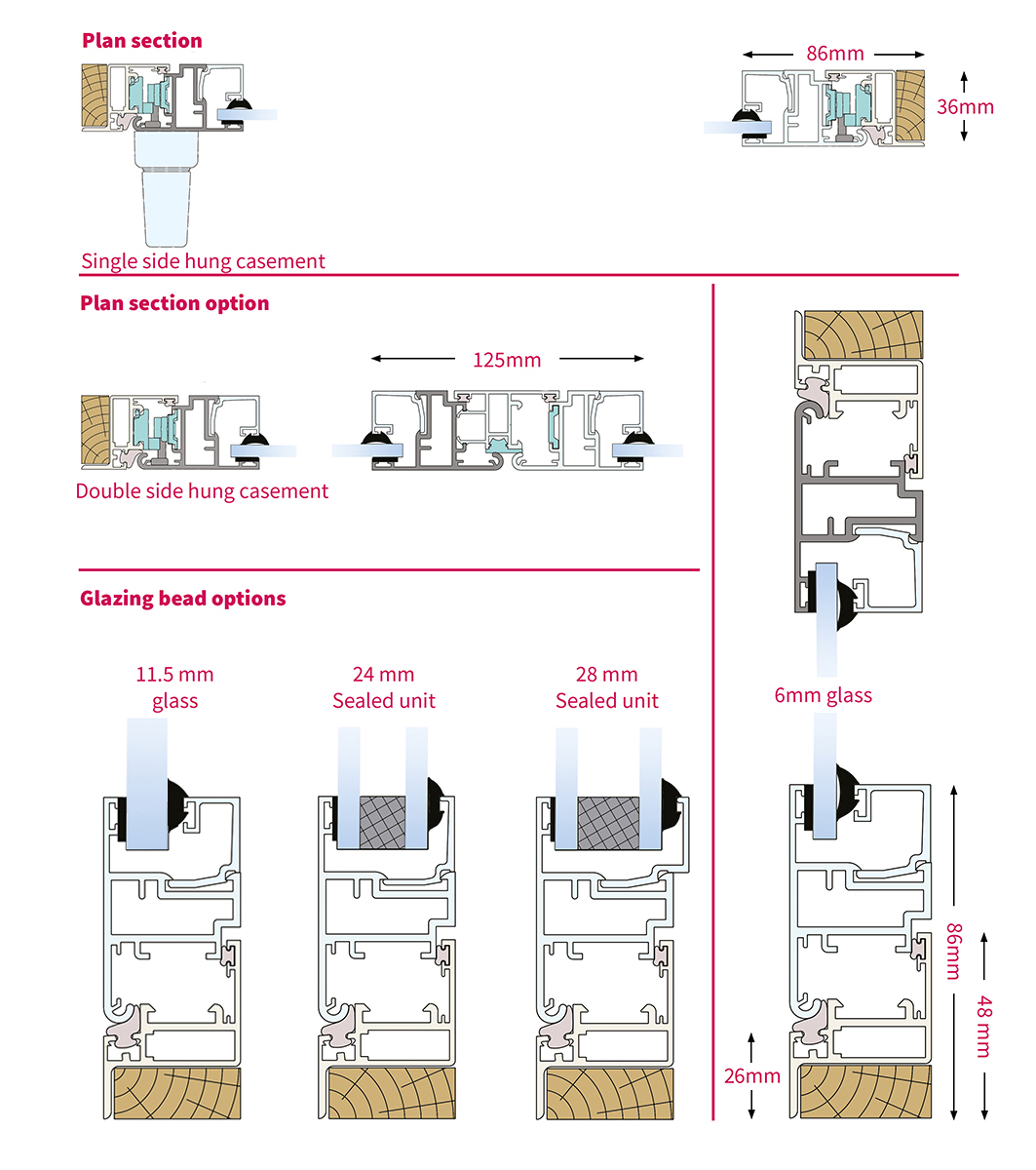

    Section diagrams
